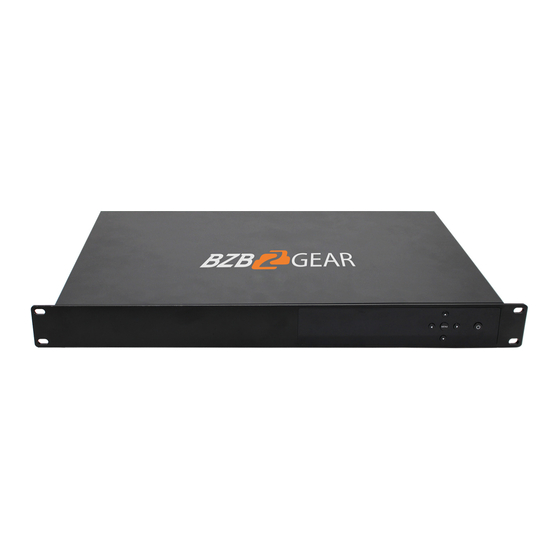

6×6 HDMI 18Gbps over
HDBaseT™ Matrix
with Audio Matrixing
Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this
manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lightning strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Advertisement
Related Manuals for BZB Gear BZ-UHD-66M70-ARC
Summary of Contents for BZB Gear BZ-UHD-66M70-ARC
- Page 1 6×6 HDMI 18Gbps over HDBaseT™ Matrix with Audio Matrixing Thank you for purchasing this product For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference. Surge protection device recommended This product contains sensitive electrical components that may be damaged by electrical spikes, surges, electric shock, lightning strikes, etc.
- Page 2 Table of Contents Introduction Features Package Contents Specifications Operation Controls and Functions Connection Diagram • Introduction The 6x6 HDMI/HDBaseT matrix supports the transmission of video (resolutions up to 4K2K@60Hz 4:4:4, HDCP 2.2, HDMI2.0) and multi-channel digital audio from 6 HDMI sources to 4 HDBaseT outputs and 2 independent HDMI 2.0 outputs.
- Page 3 management supported • 24V POC on all HDBaseT ports • Control is via on-panel Button, IR, RS-232, Telnet and Web GUI • 1U rack mounted design with aluminum front panel housing • Package Contents • 1 x 6x6 Matrix Unit •...
- Page 4 2x Optical Audio In [S/PDIF] 2x Coaxial Audio In[S/PDIF] 8x IR In [3.5mm Stereo Mini-jack] 4x RS-232 [3pin Phoenix Jack] 1x TCP/IP[RJ45] Outputs 2x HDMI Type A [19-pin female] 4x HDBaseT Out [RJ45] 6x L/R Audio Out [3.5mm Stereo Mini-jack] 6x Optical Out [S/PDIF] 7x IR Out[3.5mm Stereo Mini-jack] Mechanical...
- Page 5 showed in the below table, you can press “Right” buttons into the EDID table and press "Up" or "Down" buttons to select your chosen EDID, then you press "Right" button into which selected inputs page and press "Up" or "Down" to select which inputs copied the chosen EDID , pressing the “Menu”...
- Page 6 Copy EDID from HDMI output C Copy EDID from HDMI output D Copy EDID from HDMI output E Copy EDID from HDMI output F • PTP Set: On the initial OLED display you can press “Menu” button to enter Setup Menu page. You can press the "Up" or "Down"...
- Page 7 matrix. 5. Bi-Colors LED: The LED indicates the matrix status, Red color indicates the matrix in standby mode and Green color indicates the matrix under normal working. • Rear Panel • HDMI In: Connect to HDMI source devices such as Blu- ray DVD or PS4.
- Page 8 projector. • IR IN: Connect to an IR receiver cable and the IR signal transmits through the HDBaseT receiver to HDBaseT transmitter. • IR OUT: Connect to an IR Blaster cable and the IR signal transmits from matrix IR In. •...
- Page 9 B. IR EXT: This port is used for controlling the matrix self. C. IR ALL IN: This port is used for all HDBaseT Receiver IR out It means that IR ALL IN port signal can be output from all HDBaseT receiver's IR out D.
- Page 10 We believe everyone deserves to see, hear, and feel the advancements made in today’s AV world without having to break the bank. BZB Gear is the solution for small to medium-sized applications requiring the latest professional products in AV.
- Page 11 Warranty Information BZB Gear | Second Year Assurance BZB Gear wants to assure you peace of mind. We're so confident in the quality of our products that along with the manufacturer's one-year limited warranty, we are offering free second-year warranty coverage upon...
