4 Connecting the router

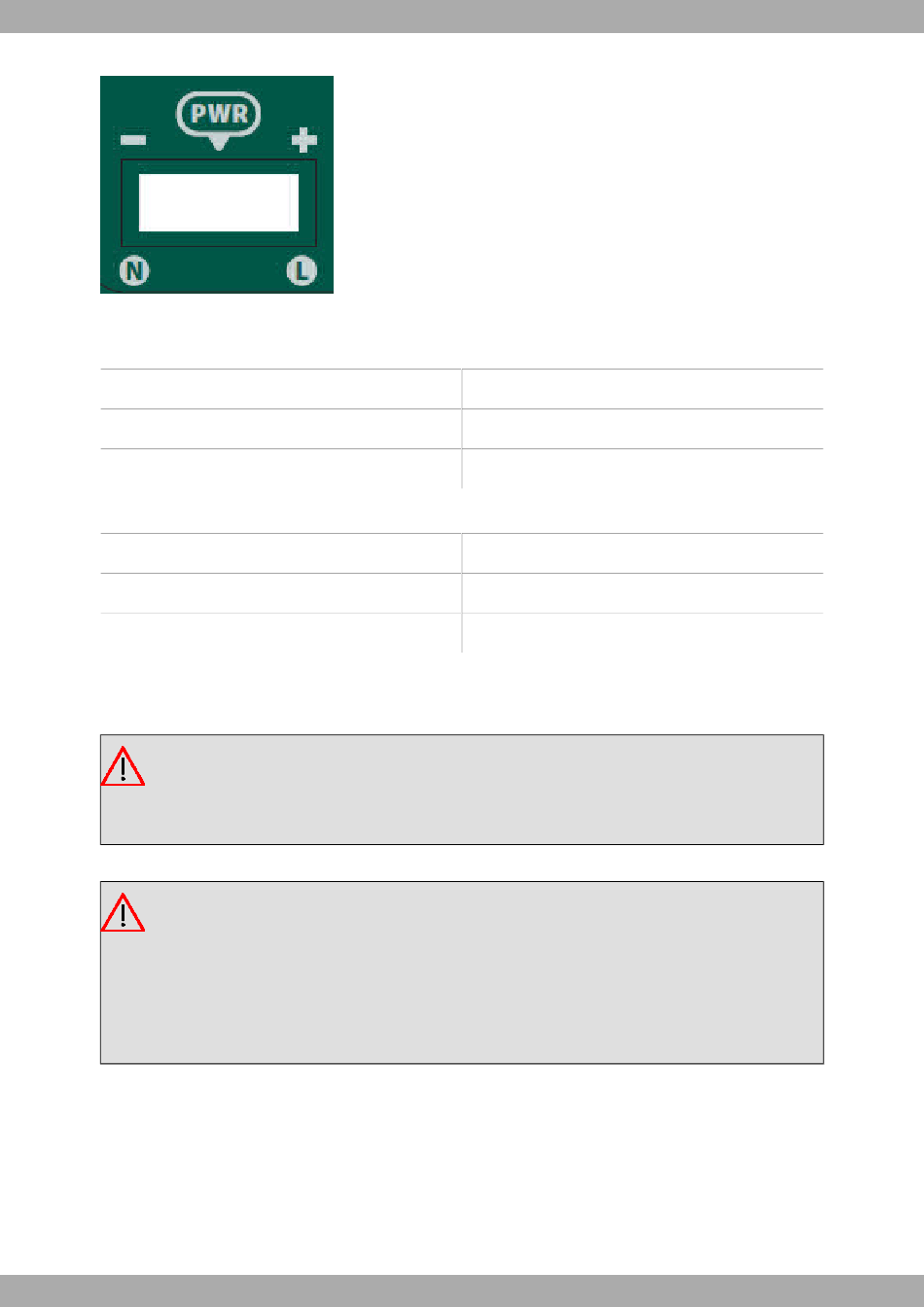

Power Supply Connector detail
Fig. 15:
4.1.1.1 DC-powered device
PIN
-
+
4.1.1.2 AC-powered device
PIN
N
L

4.1.2 Power Connector cable

Warning
The power cable is not supplied with the router. The estimated peak consumption for 230V AC opera-
tion is of 100 mA. Any cable with a gauge greater than, or equal to, a 0.75 mm2 section (AWG18 con-
ductor) and approved by IEC 60227 is acceptable.
Warning
All interconnected communication devices should be plugged to THE SAME GROUNDED POWER
OUTLET, which should at the same time be of good quality (lower than 10 ohms).
Whether the workplace is provided with an uninterrupted power supply system (UPS), regulated supply
or it is independent from the rest (such as lighting, etc.); it is highly recommended that all data devices
should be connected to the same power source. This will avoid operating and premature aging prob-
lems of drivers and other components.
20
Signal
- V DC
+ V DC
Signal
Neutral
Phase
