HUBBCOM GSC1100/GSC2100 Dual-Port DT/WM Smart Controllers

Activation

HUBBCOM smart controllers
require activation on first power-on
and after installing any purchased
upgrades. Activate a smart
controller with or without the
presence of a DHCP server.
The GUDA is available on GAI-
Tronics' website at
https://www.gai-tronics.com.
GUDA software. Refer to Pub. 42004-551 for information on HUBBCOM smart controller parameters
(see the Reference Documents section).

Activation with DHCP

1. Complete all installation steps for the HUBBCOM smart controller.
2. Apply power to the
HUBBCOM smart controller.
The HUBBCOM smart
controller takes 40–50 seconds
to boot to the device activation
screen (see Figure 5). The
screen may flicker several
times during boot-up.
3. Touch the screen in the
A K
field to
CTIVATION EY
display the onscreen keyboard.
4. Enter the device key provided
on the smart controller's activation label (see Figure 6 and Figure 7).
5. Press the S A
UBMIT CTIVATION
The HUBBCOM smart controller reboots to activate. The smart controller takes 40–50 seconds to
reboot. The screen may flicker several times during boot-up.
Upon reboot: smart controllers with the telephone option will display the D
I
screen (see Figure 8); smart controllers without the telephone option will boot to the
NCOMPLETE
home screen.
Figure 7. Device License Key Entered
6. Use the GUDA to complete the configuration of the HUBBCOM smart controller.
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-532E.docx
11/20

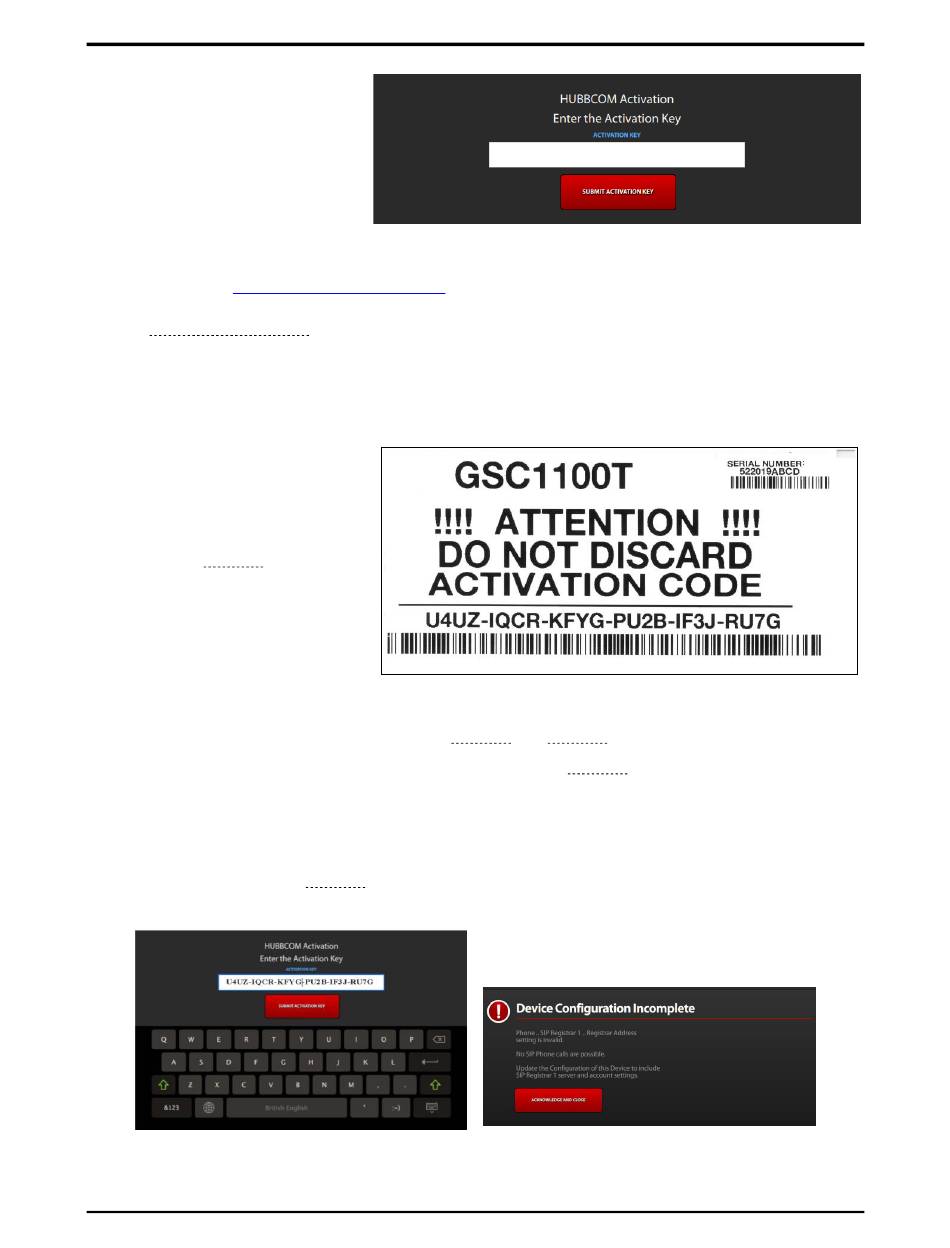

Figure 5. HUBBCOM Device Activation Screen
Refer to Pub. 42004-531 for information on using the
Figure 6. Device Activation Label
K
button on the screen (see Figure 7).
EY
EVICE
Figure 8. Activation Complete
Pub. 42004-532E
Page 8 of 10
C
ONFIGURATION
