HUBBCOM™ GSC3100/GSC4100 Dual-Port Flush-Mount Smart Controllers

24 V DC Power

Use external 24 V dc power in place of POE (optional) or for smart controllers with external speaker
hook-ups (required). Complete the following steps to terminate the 24 V dc power source to the smart
controller:
1. Install appropriately sized ferrules onto the wire ends.
2. Insert each wire into the correct quick release terminal (see Table 3).

Antenna

Use the provided SMA (Sub-Miniature connector A) coaxial connector to connect an antenna.
N : Connecting a HUBBCOM smart controller via WiFi disables the secondary Ethernet port.
OTE
N : Use a customer-supplied antenna in flush-mount installations. FCC, IC, ETSI/CE, and TELEC
OTE
Certified with PCB, Dipole, Chip, and PIFA Antennae. GAI-Tronics Kit No. 12840-001
(purchased separately) meets the antenna requirements.

Activation

HUBBCOM smart controllers
require activation on first power-on
and after installing any purchased
upgrades. Activate a smart
controller with or without the
presence of a DHCP server.
The GUDA is available on GAI-
Tronics' website at
https://www.gai-tronics.com.
GUDA software. Refer to Pub. 42004-551 for information on HUBBCOM smart controller parameters
(see the Reference Documents section).

Activation with DHCP

1. Complete all installation steps for the HUBBCOM smart controller.
2. Apply power to the HUBBCOM smart controller.
The HUBBCOM smart controller takes 40–50 seconds to boot to the device activation screen (see
Figure 4). The screen may flicker several times during boot-up.
3. Touch the screen in the A
4. Enter the device key provided on the smart controller's activation label (see Figure 5 and Figure 6).
5. Press the S A
UBMIT CTIVATION
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-533F.docx
11/20
Table 3. Terminal Block TB3—24 V DC Power
Purpose
24 V dc Positive
Ground

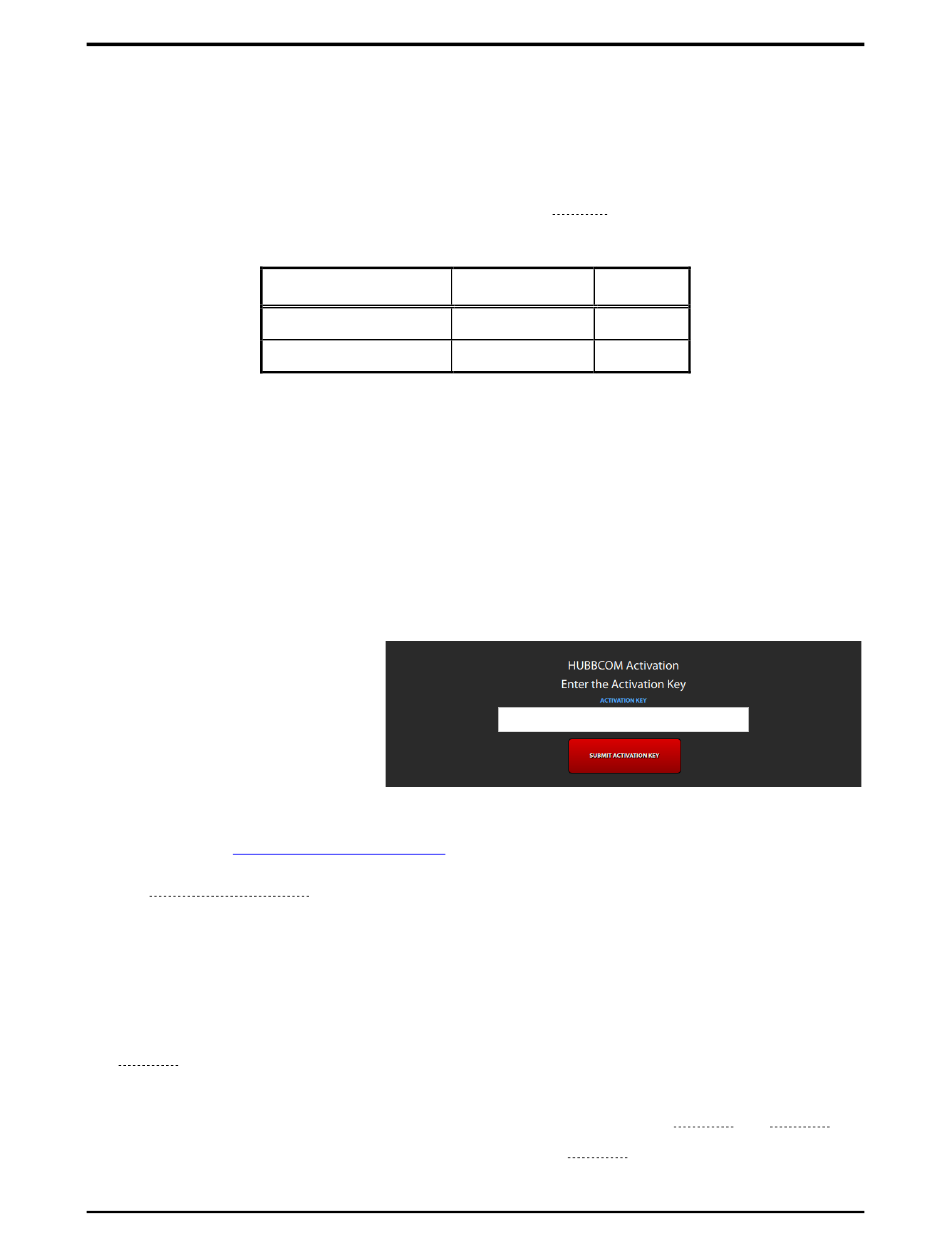

Figure 4. HUBBCOM smart controller Activation Screen
K
field to display the onscreen keyboard.
CTIVATION EY
K button on the screen (see Figure 6).
EY
Pin Label
+24V
TB3-1
TB3-2 GND
Refer to Pub. 42004-531 for information on using the
Pub. 42004-533F
Page 7 of 10
