Hubbell NX Distributed Intelligence NXRCFX Series Installation Instructions

PRECAUTIONS

When using electrical equipment, basic safety precautions should always be followed including the following:
Read and understand all instructions before beginning installation.
NOTICE: For installation by a licensed electrician in accordance with National and/or Local Electrical Codes and the provided following instructions.
CAUTION: RISK OF ELECTRICAL SHOCK. Turn power off at service panel before beginning installation of device. Never wire energized electrical
components.
Disconnect switch or a circuit breaker must be provided and marked as the disconnecting device.
Disconnect switch / circuit breaker must be within reach of operator.
CAUTION: USE COPPER CONDUCTOR ONLY.
Confirm device ratings are suitable for application prior to installation. Use of device in applications beyond its specified ratings or in applications
other than its intended use may cause an unsafe condition and will void manufacturer's warranty.
NOTICE: DO NOT INSTALL IF PRODUCT APPEARS TO BE DAMAGED.
NOTICE: Do not use outdoors.
NOTICE: Do not mount near gas or electric heaters.
NOTICE: Do not use this equipment for other than its intended use.
SAVE THESE INSTRUCTIONS AND PROVIDE TO OWNER AFTER INSTALLATION IS COMPLETED

DESCRIPTION

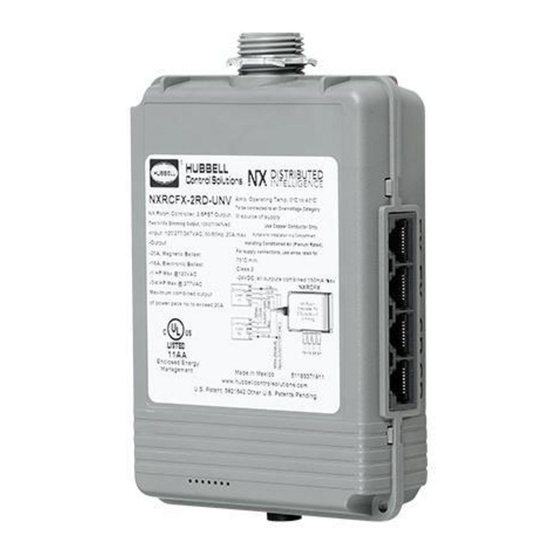

Hubbell Control Solutions' NXRCFX Room Controller is a self-contained intelligent power pack. The NXRCFX contains one or two independently
controlled outputs and one or two independently controlled 0-10VDC dimming channels for dimmable ballasts or LED drivers. The NXRCFX also
features two dedicated zone segment buses (FX Bus) optimized for use with NX enabled in-fixture devices and digital sensors. Two additional
SmartPORTs™ are also provided for plug and play support of NX occupancy sensors, daylight sensors, wall stations and accessory devices. The
NXRCFX Room Controller can operate in either stand alone or networked applications with other NX room control or network devices.

SPECIFICATIONS

MOUNTING
• Mounts directly to an external junction box
through an extended 1/2" chase nipple
ELECTRICAL
Input:
• 120/277/347VAC, 20A Max, 50/60 Hz
• Single feed connection regardless of one
or two relays
Output :
1
• 20A, Tungsten, 120VAC only
• 20A, Magnetic Ballast
• 16A, Electronic Ballast
• 1 H.P. Motor @120V, 3/4 H.P. @277V; 1/2
H.P.@347V
Low Voltage Ports:
• Class 2
• 24VDC, 250mA MAX (all outputs com-
bined)
• RS485 digital communication
Copyright © 2020 Hubbell Control Solutions, a division of Hubbell Lighting, Inc. All rights reserved. All product and company names, logos and product
identifiers are trademarks ™ or registered trademarks ® of Hubbell Lighting, Inc. or their respective owners. Use of them does not necessarily imply any
1
™
IMPORTANT SAFEGUARDS
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
ELECTRICAL (CONTINUED)
Standby Power (W):
• 120VAC: 1.2W
• 277VAC: 1.5W
• 347VAC: 1.5W
Dimming
• Class 2/Class 1
• Installation as Class 1 requires 600 volt
insulation on dimming conductors sharing
a conduit with line voltage conductors
Power Metering :
2
• NXRC devices are factory calibrated to
provide power metering accuracy of +/-
5% (Rating assumes standard load within
specified voltage and temperature rating
for NXRC; all values provided in Watts)
OPERATING ENVIRONMENT
• Operating temperature: 32° to 104°F
(0° to 40°C)
• Relative humidity (non-condensing):
0% to 95%
701 Millennium Blvd. | Greenville, SC 29607 | (864) 678-1000 | www.hubbellcontrolsolutions.com
affiliation with or endorsement by such respective owners.
NXRCFX Room Controller
Installation INSTRUCTIONS
CERTIFICATIONS
• Conforms with UL916 and Certified to CAN/
CSA C22.2 No. 205-M1983
• IC Approved
• Title 24 compliance
WARRANTY
• 5 year limited warranty
• See HCS Standard Warranty
additional information
1
1 For (2) relay models the maximum combined output of
both relays: 20A
2 Power metering only available with NXRC2-1RD-UNV and
NXRC2-2RD-UNV options)
for
72-00655
3510B 082520
