Surface mounting with toggle bolts or wall anchors:

1. Orient the support bracket on the wall with the small flanges on top and the large flanges on the
bottom.
Suggested mounting height is 48 inches from the floor to the bottom of the mounting bracket.
2. Mark the locations (C) for the four wall anchors or toggle bolts (not included) and the area in the
center of the bracket where the cable(s) come through the wall using the support bracket as a template
(see Figure 3).
3. Drill the necessary holes for the toggle bolts or wall anchors and cut or drill a hole in the center area
for the smart controller's cables.
4. Attach the mounting bracket to the wall using toggle bolts or wall anchors (not included).
5. Bring the cable(s) out through the support bracket center cutout.
6. Remove and discard the cable termination cover from the back of the unit.
7. Remove the two #8 × ½-inch mounting bracket screws from the bottom of the rear panel and set aside
(see Figure 4).
8. Complete all necessary cable terminations (see the Wiring section).
9. With the proper orientation for the unit's configuration, angle the unit to hook it onto the top flange
brackets (D-D or E-E, see Figure 4), then rotate and slide it downward until it rests on the mounting
bracket.
10. Secure the unit to the support bracket using the two #8 × ½-inch screws previously removed by
screwing them up into the unit's chassis through the holes in the bottom flanges.
P:\Standard IOMs - Current Release\42004 Instr. Manuals\42004-532E.docx
11/20

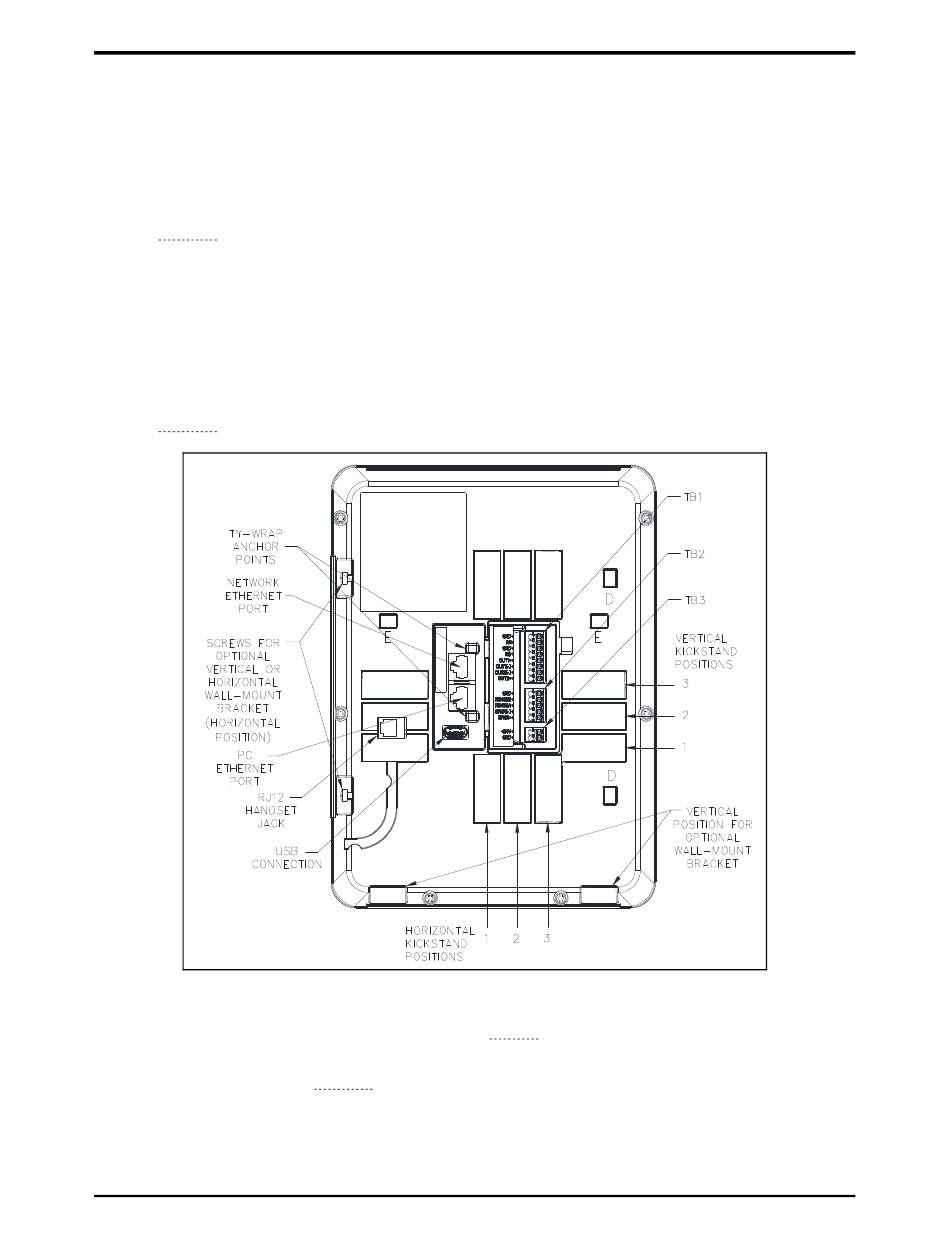

Figure 4. HUBBCOM Smart Controller—Rear View
