Confidentiality Notice .....................................................................................................................1
General Information .......................................................................................................................1
Important Safety Instructions .........................................................................................................1
Installation ......................................................................................................................................3
Desktop Units .......................................................................................................................................... 3
Wall Mounting ........................................................................................................................................ 4
Single or double gang electrical box mounting: ................................................................................... 4
Surface mounting with toggle bolts or wall anchors: ............................................................................ 5
Wiring ...................................................................................................................................................... 6
Handset ................................................................................................................................................. 6
RTU Input/Output ................................................................................................................................. 6
RS-485 and External Speaker Connections .......................................................................................... 6
Ethernet ................................................................................................................................................. 7
24 V DC Power ..................................................................................................................................... 7
Antenna ................................................................................................................................................. 7
Activation .........................................................................................................................................8
Activation with DHCP ............................................................................................................................ 8
Activation without DHCP ...................................................................................................................... 9
Service and Spare Parts ................................................................................................................10
Reference Documents ...................................................................................................................10
Specifications ................................................................................................................................10
Approvals .......................................................................................................................................10
GAI-Tronics 3030 Kutztown Road Reading, PA 19605 USA
610-777-1374 ◼ 800-492-1212 ◼ Fax: 610-796-5954
V
ISIT WWW
G A I - T R O N I C S
A H U B B E L L C O M P A N Y
™
T
C
A B L E O F
.
-
.
GAI
TRONICS
COM FOR PRODUCT LITERATURE AND MANUALS
®
O N T E N T S
Pub. 42004-532E
Advertisement
Table of Contents
Related Manuals for Hubbell GAI-Tronics HUBBCOM GSC1100
Summary of Contents for Hubbell GAI-Tronics HUBBCOM GSC1100
-
Page 1: Table Of Contents

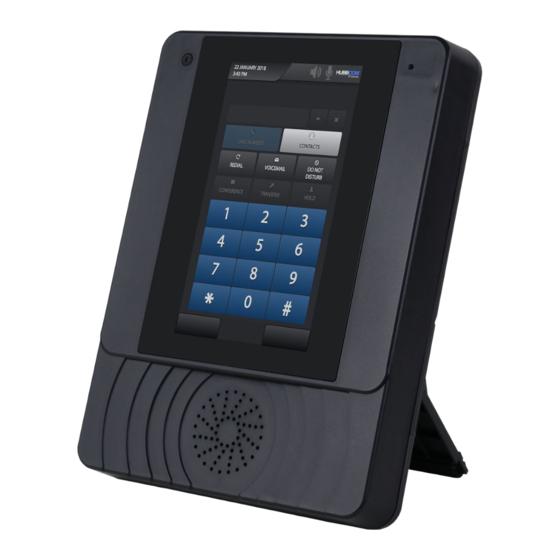

Pub. 42004-532E G A I - T R O N I C S ® A H U B B E L L C O M P A N Y HUBBCOM GSC1100/GSC2100 ™ Dual-Port DT/WM Smart Controllers A B L E O F O N T E N T S Confidentiality Notice ........................1 General Information ........................1... -
Page 2: Hubbcom ™ Gsc1100/Gsc2100
Pub. 42004-532E G A I - T R O N I C S ® A H U B B E L L C O M P A N Y HUBBCOM GSC1100/GSC2100 ™ Dual-Port DT/WM Smart Controllers Confidentiality Notice This manual is provided solely as an installation, operation, and maintenance guide and contains sensitive business and technical information that is confidential and proprietary to GAI-Tronics. - Page 3 Pub. 42004-532E ™ HUBBCOM GSC1100/GSC2100 Dual-Port DT/WM Smart Controllers Page 2 of 10 Only trained, qualified, and competent personnel must install these enclosures. Installation must comply with state and national regulations, as well as safety practices for this type of equipment. WARNING —Use only 24 V dc power supplies that conform to UL/CSA/CE Class II, Double Insulated supplies with over voltage and short circuit protection.
-
Page 4: Installation
Pub. 42004-532E HUBBCOM ™ GSC1100/GSC2100 Dual-Port DT/WM Smart Controllers Page 3 of 10 Installation Mount the HUBBCOM Model GSC1100 or Model GSC2100 to a wall or use them as desktop units. : HUBBCOM devices require access to an SNTP (simple network time protocol) server. Figure 1. -
Page 5: Wall Mounting
Pub. 42004-532E HUBBCOM ™ GSC1100/GSC2100 Dual-Port DT/WM Smart Controllers Page 4 of 10 Table 1. Smart Controller Kickstand Positions Orientation/ Horizontal Vertical Position (Models GSC1100 & GSC2100) (Model GSC2100) 1 (flange up) 75° 75° 2 (flange up) 60° 60° 2 (flange down) 45°... -
Page 6: Surface Mounting With Toggle Bolts Or Wall Anchors
Pub. 42004-532E HUBBCOM ™ GSC1100/GSC2100 Dual-Port DT/WM Smart Controllers Page 5 of 10 Surface mounting with toggle bolts or wall anchors: 1. Orient the support bracket on the wall with the small flanges on top and the large flanges on the bottom. -
Page 7: Wiring
Pub. 42004-532E ™ HUBBCOM GSC1100/GSC2100 Dual-Port DT/WM Smart Controllers Page 6 of 10 Wiring HUBBCOM smart controllers have quick release terminal blocks that accept 18–24 AWG wires. Release wires from the terminal block by pressing the quick release button above the terminal. : Two clamp on ferrite cores are supplied with the unit. -
Page 8: Ethernet
Pub. 42004-532E ™ HUBBCOM GSC1100/GSC2100 Dual-Port DT/WM Smart Controllers Page 7 of 10 Table 3. Terminal Block TB2—RS-485 and External Speaker Purpose Term-Block Pin Label RS485 Ground TB2-1 RS485B RS485 B TB2-2 RS485A RS485 A TB2-3 External Speaker − SPKR− TB2-4 SPKR+ External Speaker +... -
Page 9: Activation
Pub. 42004-532E ™ HUBBCOM GSC1100/GSC2100 Dual-Port DT/WM Smart Controllers Page 8 of 10 Activation HUBBCOM smart controllers require activation on first power-on and after installing any purchased upgrades. Activate a smart controller with or without the presence of a DHCP server. Figure 5. -
Page 10: Activation Without Dhcp
Pub. 42004-532E ™ HUBBCOM GSC1100/GSC2100 Dual-Port DT/WM Smart Controllers Page 9 of 10 : Enter additional station parameters while activating the smart controller to save time. The smart controller accepts and sets all entered parameters regardless of correct activation code entry. -
Page 11: Service And Spare Parts
Pub. 42004-532E ™ HUBBCOM GSC1100/GSC2100 Dual-Port DT/WM Smart Controllers Page 10 of 10 17. Use the GUDA to complete the configuration of the HUBBCOM smart controller. : Enter additional station parameters while activating the smart controller to save time. The smart controller accepts and sets all entered parameters regardless of correct activation code entry. - Page 12 Warranty Equipment. GAI-Tronics warrants for a period of one (1) year from the date of shipment, that any GAI-Tronics equipment supplied hereunder shall be free of defects in material and workmanship, shall comply with the then-current product specifications and product literature, and if applicable, shall be fit for the purpose specified in the agreed upon quotation or proposal document.
