In This Guide

This guide contains instructions for installing the Keysight N5470A Rack Mount
Kit. The rack mount kit provides a support shelf and hardware for mounting
Infiniium 90000 Series, 90000 X-Series, and V-Series oscilloscopes into Electronic
Industries Association (EIA) standard 19-inch (487-mm) rack cabinets.

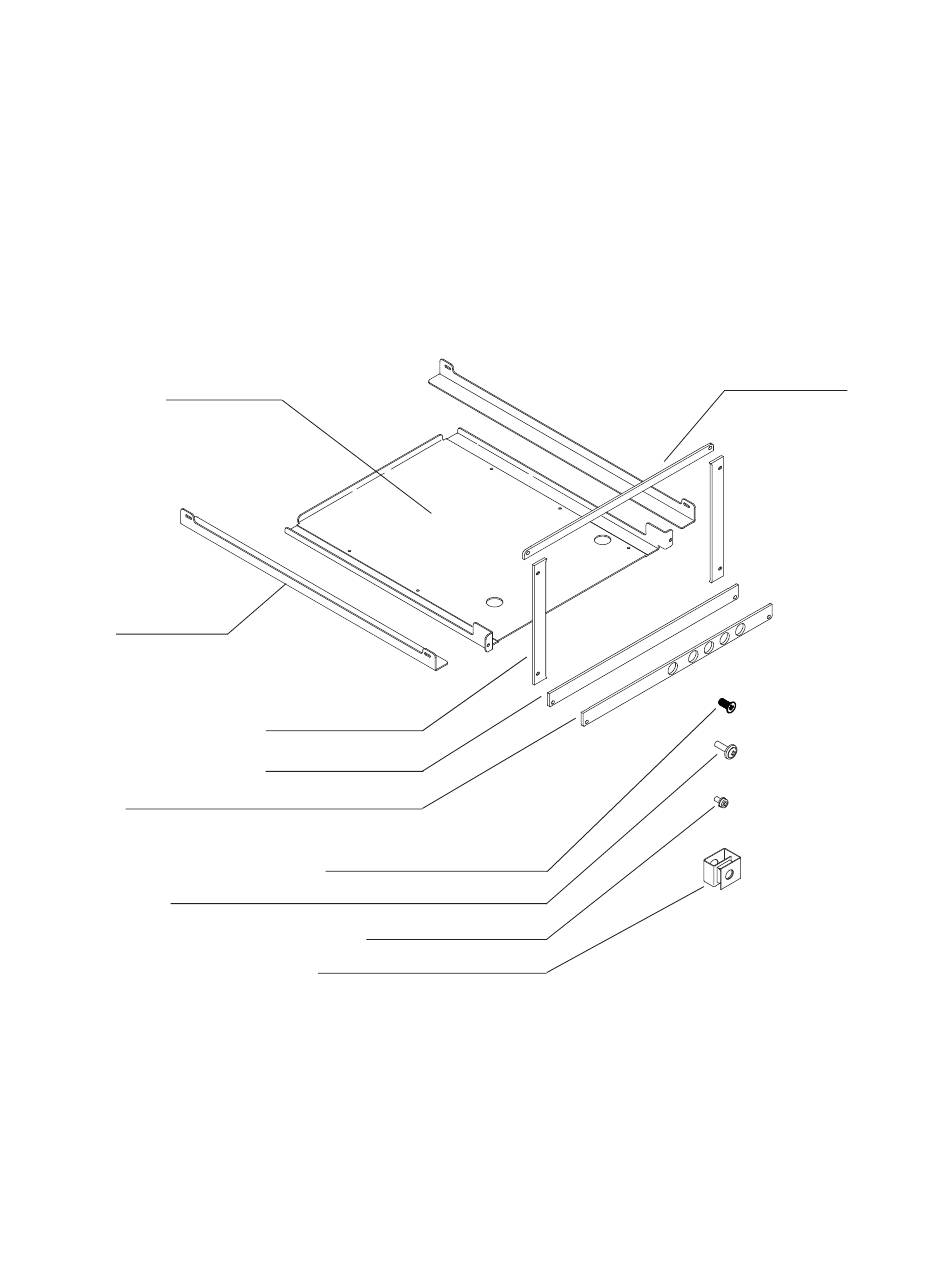

Included parts

The rack mount kit includes the following parts:
Support tray
Support tray Support tray
Track rail (2)
Track rail (2) Track rail (2)
Trim plate bottom with access holes
Trim plate bottom with access holes Trim plate bottom with access holes
10-32 Pan head screw with nylon washer (8)
10-32 Pan head screw with nylon washer (8)
10-32 Pan head screw with nylon washer (8)
N5470A Rack Mount Kit
Trim plate side (2)
Trim plate side (2) Trim plate side (2)
Trim plate bottom
Trim plate bottom
Trim plate bottom
10-32 Pan head screw (4)
10-32 Flat head screw (4) 10-32 Flat head screw (4)
T20 TORX screw (6)
T20 TORX screw (6) T20 TORX screw (6)
10-32 Sheet metal nut (12)
10-32 Sheet metal nut (12) 10-32 Sheet metal nut (12)
Trim plate top
Trim plate top Trim plate top
Hardware enlarged
Hardware enlarged
Hardware enlarged
for clarity
for clarity for clarity
3
