Keysight Y1215A Rack Mount Kit
Installation
This installation note contains procedures for installing the Y1215A Rack Mount
Kit for the Keysight M9018A 18-slot PXIe Chassis in a standard EIA rack.

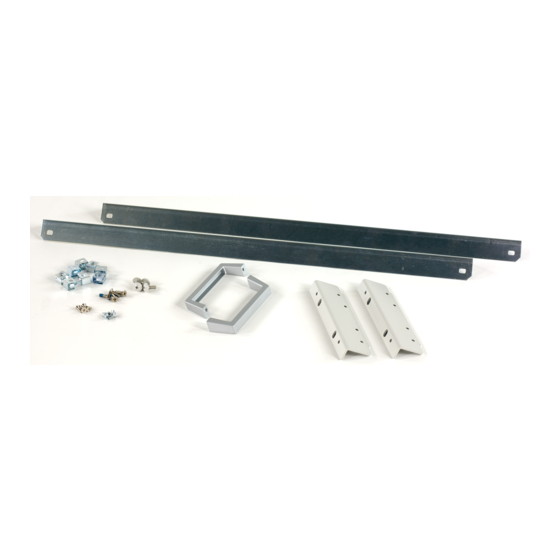

Parts List

The parts included with each rack mount adapter option and the support rail are
shown in the following table:

General Guidelines

In rack mounting the chassis, follow these guidelines:
1 Always begin installing the chassis and heavy instruments at the bottom of
the rack and work up. This maintains a lower center of gravity and reduces the
possibility of the rack tipping.
2 Anti-tipping feet, if available with the rack, should always be extended.
3 The heaviest instrument of chassis should always be mounted at the bottom
of the rack.
4 For maximum cooling and optimum rack thermal efficiency, place the
instrument or chassis with the greatest power consumption towards the top of
the rack. This promotes efficient cooling since heat rises when placed nearer
to the top of the rack, high power instruments will not unnecessarily heat
other instruments. However, in doing this, do not violate the guideline that
the heaviest instruments should be placed at the bottom of the rack.
5 If instruments or modules in the chassis are consuming maximum power, 1U
of rack space is required for ventilation below the M9018A chassis.
Quantity
1 kit Rack Flange and Handles Kit
includes quantity 8, Rack Flange Screws,
M4x10 Flat Head
1 kit Support Rails
8 Channel Nuts (4 for support rail-to-rack, 4 for
rack flanges)
4 Support Rail-to-Rack Screws - 10-32 x 0.5
4 Dress Screws for Rack Flanges
Description Part Number
M9018-00020
M9018-00001
0590-0804
2680-0278
E9900-06001
1
