- Page 1 Keysight N8900 Series Prewired Rack System Installation Guide...
-
Page 3: Legal Notices
THE MATERIAL CONTAINED IN THIS Copyright Notice software,” as defined by Federal DOCUMENT IS PROVIDED “AS IS,” AND IS © Keysight Technologies 2015 Acquisition Regulation (“FAR”) 2.101. SUBJECT TO BEING CHANGED, WITHOUT Pursuant to FAR 12.212 and 27.405-3 NOTICE, IN FUTURE EDITIONS. FURTHER,... -
Page 4: Safety Notices
Safety Notices Leakage Current Environmental Conditions The following general safety precautions Do not operate the equipment in the WARNING must be observed during all phases of presence of flammable gases or fumes. operation of this instrument. Failure to Due to types of products that can be Environmental conditions are described comply with these precautions or with installed in this cabinet, there is a risk of... -
Page 5: Table Of Contents
Contents Legal Notices ......................... 3 Safety Notices ........................ 4 Contents ........................5 1 - Introduction ......................7 Rack Models ..................8 Rack Characteristics ................. 8 Common Characteristics ..............11 2 - Site Preparation ..................... 13 Site Accessibility ................14 Site Requirements ................15 3 - Unpacking ...................... -
Page 7: Introduction

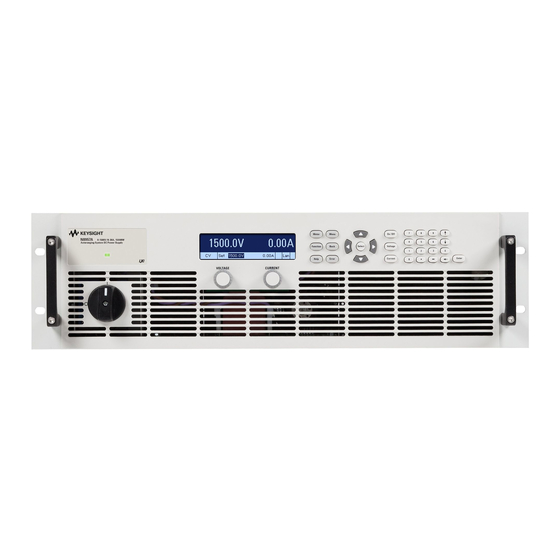

Rack Models ..................8 Rack Characteristics ................. 8 Common Characteristics ..............11 The Keysight N8900 Series Rack System is shipped without the Keysight N8900 Series Autoranging DC Power Supplies, which must be ordered separately. You can install up to six 15-kW N8900 power supplies in the prewired rack in parallel –... -
Page 8: Rack Models
Introduction Rack Models Rack Models AC Input Supported Models Maximum Voltage Maximum Current (with 6 units) Keysight N89201A 208 VAC Up to 6 - N8931A 80 V 3060 A 3 phase Up to 6 - N8932A 200 V 1260 A Keysight N89202A 208 VAC Up to 6 - N8934A... - Page 9 Introduction Characteristics Number of Units in Parallel N8932A/N8952A Output ripple & noise CV peak-to-peak: 740/600 mV Load Effect Voltage: 100 mV 100 mV 100 mV 100 mV 100 mV Current: 0.063 A 0.945 A 1.26 A 1.58 A 1.89 A Current programming &...
- Page 10 Introduction Characteristics Number of Units in Parallel N8935A/N8955A Output ripple & noise CV peak-to-peak: 1.6 V Load Effect Voltage: 375 mV 375 mV 375 mV 375 mV 375 mV Current: 190 mA 270 mA 360 mA 450 mA 540 mA Current programming &...
-
Page 11: Common Characteristics
Introduction Common Characteristics Characteristics All Models Computer Interfaces LXI Core 201: 10/100 Base-T Ethernet (Sockets, VXI-11 protocol, Web user interface) USB: USB 2.0 (USB-TMC488) GPIB: GPIB IEEE 488 Language: SCPI - 1993, IEEE 488.2 compliant Environmental Conditions Operating environment: Indoor use, installation category II (for AC input), pollution degree 2 Temperature range: 0°C to 45°C Relative humidity:... -
Page 13: Site Preparation
Site Preparation Site Accessibility ................14 Site Requirements ................15... -
Page 14: Site Accessibility
Site Preparation Site Accessibility Customer’s Responsibility It is the customer's responsibility to: 1. Prepare the installation site in accordance with the instructions in this guide (see Site Requirements). 2. Move all of the equipment from the receiving area to the installation site. -
Page 15: Site Requirements
(36 inches) of space at the front and back of the cabinet for adequate air circulation. KeysIght N8900 Series Rack Systems generate up to 90 kW of power, NOTE which is consumed by the DUT. Ensure that there is enough air circulation or air conditioning at the installation site to remove any excess heat generated by the DUT. - Page 16 Site Preparation Power Requirements This section indicates the electrical requirements of your rack system. It is assumed that you have conducted tests to determine that the NOTE voltage fluctuations throughout the day are within the range indicated for your rack system. If there is greater voltage fluctuation than what is indicated in the table, provisions must be made for voltage regulation.
-
Page 17: Unpacking
Unpacking Instructions ..............18 Moving the Rack Cabinet ............... 20 When you receive your N8900 Series Rack System, inspect it for any obvious damage that may have occurred during shipment. If there is damage, notify the shipping carrier and nearest Keysight Sales and Support Office immediately. -
Page 18: Items Supplied
Unpacking Items Supplied After you have unpacked the rack system, check that you have received the following items. These should be packed inside the cabinet. Item Description Part Number Installation This document 5991-3411 Guide Other Functional test certificate Documentation China RoHS addendum Safety information booklet Rack packing List Hardware kit -... -
Page 19: Unpacking Instructions
Unpacking Unpacking Instructions WARNING Wear safety goggles and gloves when unpacking the rack system. Complete unpacking instructions are provided in a separate document that is attached to the shipping crate. Briefly, unpacking involves the following steps: 1. Use the appropriate tools to disassemble the shipping crate. 2. -
Page 20: Moving The Rack Cabinet
Unpacking Moving the Rack Cabinet The rack system includes casters that pivot so that the cabinet can easily be maneuvered into position. Make sure that the two casters located at the front of the cabinet are unlocked. When moving the cabinet, move slowly and use extreme care to prevent WARNING the casters jamming on debris, in seams, or in cracks in the floor surface. -
Page 21: Assembly
Connect the AC input ..............27 Connect the Communications Cables ........... 28 Connect the Output Cables ............30 Complete the Installation ............... 31 This section describes the steps required to assemble your Keysight N8900 Series Rack System. Please observe all relevant Warnings and Cautions. -
Page 22: Connect The Ac Mains
Assembly Connect the AC Mains SHOCK HAZARD. Make sure that the AC mains cables are NOT WARNING connected to the AC mains. Only connect the AC mains cables to the AC mains as the final step in the installation procedure. Install the AC mains cables into the cabinet first - before you install the power supplies or make any other connections. -
Page 23: Install The Power Supplies
Assembly Install the Power Supplies Use caution when installing power supplies. Power supplies weigh as much as 78 lbs. (35.5 kg). Two people are CAUTION required when installing power supplies. Because of the unit’s weight, do not lift or move it alone. Moving by hand should be avoided where possible. -
Page 24: Install The Bus Bars
Assembly Install the Bus Bars Remove the bus bars from their storage locations High current bus bars weigh up to 28 lbs. (13 kg) each. Use caution CAUTION when lifting and moving the bus bars. Lay them down so that they do not fall. - Page 25 Assembly Because of the difference in thickness of the high-current bus bars, use the longer (40 mm) screws to connect the bottom three units. Use the shorter (30 mm) screws to connect the top three units. Once the single screws are installed, install the remaining two screws on each rear terminal.
- Page 26 Assembly 4. Once all connection screws are installed as shown in the following fugures, tighten the screws according to the following torque settings. • For the high-current bus bars, maximum torque is 9.2 lb-ft (12.4 Nm). • For the high-voltage bus bars, maximum torque is 5.4 lb-ft (7.3 Nm).
-
Page 27: Connect The Ac Input
Assembly Connect the AC input Connect the closest AC input harness to the unit. Ac input harnesses are connected to circuit breakers on the front of the cabinet. Refer to Switched and Indicators to see the breaker assignment for each AC input harness. -
Page 28: Connect The Communications Cables
Assembly Connect the Communications Cables Connect the Sharebus and Group cables 1. Connect the Sharing terminals for parallel operation using the blue sharing cables. This allows current sharing among the units. 2. Install the Group (Master/Slave) cables. These grey CAT5 cables are included in the accessory box shipped with the rack cabinet. - Page 29 Assembly Connect the computer interface cable 1. Designate which power supply will be the “master” control unit. You can designate any of the power supplies in the instrument stack as the master control unit. 2. Connect the appropriate computer interface to the power supply that will be the master control unit of the instrument stack.
-
Page 30: Connect The Output Cables
Assembly Connect the Output Cables SHOCK HAZARD All output connections must be made with the external WARNING system disconnect off, and must be performed by qualified personnel who are aware of the hazards involved. Improper actions can cause fatal injury as well as equipment damage. Ensure that the insulation rating of the output cables is greater than the voltage rating of the rack system, which may be rated up to 1,500 VDC! Attach the output cables to the attachment bolts provided at the... -
Page 31: Complete The Installation
Assembly Supported Models Maximum Maximum Current Number of Output Maximum Current Voltage (with 6 units) Cables per Bus Bar per Cable Up to 6 - N8931A 80 V 3060 A 8 x 300 mcm 383 A Up to 6 - N8932A 200 V 1260 A 4 x 4.0 AWG... - Page 32 Assembly Connect the AC input cables to the AC mains disconnect device You must have an additional disconnect device installed between the AC WARNING mains and the AC input cables of the rack system. Installation of this additional disconnect device must be done by a qualified electrician in accordance with all local electrical codes.
-
Page 33: Operation
Operation Switches and Indicators ..............34 Turn-On Checkout ................35 Computer Interfaces ............... 37 This section describes how to initially turn on the Keysight N8900 Series Rack System. This procedure can be used to provide an assurance check that all equipment is operating normally. -
Page 34: Switches And Indicators
Operation Switches and Indicators This section describes the front panel controls and indicators as identified in the figure below. Emergency Stop switch - disconnects AC to all power supplies. Does not disconnect the rack system from AC mains. Pull up on the emergency stop switch to reset the switch after an emergency stop. -
Page 35: Turn-On Checkout
Operation Turn-On Checkout Turn the Rack On HAZARDOUS VOLTAGES All power supplies generate voltages in excess WARNING of 60 VDC, with some models rated at up to 1,500 VDC! Ensure that all output connections are either insulated or covered so that no accidental contact with lethal output voltages can occur. - Page 36 Operation 4. Enable the Output. Push the On/Off key to enable the output. If a load is connected to the output, the front-panel display will indicate that it is drawing current. Otherwise, the current reading will be zero. The status indicator shows the output’s status. For example, "CV"...
-
Page 37: Computer Interfaces
Operation Computer Interfaces This section describes how to connect to the various communication interfaces on your rack system. All interface connections must be made to the power supply that has been designated as the "master" controller of all the power supplies in the rack (see Connect the Communications Cables). - Page 38 Operation If you are using a private LAN, you can leave all LAN settings as they are. Most Keysight products and most computers will automatically choose an IP address using auto-IP if a DHCP server is not present. Each assigns itself an IP address from the block 169.254.nnn.
-
Page 39: Maintenance
Troubleshooting................40 Parts List ..................41 Wiring Diagrams ................42 The Keysight N8900 Series Rack System is designed to be self- serviced. Part numbers and wiring diagrams are included in this section. If you need additional troubleshooting or parts information, contact... -
Page 40: Lock-Out Tag-Out
Maintenance Lock-Out Tag-Out The Keysight N8900 Series Rack System has locks on the front and back doors. Only authorized persons should have access to the keys. Front Door lock - The lock on the front door is designed to prevent unauthorized access to the front panel controls. -
Page 41: Parts List
Maintenance Parts List The following table documents the replaceable parts. The reference designators refer to the location of the electrical parts in the wiring diagrams. Common Parts for All Rack Systems Reference Description Quantity Part number Designator K1, K2 Emergency stop contactor 1 or 2* 5067-6535 Emergency stop switch... -
Page 42: Wiring Diagrams
Maintenance Parts for High Current Systems (N89201A, N89401A) Reference Description Quantity Part number Designator High Current Hardware kit (includes set of patch cables, screws and nuts for high- current bus bars, and front panel fixation) 5067-6070 Screw M12 x 45mm brass - for output connections 5003-2169 Nut M12 brass - for output connections... - Page 43 AC mains Terminal 4 x 95mm NSGAFÖ NSGAFÖ 50mm 16mm black black black black black black black black black ye/gn NSGAFÖU 16mm Orange-white SC2.1 1,5mm SC2.1 Bridge 1,5mm emergency stop orange orange door contact switch bottom SC2.1 orange 1,5mm Orange-white door contact switch top SC2.1 1,5mm...
- Page 44 NSGAFÖU 16mm black black black black black black crest rail 1 crest rail 2 PS3/9 PS3/9 F1...F3 F4...F6 N8951A Slave Unit 6 L1/L2/L3/ PE Sharebus wire Sharebus 2x blue 0,75mm M / S N8951A Slave Unit 5 L1/L2/L3/ PE Sharebus M / S N8951A Slave Unit 4...
- Page 45 contactor K1 AC mains frontview left terminal black. SC 2.1 6 AWG side 4 x 500kcmil black. SC 2.1 2/0 AWG Fuse F1-F3 ye/gn Orange-white SC2.1 16 AWG contactor K2 frontview right side black. SC 2.1 6 AWG Fuse F4-F6 Orange-white SC2.1 16 AWG Bridge emergency stop...
- Page 46 N8951A Slave Unit 6 L1/L2/L3/ PE black SC 2.1 6 AWG black SC 2.1 6 AWG Sharebus wire Sharebus 14PE 2x blue 20 AWG M / S 14L1 14L2 14L3 N8951A Slave Unit 5 13L1 L1/L2/L3/ PE 13L2 13L3 Sharebus 13PE M / S 12L1...
-
Page 47: Index
Index AC mains LAN connections ..........37 disconnect ..........16, 40 lock-out tag-out ..........40 assemblies replaceable ........... 41 models ............... 8 moving ............. 20 characteristics ............ 8 common ............11 connections operation AC input............27 master/slave ..........36 computer interface ........29 DC output .............
