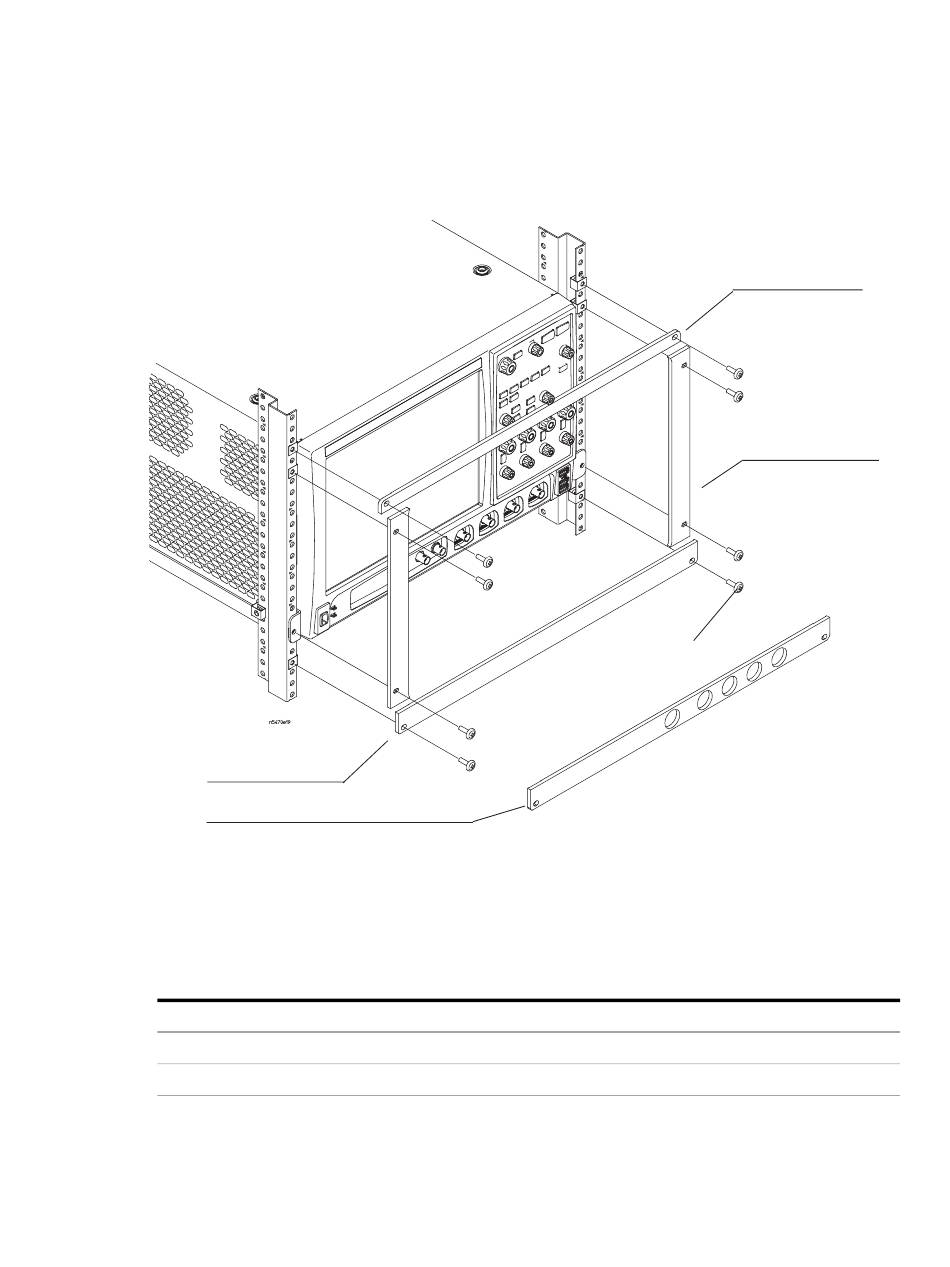

Attaching trim plates
8
Bottom trim plate
Optional bottom trim plate
The oscilloscope is now fully installed in the rack mount assembly.
Dimensions
Approximate Dimensions of Rack Mount Trim Plate Pieces
Side trim plate
• Length: 26.39 cm (10.4 in)
• Width: 3.11 cm (1.2 in)
N5470A Rack Mount Kit
Attach the trim plates using the eight 10-32 pan head screws that have nylon
washers supplied. An optional bottom trim plate with cabling egress holes is
provided.
Top trim plate
• Length: 48.26 cm (19 in) • Length: 48.26 cm (19 in)
• Width1.67 cm (0.7 in)
Screws
Bottom trim plate
• Width: 2.94 cm (1.2 in)
Top trim plate
Side trim Plates (2)
Optional bottom trim plate
• Length: 48.26 cm (19 in)
• Width: 2.94 cm (1.2 in)
