Mount the main part tubing
Step
1 A
1 B
2 A
2 B
2 C
ÄKTA ready Operating Instructions 28960345 AD
Action

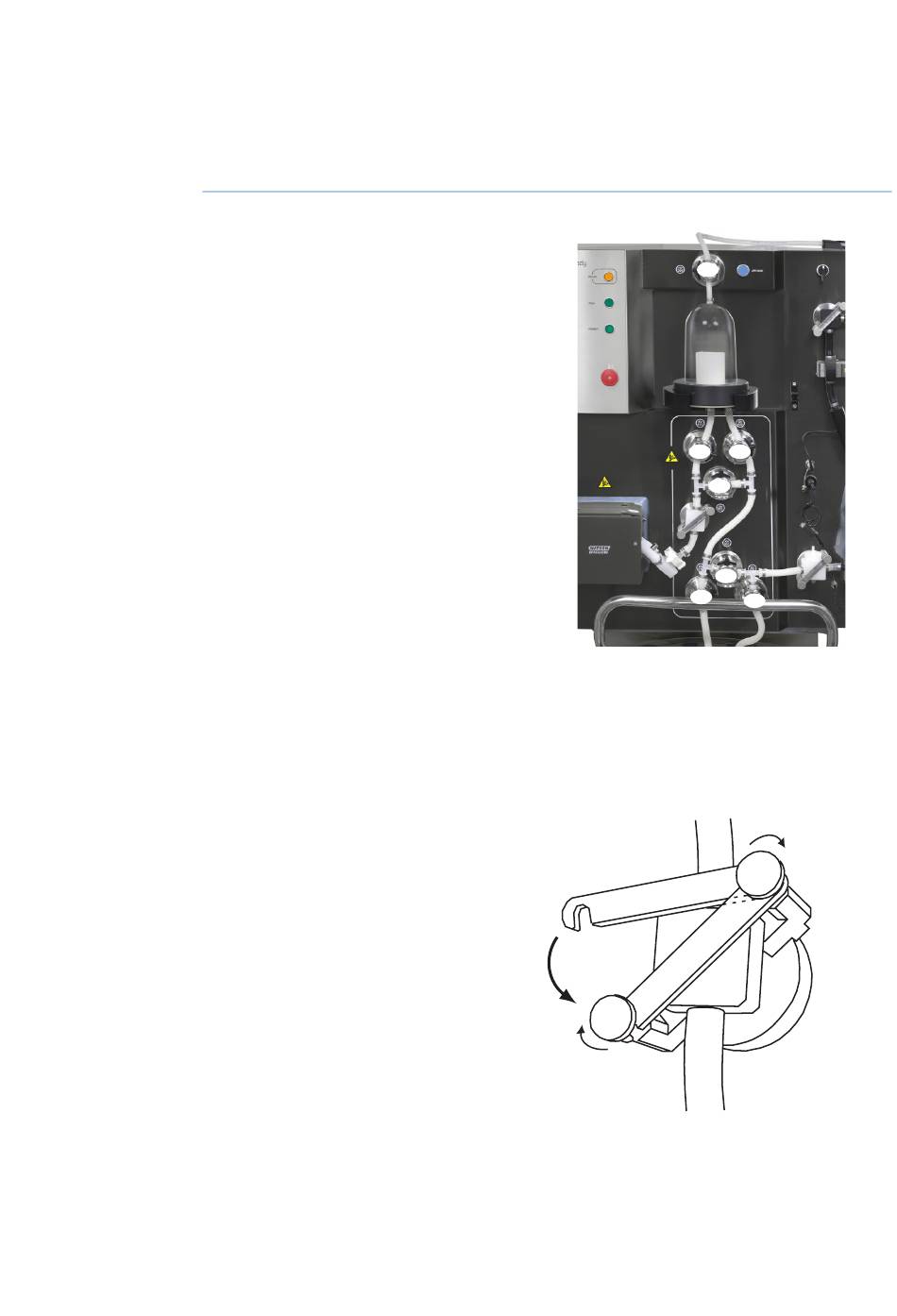

Pinch valves:
Insert the tubing into the air trap
valves (1-3 in figure), the column
valves (4-6), and the air release
valve (7). Proceed in the order
indicated by the numbers in the
figure (i.e., start with the air trap
valves).
Close the valve safety locks as
you proceed.
Note:
Make sure the pH cable does not get trapped behind the tubing. The cable
should be attached to its holder on the cabinet.
Pressure cells:
Attach the three pressure cells
(for sensors PT-111, PT-112, and
PT-113) by pushing them onto
their respective pressure cell
adapters on the cabinet.
Secure the cells by turning the
latch over the pressure cell
body, and fasten the screws.
Before firmly fastening the
screws, check that the cell is
correctly positioned and that
there is no gap between the cell
body and the adapter. Apply
finger force only.
6 Flow kit installation
6.3 Mounting the flow kit
7
1 2
3
4
5
6
