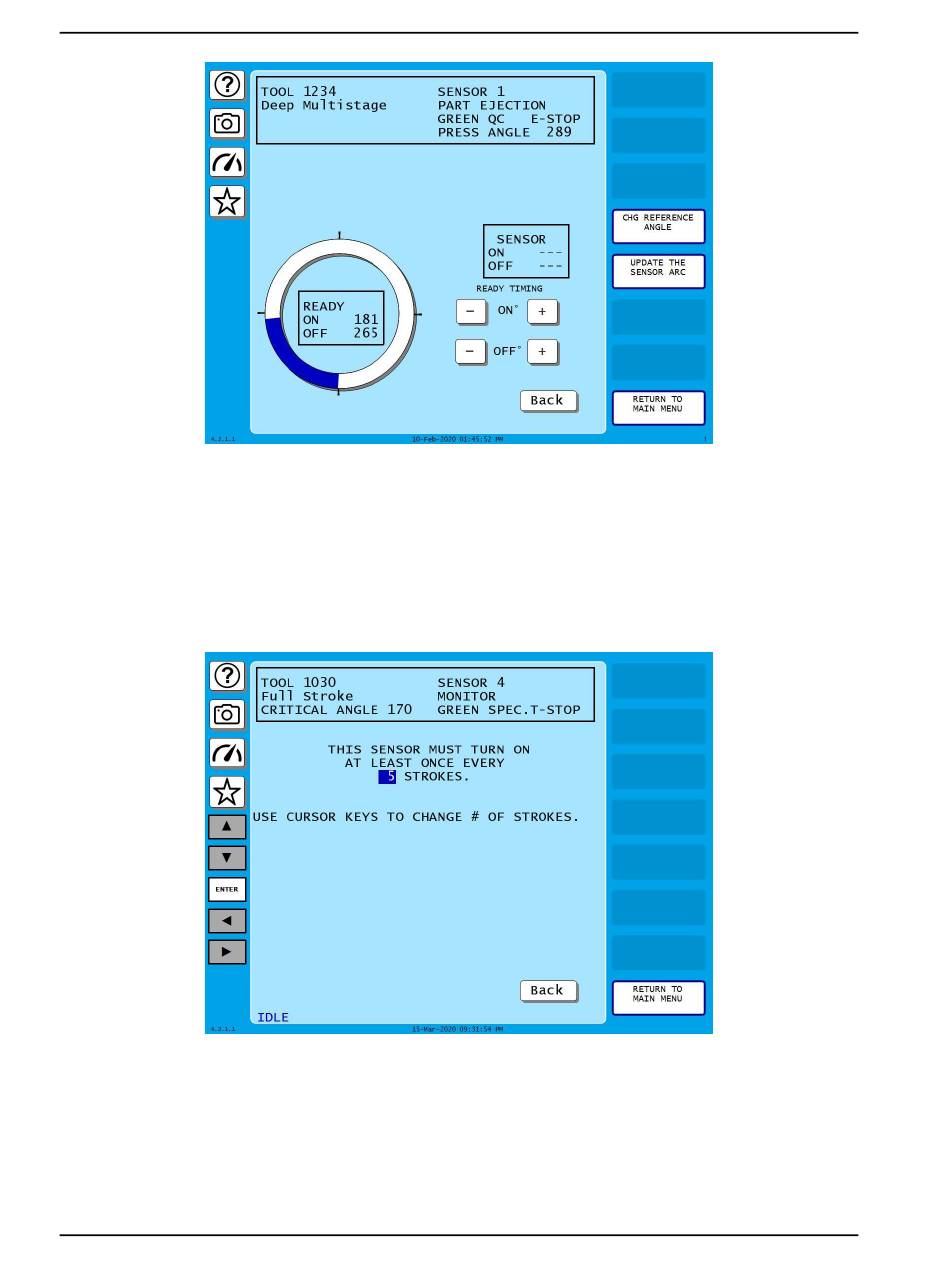

Figure 6-15. Ready Signal Programming Screen, Run Mode
When you select a sensor programmed as green special on the Die Protection Sensor Menu for
Sensors 17-32, the Green Special Sensor Stroke Count screen displays with a message, located
beneath the stroke preset, indicating that you cannot change the green special stroke count for this
sensor (see Figure 6-16). If you want to adjust the stroke count, you must make this change for the
green special sensor in the group of sensors 1-16 whose stroke count is being used for the sensor you
are programming.
Figure 6-16. Green Special Sensor Stroke Count Screen, Run Mode
