1147100

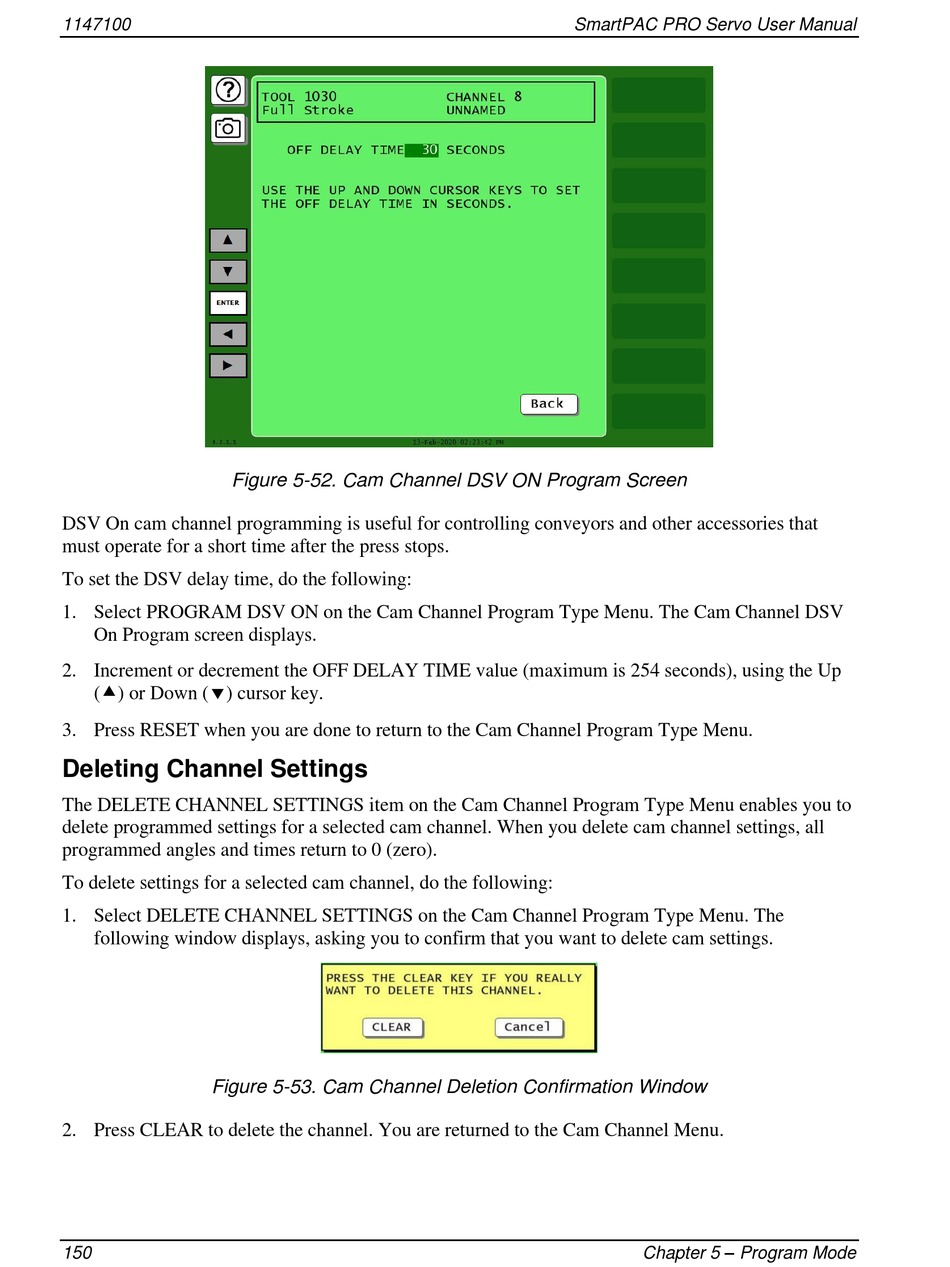

Figure 5-52. Cam Channel DSV ON Program Screen
DSV On cam channel programming is useful for controlling conveyors and other accessories that
must operate for a short time after the press stops.
To set the DSV delay time, do the following:
1. Select PROGRAM DSV ON on the Cam Channel Program Type Menu. The Cam Channel DSV
On Program screen displays.
2. Increment or decrement the OFF DELAY TIME value (maximum is 254 seconds), using the Up
() or Down () cursor key.
3. Press RESET when you are done to return to the Cam Channel Program Type Menu.

Deleting Channel Settings

The DELETE CHANNEL SETTINGS item on the Cam Channel Program Type Menu enables you to
delete programmed settings for a selected cam channel. When you delete cam channel settings, all
programmed angles and times return to 0 (zero).
To delete settings for a selected cam channel, do the following:
1. Select DELETE CHANNEL SETTINGS on the Cam Channel Program Type Menu. The
following window displays, asking you to confirm that you want to delete cam settings.
Figure 5-53. Cam Channel Deletion Confirmation Window
2. Press CLEAR to delete the channel. You are returned to the Cam Channel Menu.
150
SmartPAC PRO Servo User Manual
Chapter 5 – Program Mode
