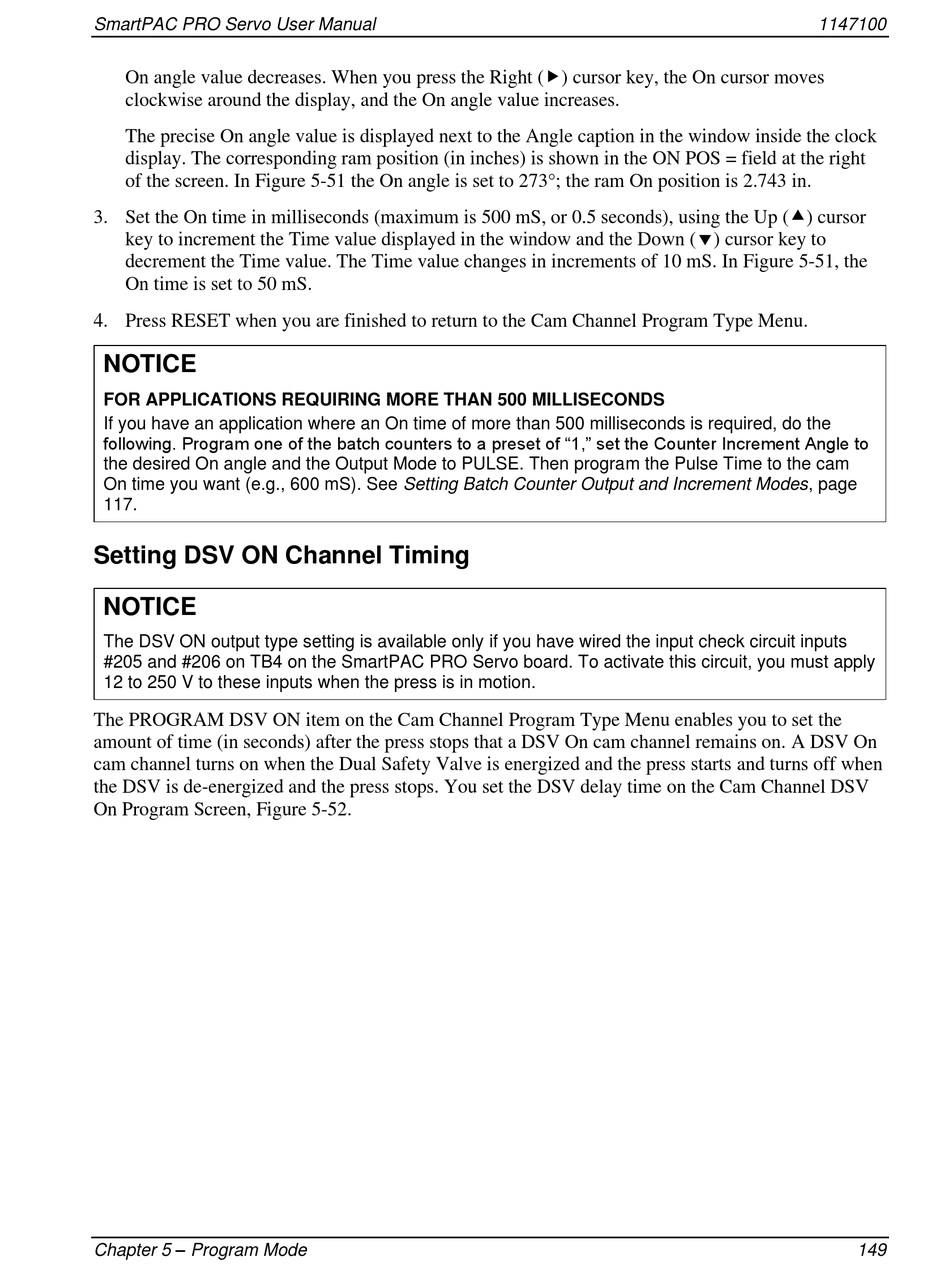

SmartPAC PRO Servo User Manual
On angle value decreases. When you press the Right () cursor key, the On cursor moves
clockwise around the display, and the On angle value increases.
The precise On angle value is displayed next to the Angle caption in the window inside the clock
display. The corresponding ram position (in inches) is shown in the ON POS = field at the right
of the screen. In Figure 5-51 the On angle is set to 273°; the ram On position is 2.743 in.
3. Set the On time in milliseconds (maximum is 500 mS, or 0.5 seconds), using the Up () cursor
key to increment the Time value displayed in the window and the Down () cursor key to
decrement the Time value. The Time value changes in increments of 10 mS. In Figure 5-51, the
On time is set to 50 mS.
4. Press RESET when you are finished to return to the Cam Channel Program Type Menu.
NOTICE
FOR APPLICATIONS REQUIRING MORE THAN 500 MILLISECONDS
If you have an application where an On time of more than 500 milliseconds is required, do the
following. Program one of the batch counters to a preset of "1," set the Counter Increment Angle to
the desired On angle and the Output Mode to PULSE. Then program the Pulse Time to the cam
On time you want (e.g., 600 mS). See Setting Batch Counter Output and Increment Modes, page
117.

Setting DSV ON Channel Timing

NOTICE
The DSV ON output type setting is available only if you have wired the input check circuit inputs
#205 and #206 on TB4 on the SmartPAC PRO Servo board. To activate this circuit, you must apply
12 to 250 V to these inputs when the press is in motion.
The PROGRAM DSV ON item on the Cam Channel Program Type Menu enables you to set the
amount of time (in seconds) after the press stops that a DSV On cam channel remains on. A DSV On
cam channel turns on when the Dual Safety Valve is energized and the press starts and turns off when
the DSV is de-energized and the press stops. You set the DSV delay time on the Cam Channel DSV
On Program Screen, Figure 5-52.
Chapter 5 – Program Mode
1147100
149
