Mazda 0000-8L-K01 Installation Instructions

Part Number:
0000-8L-K01

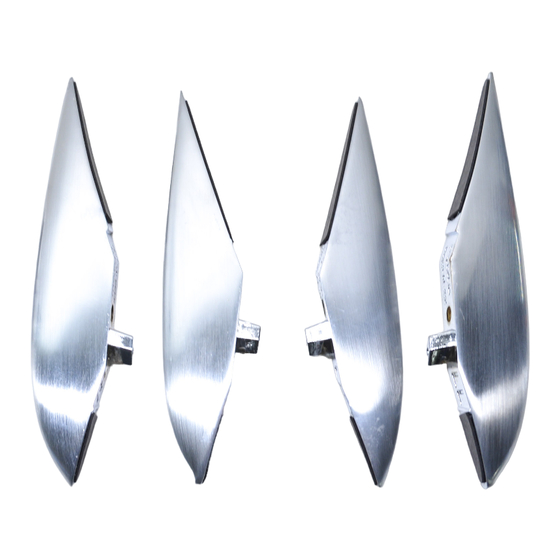

Package Contents
RU (1)
PASSENGER SIDE
LU (1)
DRIVER SIDE
RETAINER (4)
1
Preparation of Vehicle
1. Turn steering wheel so the wheel is turned outward
on the side you are installing the strakes on.
2. Using a Phillips screwdriver, remove (4) plastic
scrivets in the position as shown in Figure 1. Remove
bottom of splash guard. Save for re-assembly.
3. Put your hand between the inner fender and fender
panels and remove grille from backside by squeezing
clips. Clip position is referred to in Figure 2.
3/31/04
Genuine Accessories
Installation Instructions
Fender Strakes
RL (1)
LL (1)
M4 BOLT (4)
Tools Required
RAG
3mm
ALLEN WRENCH
FIG. 2
Page 1 of 2
Applicable Models:
2004>RX8
PHILLIPS
SOAP & WATER
SCREWDRIVER
SOLUTION
FIG. 1
Rev. A
