To modify the properties of any component, double-click it and enter a new value in the
properties dialog that is displayed and then click OK.

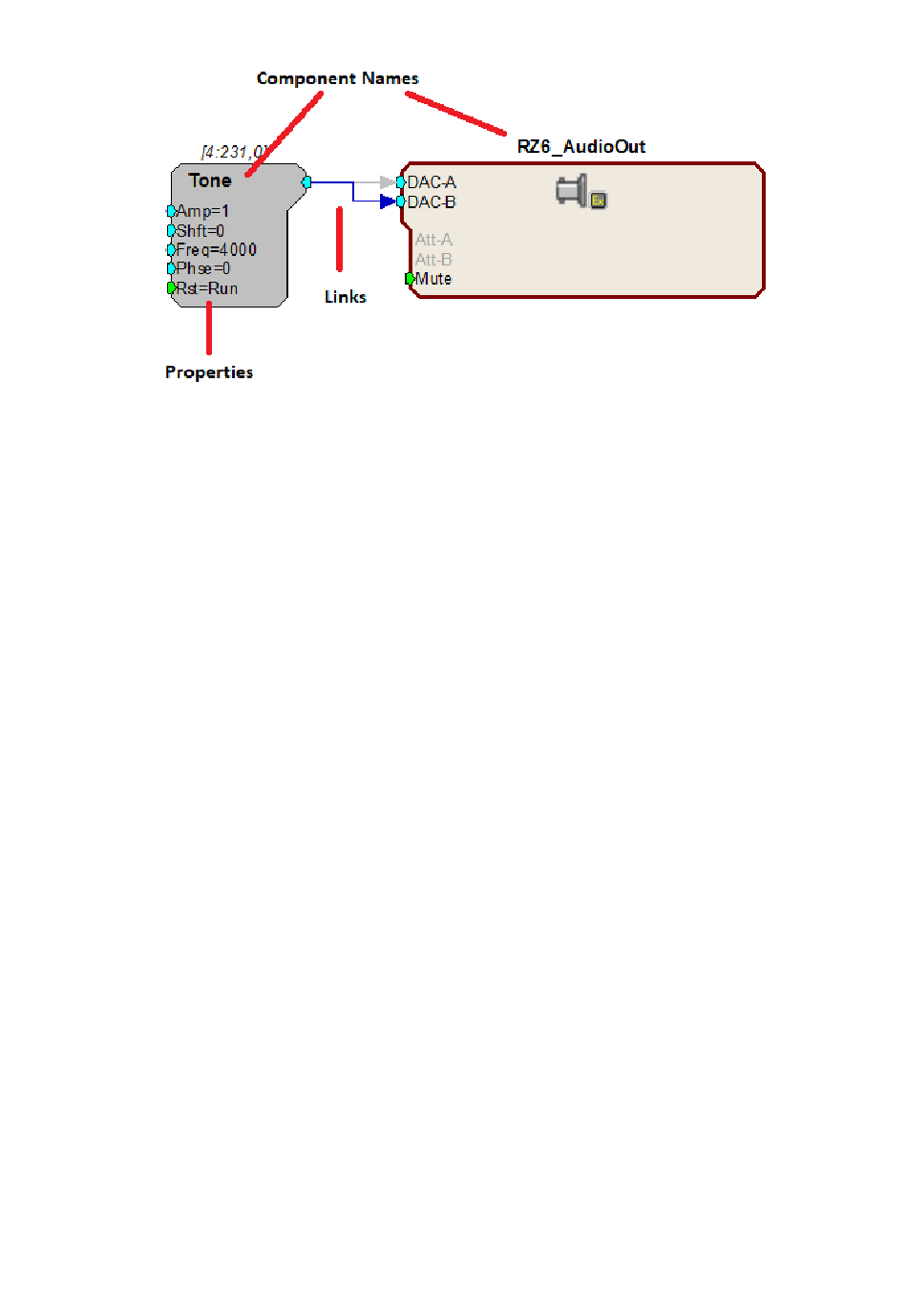

To create a link, double-click an output port on a component, then click the input port on the
next component in the circuit.
To add a component, double-click the workspace and select a component.
To delete a component or link, click it and press the DELETE key on your keyboard.
For more information on working with circuits, see the
Modify a File
1. Open the appropriate RPvdsEx file.
2. If you are using filtered noise, the first step is setting the filter values. If not, you can skip to
the next step.
Find section B, in the illustration above. By default the circuit uses a lowpass filter with a
corner frequency at 16 kHz and a highpass filter with a corner frequency at 8 kHz.
Circuit Segment
RPvdsEx
Noise Exposure | 70
Manual.
