To use this circuit there are a few steps required for setup:
1. Connect your speaker to Out-A.
To test your speaker:
Click the Compile, Load, Run button on the toolbar. You should be able to hear a tone
from the speaker.
Click the Stop button to stop the test.
Microphone Test
After you've confirmed at least one speaker is working, connect the calibration microphone and
run the circuit again.
Important
To ensure accurate calibration, give the microphone 10 minutes to warm-up before testing.
To use this circuit there are a few steps required for setup:
1. Connect your Calibration Microphone to the In-A port on the RZ6.
2. If your microphone has a sensitivity of less than 50 mV/Pa, ensure your Amp/BYP switch on
the front of the RZ6 is set to Amp.
3. Place your microphone where your subject's ear would be located.

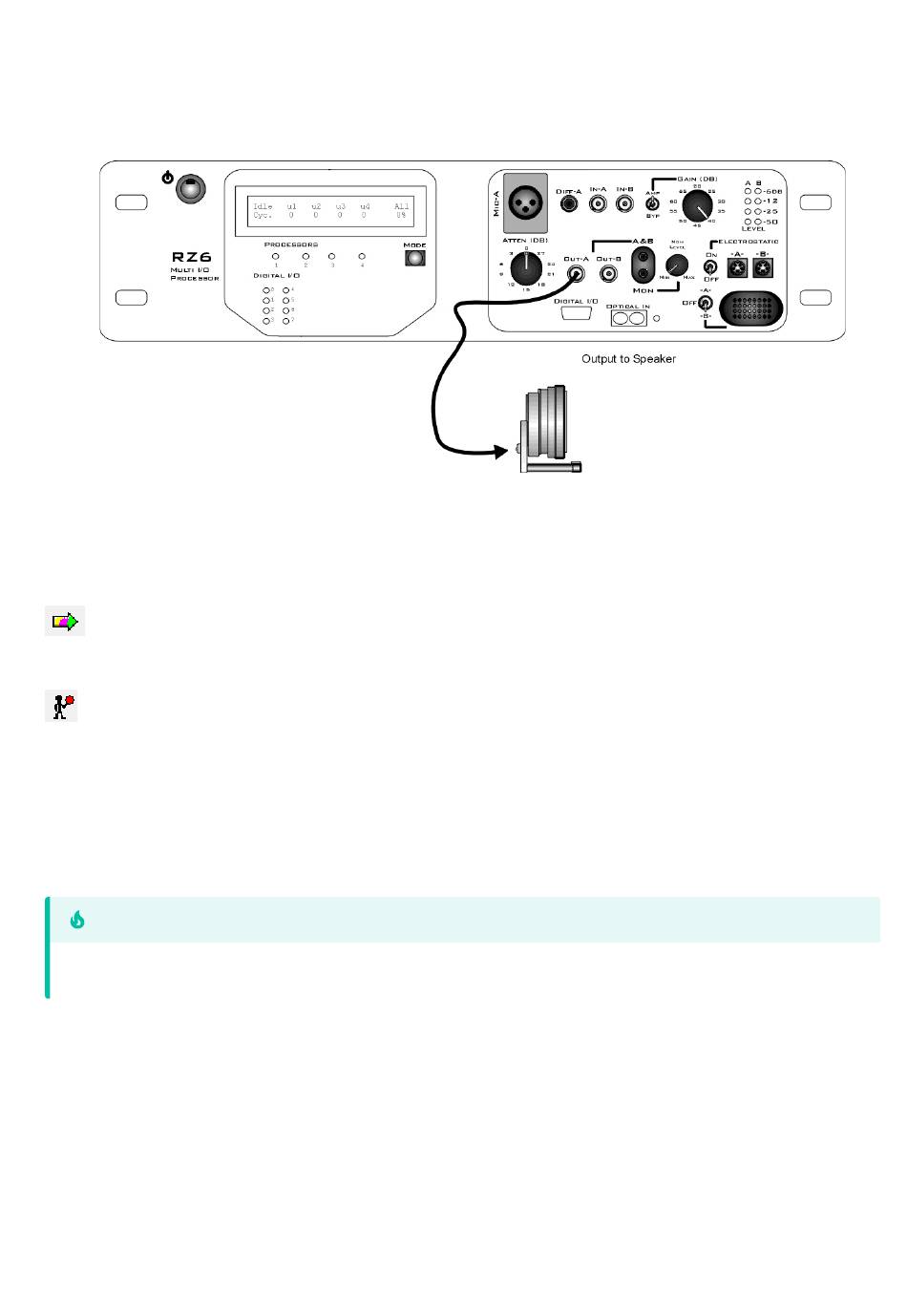

RZ6 with MF1 Speaker
