Data and Export

Viewing data in the BioSigRZ plots and worksheet.

History Plot

In averaging mode, BioSigRZ acquires data and calculates a running average. Data will be
acquired until enough records have been gathered to compute the final averaged signal. At that
time, the averaged signal will be appended to the end of the History Plot, the SGI will be
incremented, a new stimulus signal will be generated according to the current stimulus
parameters, and a new average will be computed. This process continues until the termination

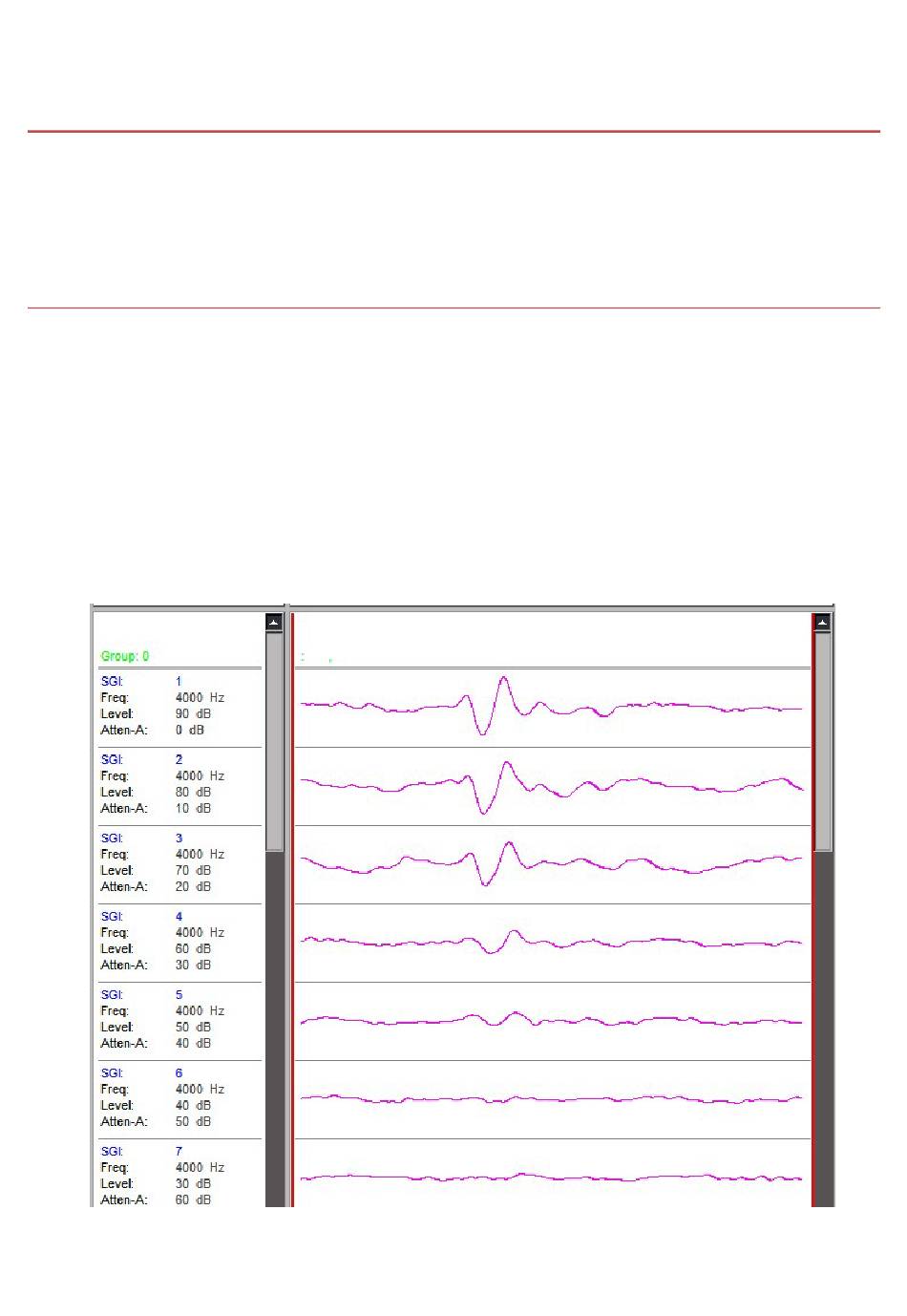

of the stimulus schedule is reached or until you manually end data averaging. Information
about each SGI is displayed to the left of the history plot (pictured below). Right-clicking this
data allows you to control what data is shown.
