Jumper Settings

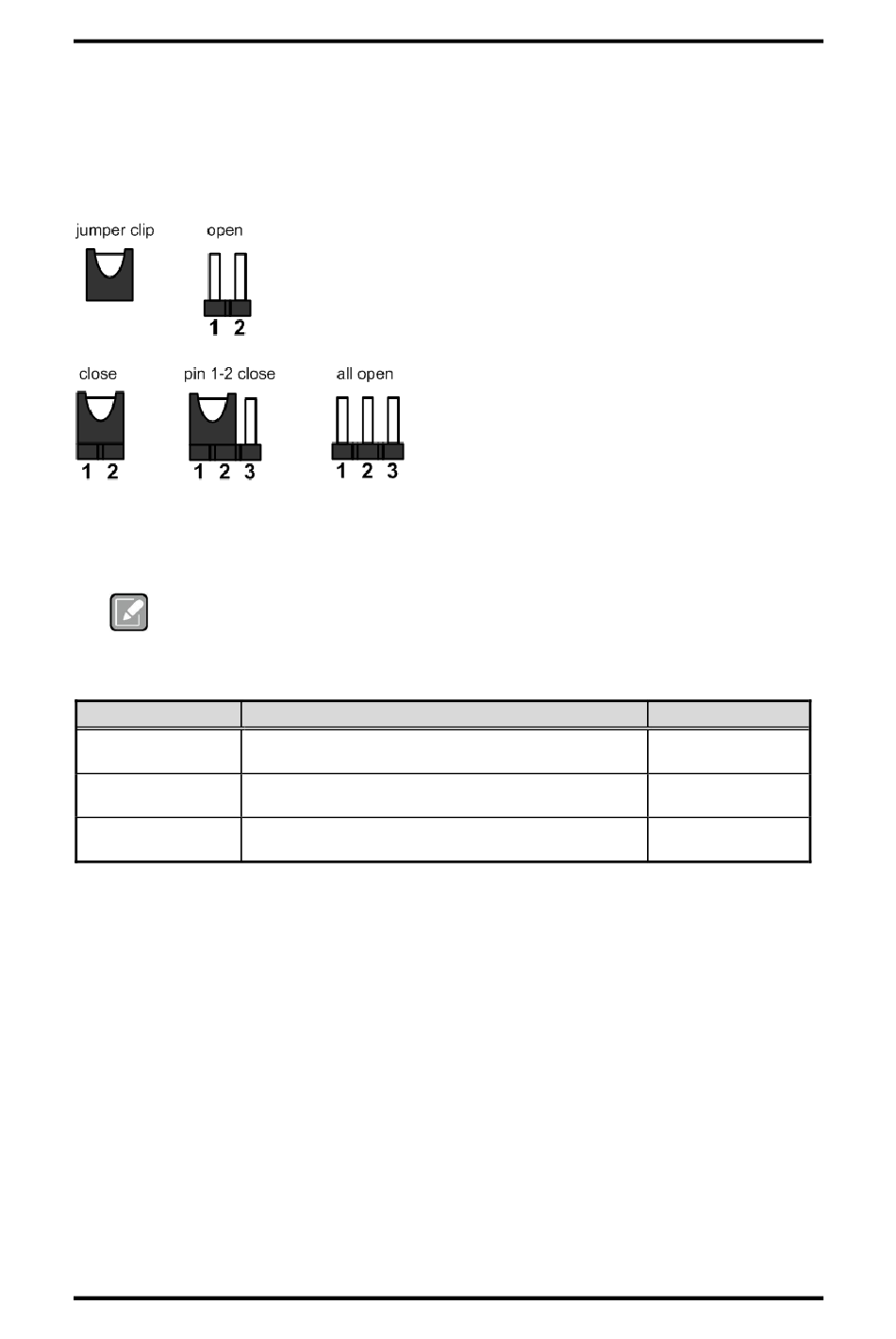

Jumper is a small component consisting of jumper clip and jumper pins. Install jumper clip on 2
jumper pins to close. And remove jumper clip from 2 jumper pins to open. Below illustration
shows how to set up jumper.
Properly configure jumper settings on the PICO511 to meet your application purpose. Below
you can find a summary table of jumpers and onboard default settings.
Once the default jumper setting needs to be changed, please do it under power-off
condition.
Note
Jumper
JP2
JP3
JP4
12
Description
Restore BIOS Optimal Defaults
Default: Normal Operation
Auto Power On
Default: Enable
LVDS Voltage Selection
Default: +3.3V Level
Setting
1-2 Close
2-3 Close
1-2 Close
