PICO511 Pico-ITX Board

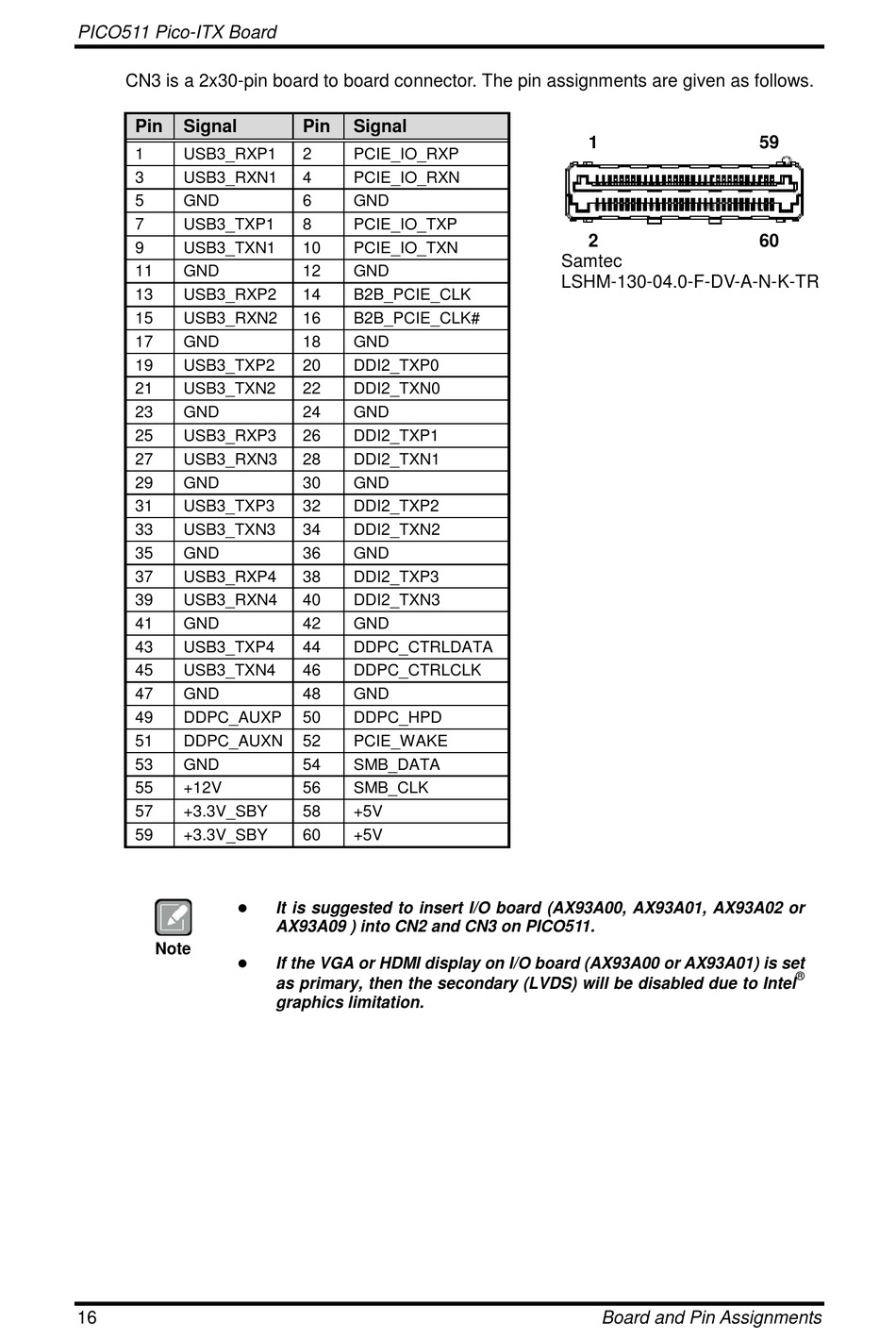

CN3 is a 2x30-pin board to board connector. The pin assignments are given as follows.
Pin Signal
1 USB3_RXP1
3 USB3_RXN1
5 GND
7 USB3_TXP1
9 USB3_TXN1
11 GND
13 USB3_RXP2
15 USB3_RXN2
17 GND
19 USB3_TXP2
21 USB3_TXN2
23 GND
25 USB3_RXP3
27 USB3_RXN3
29 GND
31 USB3_TXP3
33 USB3_TXN3
35 GND
37 USB3_RXP4
39 USB3_RXN4
41 GND
43 USB3_TXP4
45 USB3_TXN4
47 GND
49 DDPC_AUXP
51 DDPC_AUXN
53 GND
55 +12V
57 +3.3V_SBY
59 +3.3V_SBY

Note

16
Pin Signal
2 PCIE_IO_RXP
4 PCIE_IO_RXN
6 GND
8 PCIE_IO_TXP
10 PCIE_IO_TXN
12 GND
14 B2B_PCIE_CLK
16 B2B_PCIE_CLK#
18 GND
20 DDI2_TXP0
22 DDI2_TXN0
24 GND
26 DDI2_TXP1
28 DDI2_TXN1
30 GND
32 DDI2_TXP2
34 DDI2_TXN2
36 GND
38 DDI2_TXP3
40 DDI2_TXN3
42 GND
44 DDPC_CTRLDATA
46 DDPC_CTRLCLK
48 GND
50 DDPC_HPD
52 PCIE_WAKE
54 SMB_DATA
56 SMB_CLK
58 +5V
60 +5V
It is suggested to insert I/O board (AX93A00, AX93A01, AX93A02 or
AX93A09 ) into CN2 and CN3 on PICO511.
If the VGA or HDMI display on I/O board (AX93A00 or AX93A01) is set
as primary, then the secondary (LVDS) will be disabled due to Intel
graphics limitation.
1
2
Samtec
LSHM-130-04.0-F-DV-A-N-K-TR
Board and Pin Assignments
