- Page 1 Interactive Fire Detection System System Description Protecting life, environment and property... 116-APRIME-SYSTEMD/XGB 2007-10-10...
- Page 2 This publication, or parts thereof, may not be reproduced in any form, by any method, for any purpose. Autronica Fire and Security AS and its subsidaries assume no responsibility for any errors that may appear in the publication, or for damages arising from the information in it.
-
Page 3: Table Of Contents
2.18 Operation Classes for different Detection Methods ......13 2.19 Performance Classes for Environmental Adaptivity......14 2.20 Interactive Detectors with Dynamic Filtering (DYFI+) ....... 15 2.21 Built-in Short-circuit Isolator .............. 16 System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 1... - Page 4 5.1.7 Flame detectors ..............24 5.1.8 Aspirating detectors ..............24 5.1.9 Loop sounders (Fire Alarm Devices) ........24 5.1.10 Control and Interface units............24 6. Reader’s Comments ............25 System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 2...
-
Page 5: Introduction
Datasheet; Repeater Panel BS-211 116-P-BS211/CGB bs211_cgb Datasheet; Information Panel BV-210 116-P-BV210/CGB bv210_cgb Datasheet; Fire Brigade Panel BU-210 116-P-BU210/CGB bu210_cgb Datasheet; Mimic Driver BUR-200 116-P-BUR200/CGB bur200_cgb System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 3... -
Page 6: System Characteristics
Fire Alarm Control Panel BS-200 BU-210 RS-485 Panel bus BV-210 ESPA 444 Communication Protocol or BS-211 NMEA protocol for VDR systems (RS-232, RS-422/485) Modbus RTU protocol (serial/ethernet) System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 4... -
Page 7: Applications
The system provides simple configuration, installation, operation and service routines. For detailed information on the system functionality and how to operate the system, refer to the Operator’s Handbook. System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 5... -
Page 8: Compliance With Regulations And Standards
Disablement Disabling and enabling points individually, or in groups, by detection zone are addressable manual operation. disabled, the indication points changes to zone disablement. System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 6... -
Page 9: Functions Relating To Other Parts Of En 54
(recommended), no loop units will be lost in case of such a fault. Alarm zones Means of sub-dividing the alarming area in an installation during fire alarm condition System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 7... -
Page 10: Ce Marking Information
System Characteristics 2.6 CE Marking Information Autronica Fire and Security AS 7483 Trondheim EN 54 –2:2007 Control and indicating equipment for fire detection and fire alarm systems for buildings BS-200 / BS-200M / BS-200L Provided options: See chapter 2.5.1 in this handbook. -
Page 11: Detection Loops
An alarm from one of the devices in DZ3 will activate Fire Alarm Devices in AZ1. Within the same alarm zone, alarm sounders give the same audible signal. System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 9... -
Page 12: Parent Alarm Zone
• assigning Detection Zones to Disable devices (BW-200) System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 10... -
Page 13: Downloading / Uploading
• NMEA-0183, allowing connectivity with devices such as the maritime Voyage Data Recorder (VDR). • MODBUS, allowing connectivity with Programmable Logic Controllers (PLC). System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 11... -
Page 14: Language Options
The equipment complies with environmental conditions of IEC-721-3- 3 class 3k5. Ambient temperature: -5 to +55 C Degree of protection: • BS-200 and BS-200L: IEC-529/IP30 • BS-200M: IEC-529/IP32 System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 12... -
Page 15: Selfverify™ Function
• Heat only (thermal detection only) - class A1 • MultiSensor with Heat (a combination of optical detection with heat enhancement and Heat class A1) System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 13... -
Page 16: Performance Classes For Environmental Adaptivity
All three different sensitivity settings comply with the C.E.N. regulations EN-54. System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 14... -
Page 17: Interactive Detectors With Dynamic Filtering (Dyfi+)
The pollution filter maintains the chosen sensitivity throughout the detector’s entire lifetime, even with a polluted detector.. System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 15... -
Page 18: Built-In Short-Circuit Isolator
In the event of a short-circuit in the detector cable, the short-circuit location will be isolated as the short-circuit isolator will be activated in the detectors on either side. System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 16... -

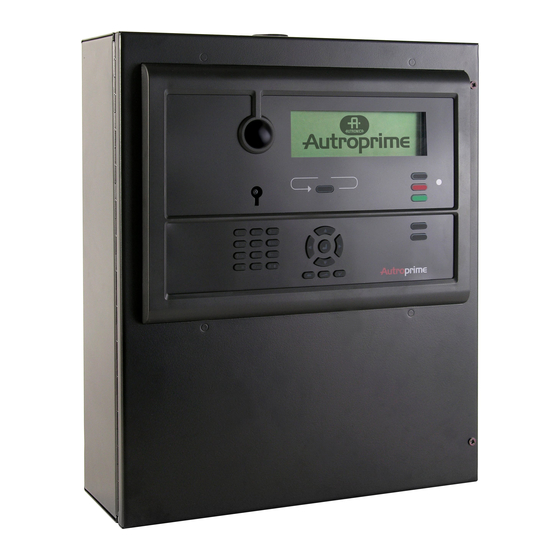

Page 19: Panel Description
The Operator Panel (BS-210), which is an integrated part of the BS-200 panel, can also be mounted separately outside the cabinet. See separate datasheets for details of each variant. System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 17... -
Page 20: Operator Panel Bs-210
Fire Alarm Control Panel via the RS-485 panel bus. All alarm handling and system events can be controlled and monitored from the panel. For detailed information, see separate datasheet. System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 18... -
Page 21: Fire Brigade Panel Bu-210
• Scrolling function within each window. • Light dimming. • No system operations are allowed (Silence, Reset, menu functions). For detailed information, see separate datasheet. System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 19... -
Page 22: Mimic Driver Bur-200
(if a false alarm) or to allow the user to set the system into alarm (if there is a real fire). System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 20... -
Page 23: Panel Inputs And Outputs
(includes output 18) Charger 0V For connection of internal charger Charger +24V Battery - For connection of standby battery Battery + Fuse F2, 5A System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 21... -
Page 24: Auxiliary Terminal Block J4
• Silent Alarm Out • Small Alarm Out • Fire Alarm Device, FAD • Fire Alarm Routing Equipment, FARE • Fault Warning Routing Equipment, FWRE System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 22... -
Page 25: Detectors And Loop Units
These can be mixed freely and connected at any point on the same detection loop. The system supports SelfVerify™ detectors as well as Autronica 200, 300 and 500 series detectors. Autroprime supports Autronica detectors and loop units with the most recent software versions. -
Page 26: Manual Callpoints
• BN-310 Signal Relay Output Unit • BN-320/2 Door Control Unit • BN-320/4 Monitoring and Control Unit • BN-320/5 Sprinkler Control Unit • BW-200 Disable Input Unit with Pushbuttons System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS Page 24... -
Page 27: Reader's Comments
Title: System Description, Autroprime Interactive Fire Detection System, Ref. No.: 116-P-APRIME-SYSTEMD/XGB 2007-10-10 Your information on any inaccuracies or omissions (with page reference): Please turn the page System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS... - Page 28 ------------------------------------------------------------------------------------------------ Fax: ------------------------------------------------------------------------------------------------ Date: ------------------------------------------------------------------------------------------------ Please send this form to: Autronica Fire and Security AS N-7483 Trondheim Norway Tel: + 47 73 58 25 00 Fax: + 47 73 58 25 01 www.autronicafire.com System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10,...
- Page 29 Reader’s Comments System Description, Autroprime Interactive Fire Detection System, 116-P-APRIME-SYSTEMD/XGB 2007-10-10, Autronica Fire and Security AS...
- Page 30 Autronica Fire and Security is an international company, headquartered in Trondheim, one of the largest cities in Norway. The company is owned by United Technologies Corporation and employs more than 319 persons with experience in developing, manufacturing and marketing of fire safety equipment. Our products cover a broad range of systems for integrated solutions, including fire detection systems, integrated fire and gas detection systems, control and presentation systems, voice alarm systems, public address systems, emergency light systems, plus suppression systems.
Need help?
Do you have a question about the Autroprime BS-200 and is the answer not in the manual?
Questions and answers

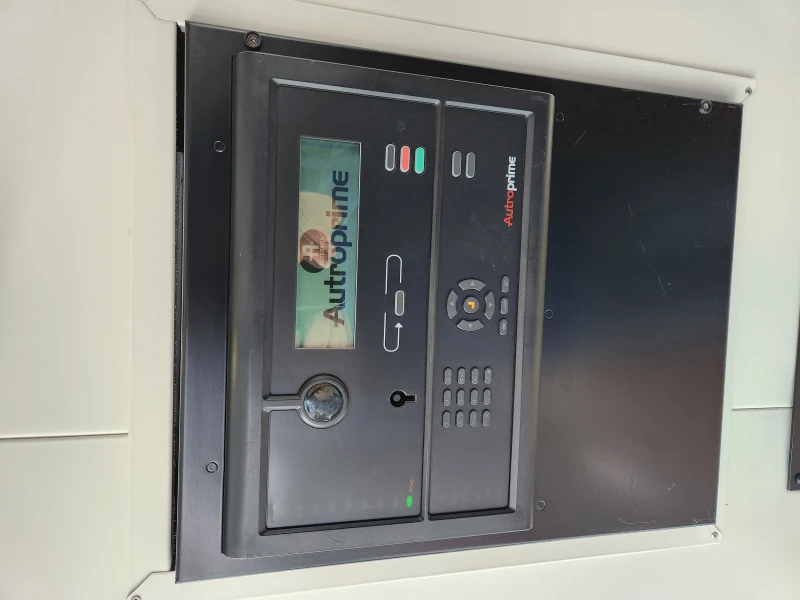

Is there a lamp indicator switch to test?
