Install Vent System
1. Install vent through the vent opening in upper cabinet or wall.
Complete venting system according to the selected venting
method. See "Venting Requirements" section.
2. Use caulking to seal exterior wall or roof opening around the
cap.

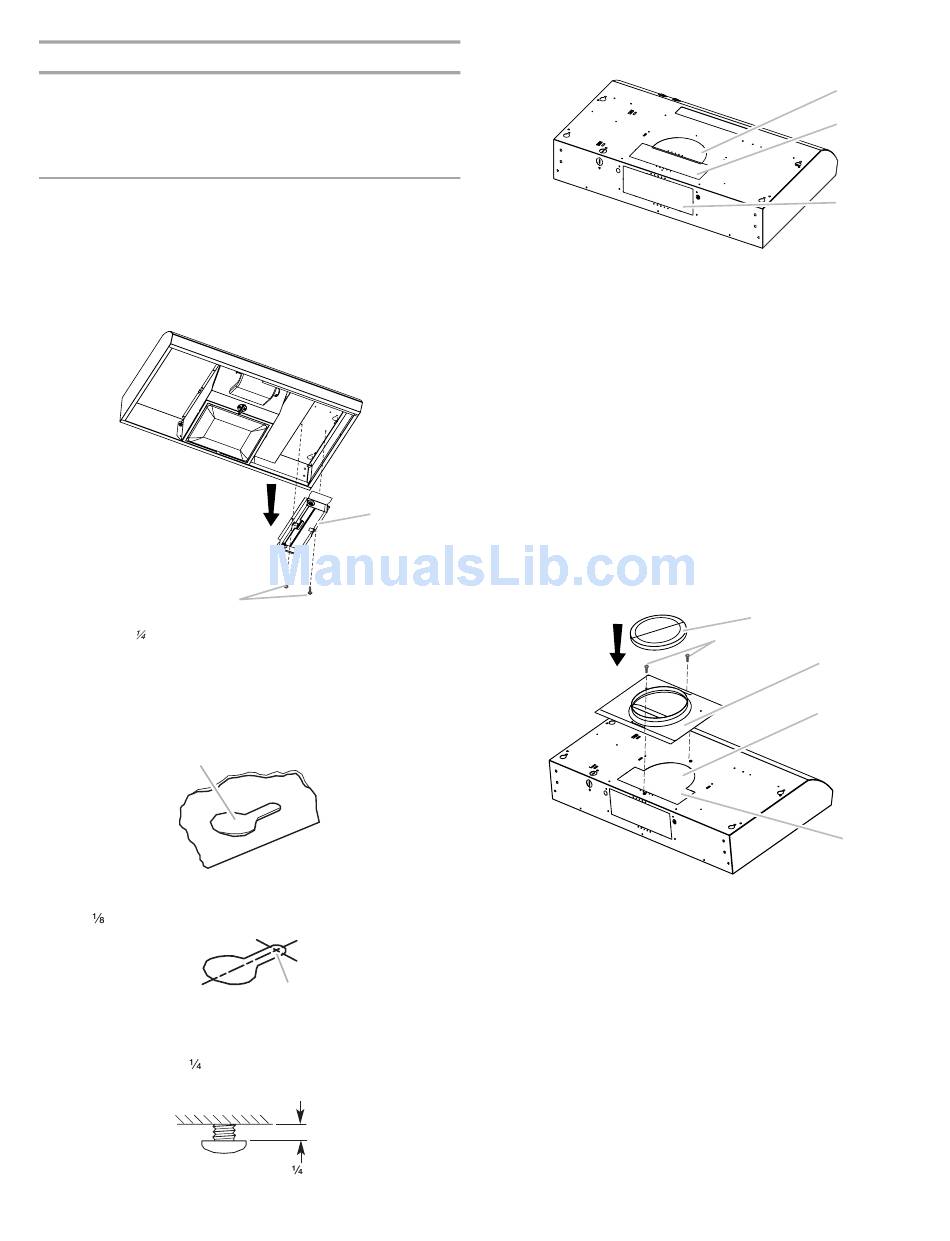

Install Range Hood

NOTE: Your model will have a 3¼" x 10" (8.3 x 25.4 cm)
rectangular vent damper on the inside of the range hood.
1. Remove the 3¼" x 10" (8.3 x 25.4 cm) rectangular vent
damper attached with 3.5 x 9.5 mm screws on the inside your
range hood. Use these screws to install the rectangular vent
damper.
A. 3 " x 10" (8.3 x 25.4 cm) rectangular vent damper
B. 3.5 x 9.5 mm screws
2. Lift the range hood up under cabinet and determine final
location by centering beneath cabinet. Mark on the underside
of cabinet the location of the 4 keyhole mounting slots on the
range hood. Set range hood aside on a covered surface.
A
A. Keyhole slot
3. Use
" (3 mm) drill bit and drill 4 pilot holes as shown.
A. Drill pilot hole.
4. Install the 4 - 4.5 mm x 13 mm mounting screws in pilot
holes. Leave about
" (6.4 mm) space between screw heads
and cabinet to slide range hood into place.
A
B
A
"
(6.4 mm)
5. Remove vent knockouts depending on your installation
requirements.
A. Round vent knockout
B. Top rectangular vent knockout
C. Rear rectangular vent knockout
Round vent system installations - Remove top rectangular
and round vent knockouts.
Rectangular vent system installations - For roof
installations, remove the top rectangular vent knockout. For
wall installations, remove the rear rectangular vent knockout.
Non-vent (recirculating) installations - Do not remove any
knockouts.
6. Install 7" (17.8 cm) round vent mounting plate or 3¼" x 10"
(8.3 x 25.4 cm) vent damper, depending on your vent system
installation. Attach to range hood 3.5 x 9.5 mm screws
provided.
NOTE: The 7" (17.8 cm) round vent mounting plate is not
supplied. An optional 7" (17.8 cm) round damper is also
available as an accessory. For information on ordering, see
the "Accessories" section.
A. 7" (17.8 cm) Round damper (see "Accessories" section)
B. 3.5 x 9.5 mm screws
C. 7" (17.8 cm) round vent mounting plate. For information
on ordering, see the "Accessories" section.
D. Round vent knockout
E. Rectangular vent knockout
A
B
C
A
B
C
D
E
9
