Installing The Module In A 4-Slot Or 8-Slot Chassis - 3Com NETBuilder II FDDILink Installing

Installing the Module
in a 4-Slot or 8-Slot
Chassis
a Loosen captive screws (with screwdriver if necessary)
and push ejector tabs to the side
b
Slide filler panels out of chassis
c Remove center column
screw and center column
3 Write down the serial number and the MAC address from the labels on the
module. You will need this information if you have to contact your network
supplier.
MAC address

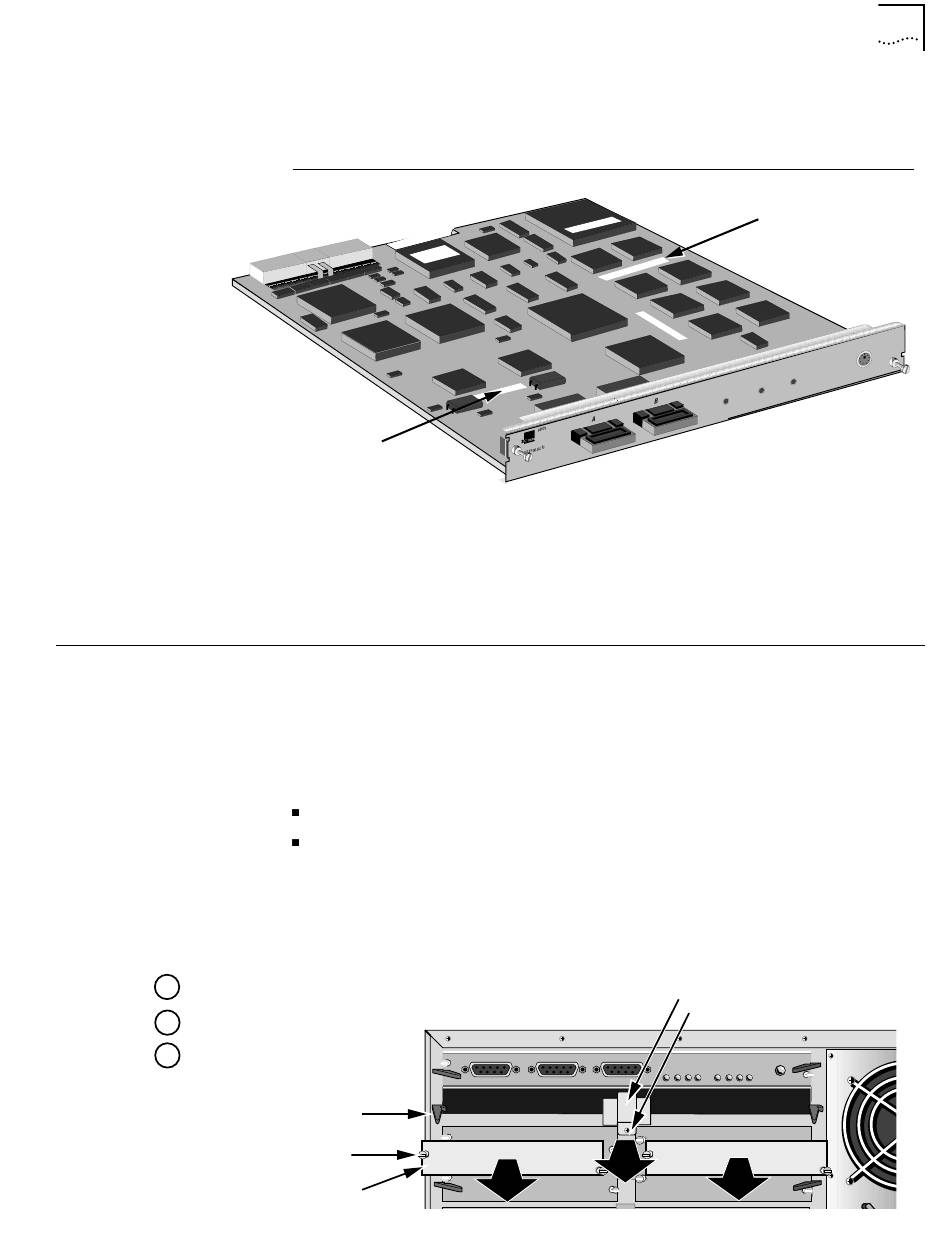

Figure 1-2 FDDILink Module
Serial number example: S/N: 4FZE123456
MAC address example: 080002 1A4B5C
The MAC address is also encoded in the module EEPROM.
When you install any extended-format module into the NETBuilder II 4-Slot or
8-Slot chassis, you must start with the first slot after the CEC module slot and
work down. If the first slot is occupied, move its contents to other slots and
install the FDDILink module into the now vacant slot.
To install the module into the NETBuilder II 4-Slot or 8-Slot chassis, follow these
steps:
You will need small flat-blade screwdriver.
You can safely install a module without turning off or rebooting the
NETBuilder II bridge/router. This is known as "hot-swap" capability.
1 Remove the filler panel from the top slot.
If the cable strain relief bracket that came with your chassis is already installed,
remove it also.
Ejector tab
Captive screw
Filler panel
Figure 1-3 Remove filler panel.

Installing the Module in a 4-Slot or 8-Slot Chassis

®
1
2
3
Serial number
A S S
B Y P
S
A T U
B S T
A T U S
A S T
T U S
S T A
Center column
Center column screw
5
6
7
8
1-3
