4.

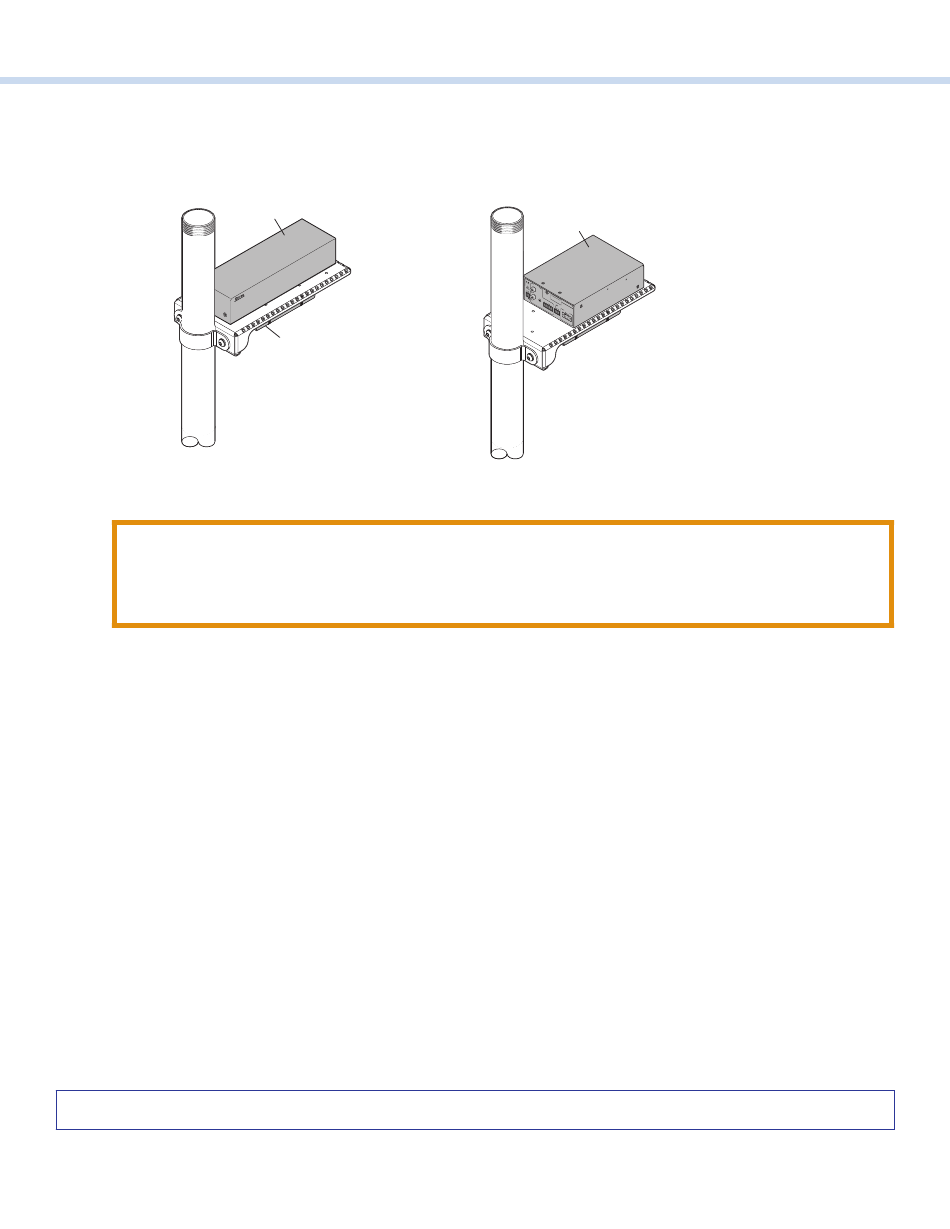

With the installed device on top, lift the plate up to the installation location on the projector pipe. Fit the pipe clamp around
the pipe and hold it against the flange on the mounting plate.
5.
Insert the two hex bolts through the clamp holes and into the flange.
6.
Level the plate and tighten the hex bolts firmly to secure it against the pipe.
Half Rack Device
7.
Attach input and output cables to the mounted device and thread the cables through the access hole in the projector pipe to
the inputs and the display device. Use the remaining tie wraps for cable tidying.
CAUTION:
•
DO NOT thread the projector power cable through the boom arm or mounting pipe. Threading it through the arm or
the pipe violates national electrical regulations.
•
N'enfilez pas le câble d'alimentation du projecteur sur le support flexible ou le tuyau de montage. L'enfiler sur le
support ou le tuyau enfreint les réglementations électriques nationales.
8.
Connect the power supply to an electrical outlet and turn on the device.
For configuration and operation of the attached devices, see the user guide for the specific device.
For information on safety guidelines, regulatory compliances, EMI/EMF compatibility, accessibility, and related topics, see the
Extron Safety and Regulatory Compliance Guide
2
Power Supply
on the Extron website.
© 2012-2020 Extron — All rights reserved.
All trademarks mentioned are the property of their respective owners.
Worldwide Headquarters: Extron USA West, 1025 E. Ball Road, Anaheim, CA 92805, 800.633.9876
MPA 401
IN PU
TS
P O
W ER
L
(M
ON
O)
®
LIS
US
TE D
CL
AS
12
AU
DIO
17T
T
DO
S 2
V
R
AP
PA
/VI
NO
W IR
3A
RA
DE
TU
O
SP
OR
T GR
IN G
M AX
S
EA
SH
OU
KE
R OU
OR
ND
M P
T
TP
A 4
10
UT
S!
0 1
V
-1 0
VO
50
m A
0 V
L
L/M
(M
UT
E
ON
O)
O U
R
TP
U T
R EM
O TE
10 0V
www.extron.com
68-2283-01 Rev. B
10 20
