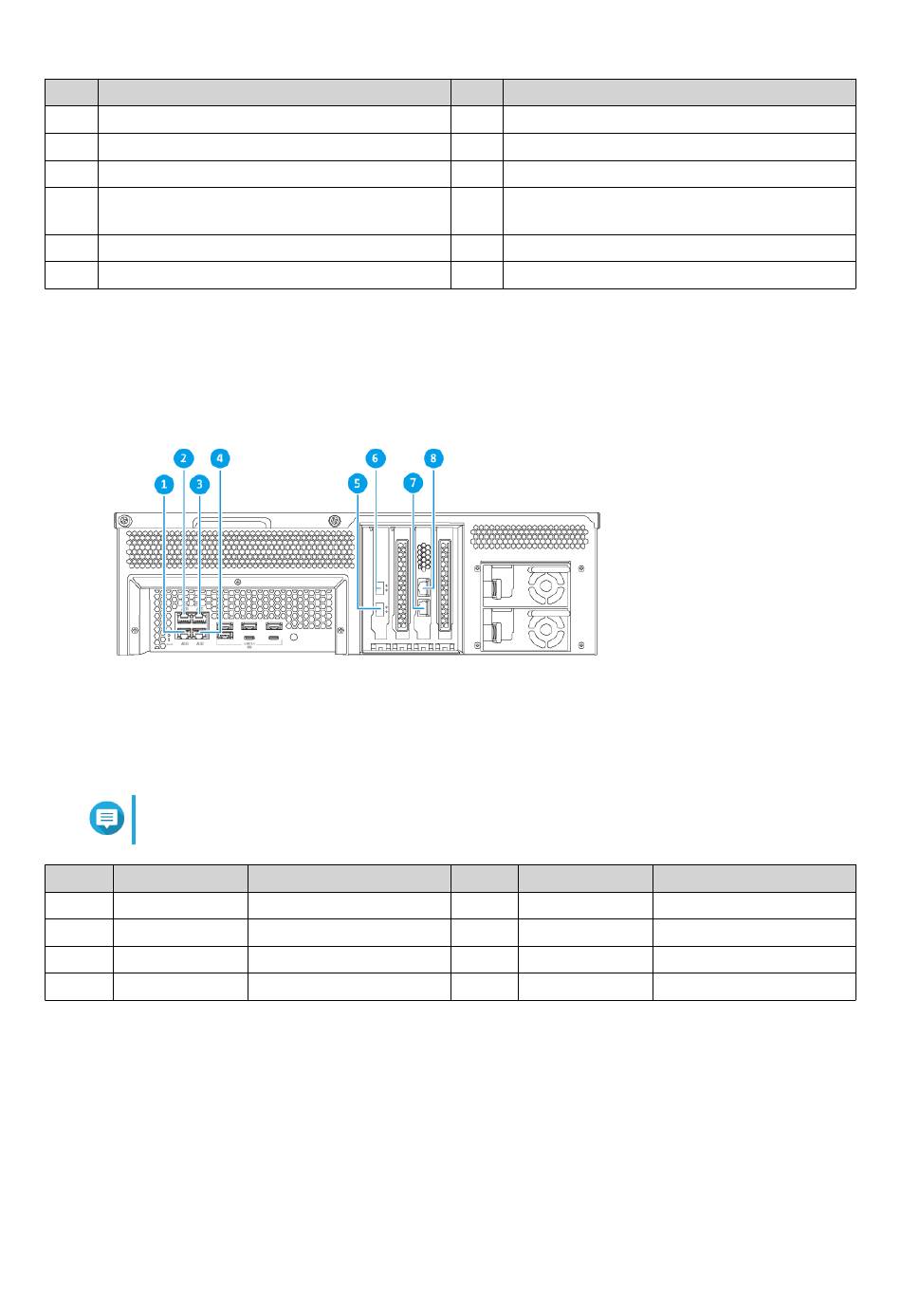

Rear Panel Network Interface - QNAP TS-h 83XU-RP Series User Manual

No.
1 Gigabit Ethernet activity LED
2 Gigabit Ethernet speed LED
3 PCIe full-height covers
4 Power supply unit 1
5 Power supply unit 2
6 10 Gigabit Ethernet Speed (RJ45) LED

Rear Panel Network Interface

TS-h1683XU-RP
Note
Only Gigabit Ethernet (RJ45) ports support Wake-on-LAN configurations.
No. Component
1 Ethernet port 4
2 Ethernet port 3
3 Ethernet port 1
4 Ethernet port 2
Component
Specifications
GbE RJ45
GbE RJ45
GbE RJ45
GbE RJ45
No.
7 10 Gigabit Ethernet Activity (RJ45) LED
8 10 Gigabit Ethernet Speed (SFP+) LED
9 10 Gigabit Ethernet Activity (SFP+) LED
10 USB 3.2 Gen 2x2 5V/3A (10Gbps) Type-C
ports
11 USB 3.2 Gen 2 4V/1A (10Gbps) Type-A ports
12 Reset button
No. Component
5 Ethernet port 7
6 Ethernet port 8
7 Ethernet port 5
8 Ethernet port 6
TS-hx83XU-RP User Guide
Component
Specifications
10GbE SFP+ SmartNIC
10GbE SFP+ SmartNIC
10GbaseT RJ45
10GbaseT RJ45
Product Overview 8
