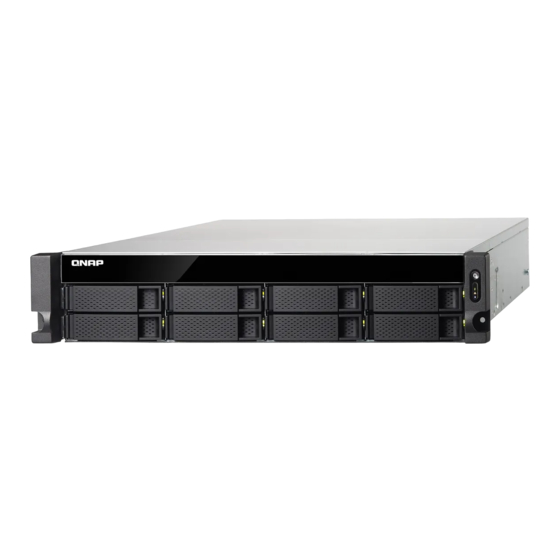

- Page 1 TS-x73U TS-873U TS-1273U TS-1673U TS-873U-RP TS-1273U-RP TS-1673U-RP User Guide Document Version: 4 14/11/2017...
-
Page 2: Table Of Contents
TS-x73U User Guide Contents 1. Preface About This Guide............................3 Audience...............................3 Document Conventions..........................3 2. Product Overview About TS-x73U............................. 4 Hardware Specifications..........................4 Package Contents............................6 Components..............................7 Front Panel............................... 7 Rear Panel..............................8 System Board............................10 Front Drive Numbering........................... 10 Installation Requirements..........................11 Setting Up the NAS.............................12 3. - Page 3 Limited Warranty............................52 Disclaimer..............................52 GNU Public License............................52 FCC Notice..............................60 CE Notice..............................60 SJ/T 11364-2006............................60...
-
Page 4: Preface
TS-x73U User Guide 1. Preface About This Guide This guide provides information on the QNAP TS-x73U NAS and step-by-step instructions on installing the hardware. It also provides instructions on basic operations and troubleshooting information. Audience This document is intended for consumers and storage administrators. This guide assumes that the user has a basic understanding of storage and backup concepts. -
Page 5: Product Overview
AES-NI encryption acceleration. Hardware Specifications Important Modifying the hardware or software of your QNAP product invalidates the warranty. QNAP is not responsible for any damage or data loss caused by unauthorized modifications and installation of unsupported third-party applications. - Page 6 • 16 GB RAM: 2 x 8 GB UDIMM DDR4 • 64 GB RAM: 4 x 16 GB UDIMM DDR4 Use only non-error-correcting code (ECC) QNAP memory modules to maintain system performance and stability. For NAS devices with more than one memory slot, use non-ECC QNAP modules with identical specifications.
-
Page 7: Package Contents
• TS-1273U: 350W, • TS-1673U: 350W, 100-240V AC, 50/60 100-240V AC, 50/60 100-240V AC, 50/60 • TS-873U-RP: 2 x • TS-1273U-RP: 2 x • TS-1673U-RP: 2 x 250W, 100-240V AC, 300W, 100-240V AC, 500W, 100-240V AC, 50/60 Hz 50/60 Hz... -
Page 8: Components
Quantity Ethernet cables 2 x gigabit network cables Screws for 3.5-inch drives • TS-873U, TS-873U-RP: 32 • TS-1273U, TS-1273U-RP: 48 • TS-1673U, TS-1673U-RP: 64 Screws for 2.5-inch drives • TS-873U, TS-873U-RP: 24 • TS-1273U, TS-1273U-RP: 36 • TS-1673U, TS-1673U-RP: 48 Screws for M.2 SSDs... -
Page 9: Rear Panel
TS-x73U User Guide TS-1673U Component Component Power button Expansion unit LED Status LED Drive status LED Gigabit Ethernet LED Rear Panel TS-873U, TS-1273U, TS-1673U Component Component Gigabit Ethernet port 3 USB 2.0 ports Product Overview... - Page 10 10 Gigabit Ethernet port 1 Gigabit port 4 Power port USB 3.0 ports 10 Gigabit Ethernet port 2 Reset button Maintenance port TS-873U-RP, TS-1273U-RP, TS-1673U-RP Component Component Gigabit port 3 Maintenance port Gigabit port 1 USB 2.0 ports 10 gigabit SFP+ port 1...
-
Page 11: System Board
TS-x73U User Guide System Board Component Component DIMM memory slot 4 M.2. SSD slot 1 DIMM memory slot 3 M.2. SSD slot 2 DIMM memory slot 2 PCIe 3.0 x4 DIMM memory slot 1 Front Drive Numbering TS-873U, TS-873U-RP Product Overview... -
Page 12: Installation Requirements
TS-x73U User Guide TS-1273U, TS-1273U-RP TS-1673U, TS-1673U-RP Installation Requirements Category Item Environment • Room temperature: 0 to 40˚C (32 to 104˚F) • Non-condensing relative humidity: 5 to 95% • Wet-bulb temperature: 27˚C (80.6˚F) • Flat, anti-static surface with no exposure to direct sunlight, liquids,... -
Page 13: Setting Up The Nas
TS-x73U User Guide Category Item Hardware and peripherals • Storage drives For details on compatible drives, go to https://www.qnap.com/ compatibility/. • Network cable Tools • Phillips #1 or #2 screwdriver • Anti-static wrist strap Setting Up the NAS 1. Place your NAS device in an environment that meets the requirements. -
Page 14: Installation And Configuration
• Observe electrostatic discharge (ESD) procedures to avoid damage to components. 1. Power off the NAS. 2. Remove the drive tray. • TS-873U, TS-873U-RP, TS-1273U, TS-1273U-RP 1. Pull the handle to release the tray. 2. Pull the tray out. • TS-1673U, TS-1673U-RP 1. - Page 15 4. Pull the tray out. 3. Install a drive on the drive tray. • TS-873U, TS-873U-RP, TS-1273U, TS-1273U-RP 1. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes on the bottom of the tray.
- Page 16 TS-x73U User Guide • TS-1673U, TS-1673U-RP 1. Place the drive on the tray so that the holes on the side of the drive are aligned with the holes on the side of the tray. 2. Attach the screws. Installation and Configuration...
- Page 17 TS-x73U User Guide 4. Load the drive tray into the drive bay. • TS-873U, TS-873U-RP, TS-1273U, TS-1273U-RP 1. Insert the tray into the bay. 2. Push the handle. Installation and Configuration...
- Page 18 • Observe electrostatic discharge (ESD) procedures to avoid damage to components. 1. Power off the NAS. 2. Remove the drive tray. • TS-873U, TS-873U-RP, TS-1273U, TS-1273U-RP 1. Pull the handle to release the tray. 2. Pull the tray out. Installation and Configuration...
- Page 19 TS-x73U User Guide • TS-1673U, TS-1673U-RP 1. Locate the lock. 2. Slide the lock to the left. 3. Push the gray button to release the handle. 4. Pull the tray out. Installation and Configuration...
- Page 20 TS-x73U User Guide 3. Install a drive on the drive tray. • TS-873U, TS-873U-RP, TS-1273U, TS-1273U-RP 1. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes on the bottom of the tray.
- Page 21 TS-x73U User Guide • TS-1673U, TS-1673U-RP 1. Place the drive on the tray so that the holes on the bottom of the drive are aligned with the holes on the bottom of the tray. 2. Attach the screws. Installation and Configuration...
- Page 22 TS-x73U User Guide 4. Load the drive tray into the drive bay. • TS-873U, TS-873U-RP, TS-1273U, TS-1273U-RP 1. Insert the tray into the bay. 2. Push the handle. Installation and Configuration...
- Page 23 • Observe electrostatic discharge (ESD) procedures to avoid damage to components. Note QNAP recommends installing heatsinks on the M.2 SSD controllers to enhance cooling efficiency and to ensure consistent performance. 1. Power off the NAS.
- Page 24 TS-x73U User Guide b. Slide the cover away from the NAS using the handle. c. Lift the cover. 5. Install a heatsink on the M.2 SSD controller. a. Locate the controller on the M.2 SSD. The controller location varies depending on the model and manufacturer of the M.2 SSD. For details, refer to the documentation or contact the manufacturer.
- Page 25 TS-x73U User Guide c. Install the heatsink on the controller. 6. Insert a riser screw for a 2260 M.2 SSD. 7. Install the M.2 SSD. a. Insert the M.2 SSD into the slot. Installation and Configuration...
- Page 26 TS-x73U User Guide b. Attach the flat head screw to the riser screw. 8. Attach the top cover. a. Place the cover on the NAS. Installation and Configuration...
- Page 27 TS-x73U User Guide b. Slide the cover toward the NAS. c. Tighten the screws. Installation and Configuration...
-
Page 28: Installing Expansion Cards
PCIe expansion card. QNAP-branded expansion cards purchased from the company website are shipped with the brackets necessary to fit all QNAP NAS models. The TS-873U, TS-873U-RP,TS-1273U, and TS-1273U-RP use low- profile brackets, and the TS-1673U and TS-1673U-RP use full-height brackets. - Page 29 TS-x73U User Guide 3. Disconnect the power cord from the electrical outlet. 4. Disconnect all cables and external attachments. 5. Remove the top cover. a. Loosen the screws on the back of the cover. b. Slide the cover away from the NAS using the handle c.
- Page 30 7. Optional: Attach the QNAP bracket to the expansion card. a. Remove all screws of the existing bracket. b. Carefully pull the bracket away from the card. c. Attach the QNAP bracket to the card using the same screws. Installation and Configuration...
- Page 31 TS-x73U User Guide TS-1673U, TS-1673U-RP TS-873U, TS-873U-RP, TS-1273U, TS-1273U-RP d. Verify that the bracket does not move. 8. Install the expansion card. a. Hold the expansion card by the edges. b. Insert the card into the slot. c. Attach the screw.
- Page 32 TS-x73U User Guide 9. Attach the top cover. a. Place the cover on the NAS. b. Slide the cover toward the NAS. Installation and Configuration...
-
Page 33: Expansion Units
TS-x73U User Guide c. Tighten the screws. 10. Connect all cables and external attachments. 11. Connect the power cord to the electrical outlet. 12. Power on the NAS. Expansion Units The TS-x73U supports both SAS and USB expansion units. Installation and Configuration... - Page 34 To use SAS expansion units, you must install an SAS-12G2E storage expansion card on the NAS and then connect the expansion units using mini-SAS SFF-8644 cables. You can purchase storage expansion accessories from QNAP or an authorized reseller. For details, go to https://shop.qnap.com/.
- Page 35 TS-x73U User Guide 2. Connect the expansion units to the NAS with mini-SAS SFF-8644 cables using the following topology. 3. Power on the expansion units. 4. Verify that the expansion units are recognized by the NAS. a. Log on to QTS as administrator. b.
-
Page 36: Replacing Memory Modules
The NAS has four memory slots. You can increase the memory capacity of the NAS by upgrading the memory modules. When using multiple modules, use only QNAP modules of the same type and capacity to maintain system performance and stability. You can purchase QNAP memory modules from authorized resellers. - Page 37 TS-x73U User Guide 2. Disconnect the power cord from the electrical outlet. 3. Disconnect all cables and external attachments. 4. Remove the top cover. a. Loosen the screws on the back of the cover. b. Slide the cover away from the NAS using the handle. c.
- Page 38 TS-x73U User Guide 6. Install a new memory module. a. Align the notch with the ridge in the slot. b. Insert the module into the slot and then carefully press down on the module. c. Push the retention clips inward to lock the module into place. 7.
- Page 39 TS-x73U User Guide b. Slide the cover toward the NAS. c. Tighten the screws. Installation and Configuration...
-
Page 40: Hot-Swapping Redundant Power Supply Units
TS-x73U User Guide 8. Connect all cables and external attachments. 9. Connect the power cord to the electrical outlet. 10. Power on the NAS. 11. Verify that the module is recognized by the NAS. a. Log on to QTS as administrator. b. - Page 41 TS-x73U User Guide 3. Insert the new PSU. 4. Connect the power cord to the PSU and the electrical outlet. 5. Power on the NAS. 6. Optional: Enable alerts for PSU failures. a. Log on to QTS as administrator. b. Go to Control Panel > System > Hardware > General . c.
-
Page 42: Rail Kits
Rail kits are not included with the NAS and must be purchased separately. For details, contact an authorized reseller or go to http://shop.qnap.com. You can find installation information in the rail kit package. QTS Installation The TS-x73U supports the QNAP QTS operating system. You can install QTS using any of the following methods. Method Description... - Page 43 ASCII characters. 7. Click Next. 8. Specify the time zone, date, and time. QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard. 9. Click Next. 10. Select Obtain an IP address automatically (DHCP).
-
Page 44: Installing Qts Using The Cloud Key
1. Power on the NAS. 2. Connect the NAS to the internet. 3. Go to the QNAP Cloud Installation page using one of the following methods: • On your computer, go to http://install.qnap.com/. • Scan the QR code on the NAS using a mobile device. - Page 45 ASCII characters. 11. Click Next. 12. Specify the time zone, date, and time. QNAP recommends connecting to an NTP server to ensure that the NAS follows the Coordinated Universal Time (UTC) standard. 13. Click Next. 14. Select Obtain an IP address automatically (DHCP).
- Page 46 TS-x73U User Guide 21. Select No. Note • Enabling the multimedia functions allows you to install multimedia applications after configuring the disks in Storage Manager. • For details on enabling multimedia functions on QTS, see the System Administration section of the QTS User Guide. 22.
-
Page 47: Basic Operations
TS-x73U User Guide 4. Basic Operations This chapter describes basic NAS operations. Power Button Operation User Action Result Power on Press the button once. The NAS powers on. Power off Press and hold the button for 1.5 The NAS powers off. seconds. - Page 48 TS-x73U User Guide Status Description System Status Flashes green and red • The drive is being formatted. alternately every 0.5 • The NAS is being initialized. seconds • The operating system is being updated. • RAID rebuilding is in progress. •...
-
Page 49: Beep Alarm
TS-x73U User Guide Beep Alarm Duration Frequency Description Short beep (0.5 seconds) 1 • The NAS is starting up. • The NAS is shutting down (software shutdown). • The user pressed the Reset button. • The operating system was updated. The user tried to copy the NAS data to the external storage device from the front USB port, but the data cannot be copied. -
Page 50: Troubleshooting
TS-x73U User Guide 5. Troubleshooting This chapter describes basic troubleshooting information. Forcing Qfinder Pro or myQNAPcloud to Locate the NAS If Qfinder Pro or myQNAPCloud is unable to locate the NAS during QTS installation, the drives or data may be faulty. 1. -
Page 51: Recovering Unintentionally Removed Healthy Drives
RAID Recovery Support Maximum Number of Removed Drives Single JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10 Support and Other Resources QNAP provides the following resources: Resource Documentation http://docs.qnap.com Help Desk http://helpdesk.qnap.com Downloads http://download.qnap.com Community Forum http://forum.qnap.com... -
