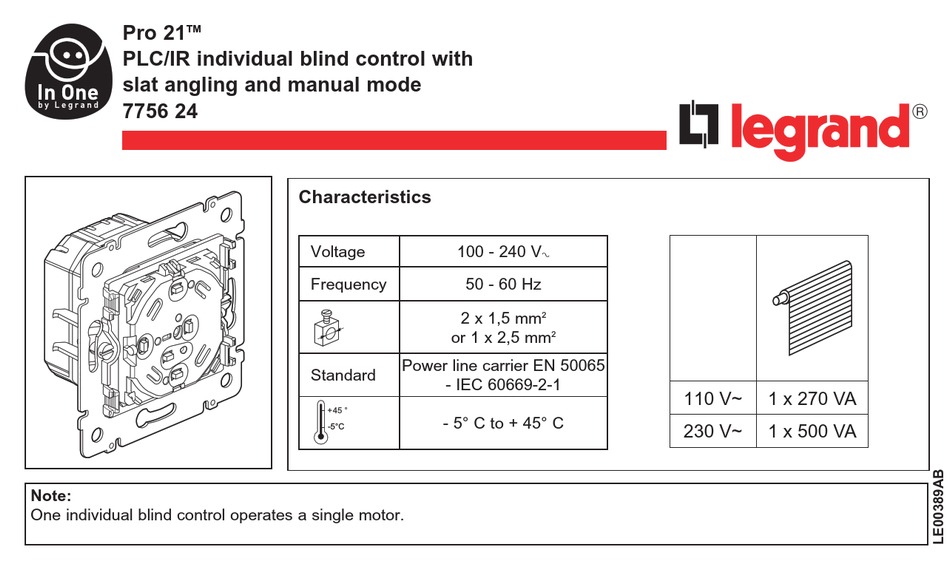

Pro 21
TM
PLC/IR individual blind control with
slat angling and manual mode
7756 24
Note:
One individual blind control operates a single motor.
Characteristics
Voltage
100 - 240 VA
Frequency
50 - 60 Hz
2 x 1,5 mm
or 1 x 2,5 mm
Power line carrier EN 50065
Standard
- IEC 60669-2-1
- 5° C to + 45° C
-5°C
2
2
110 V~
230 V~
1 x 270 VA
1 x 500 VA
Advertisement
Related Manuals for LEGRAND In One Pro 21 7756 24
Summary of Contents for LEGRAND In One Pro 21 7756 24
- Page 1 Pro 21 PLC/IR individual blind control with slat angling and manual mode 7756 24 Characteristics Voltage 100 - 240 VA Frequency 50 - 60 Hz 2 x 1,5 mm or 1 x 2,5 mm Power line carrier EN 50065 Standard - IEC 60669-2-1 110 V~ 1 x 270 VA...
- Page 2 Characteristics (continued) L > 50 mm L = 40 mm L < 40 mm...
- Page 3 Before carrying out the installation, read the instructions and take account of the product’s specific mounting location. Do not open up the device. All Legrand products must be exclusively opened and repaired by personnel trained and appro- ved by LEGRAND. Any unauthorised...
- Page 4 buttons controls all the opening points (roller shutter or blind) in the “In One by Legrand” installation. This option lets you check the correct operation and connection of all the blinds. Control «Manual» button...
- Page 5 Operation Blind Open <1 s Stop STOP <1 s Close <1 s...
- Page 6 Operation (continued) Slat angling Open >1 s Close >1 s...
- Page 7 Operation (continued) «Override» function One press on the «manual» button excludes Pressing the button again reintegrates the product this product from the scenarios (it operates only into the scenarios. locally and is no longer remotely controlled). The The «manual» indicator light goes off. «manual»...
- Page 8 Operation (continued) Example: creating a general control: Control an individual blind control using a centralised blind control Transmitter Receiver Centralised blind control Individual blind control e.g. 7756 26 e.g. 7756 24...
- Page 9 Operation (continued) Note: Only the roll-up button has to be learnt; the stop-roll-down buttons are learnt automatically. The indicator light The indicator light The indicator light The indicator switches off flashes slowly flashes quickly light flashes Transmitter Receiver(s) LEARN indicator LEARN indicator Blind Open the scenario...
- Page 10 Operation (continued) Transmitter LEARN indicator Receiver(s) LEARN indicator Blind Add the individual control To add several individual controls, repeat operations for each receiver. Save the scenario...
- Page 11 Operation (continued) Example: Modification of the previous general control by adding an extra individual blind B control. Blind A Transmitter Centralised blind control e.g. 7756 26 Blind B Receiver Individual blind control e.g. 7756 24...
- Page 12 Operation (continued) Blind A Blind B Transmitter LEARN indicator Receiver(s) LEARN indicator Blind LEARN indicator Blind Open the scenario Reminder of the All the products existing of the existing scenario scenario blink...
- Page 13 Operation (continued) Blind A Blind B Transmitter LEARN indicator Receiver(s) LEARN indicator Blind LEARN indicator Blind Add blind B Individual blind control Save the scenario A and B...
- Page 14 Operation (continued) Deleting one receiver from all the scenarios (on the Receiver) 10 s Restore the product to factory settings...
- Page 15 Operation (continued) Problem Cause Solution The Learn indicator light comes on for Learning is impossible. Install compatible products. 5 seconds. The Learn indicator light comes on for The number of transmitters saved is Delete unused scenarios. 10 seconds. greater than 32. During learning, the Learn indicator If there is no activity, the learning Restart the learning procedure.
