LEGRAND Wattstopper LMBC-650 Quick Start Manual

No: 27970 – 03/20 rev. 4
Catalog Number • Numéro de Catalogue • Número de Catálogo: LMBC-650
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
This unit is preset for Plug n' Go™ operation, adjustment is
optional.
For full operational details, adjustment and more features of the product,
see the DLM System Installation Guide provided with Wattstopper room
controllers, and also available at www.legrand.us/wattstopper.
Installation shall be in accordance with all applicable regulations,
local and NEC codes. Wire connections shall be rated suitable for the
wire size (lead and building wiring) employed.
For Class 2 DLM devices and device wiring: To be connected to a Class
2 power source only. Do not reclassify and install as Class 1, or Power
and Lighting Wiring.
DESCRIPTION AND OPERATION

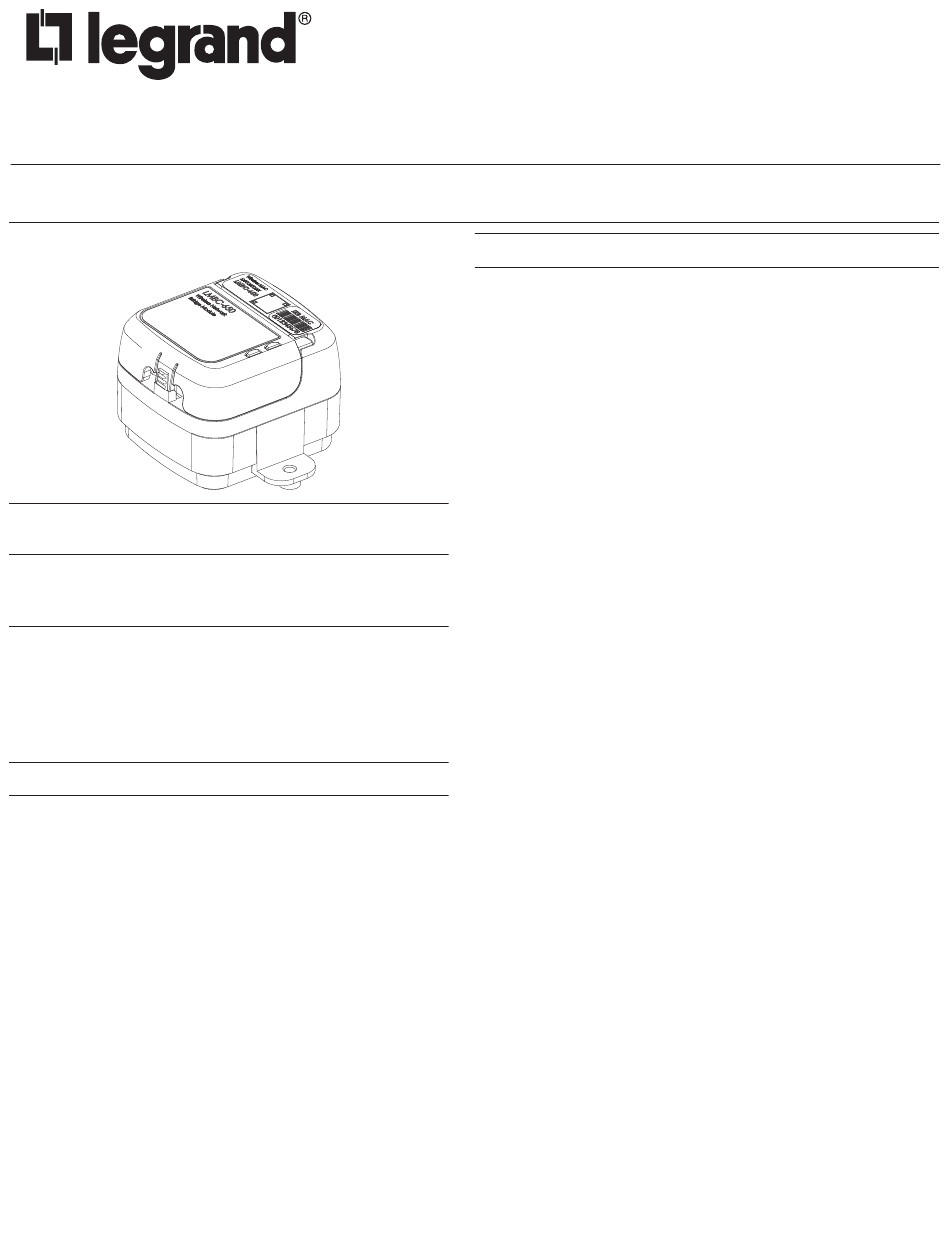

The LMBC-650 Wireless Network Bridge module provides a
network connection for a group of Wattstopper Digital Lighting
Management (DLM) Local Network room level devices. The
LMBC-650 allows the creation of a local network with wired
DLM devices.
The DLM local network must include at least one wired room/
load controller. When connecting a LMBC-650 to the LMBR-
650 DLM network and then either using LMCS-100 or DLM
Dashboard software, the system can expose BACnet protocol to
revel the status and parameters of all connected devices to the
broader 3rd party network.
Wattstopper
DLM Wireless Network Bridge Module with IPv6/Bluetooth
Quick Start Guide • Guide de démarrage rapide • Guía de inicio rápido

SPECIFICATIONS

Voltage ........................................................................................24VDC
Current Consumption .......................................................................20mA
Power Supply .................Wattstopper Room Controller or Power Booster
Connection to the DLM Local Network .................................2 RJ-45 ports
Segment Network ......................................... BACnet IPv6 Mesh Network
DLM Local Network characteristics when using LMRC-1xx/2xx room
controllers:
Low voltage power provided over Cat 5e cable (LMRJ); max current
800mA. Supports up to 64 load addresses, 47 communicating
devices including up to 4 LMRC-10x, LMPC series, LMPB-100,
and/or LMPL-101 controllers. Free topology up to 1,000' max.
Wireless Radio ...................................... Single, Concurrent 802.15.4 and
..................................................Bluetooth Low Energy, 2.4GHz
Wireless Communication
IPv6 Mesh (6LoWPAN) Range
.................................100 ft. between LMBC-650 and LMBR-650
60' max. between LMBC-650 and wireless battery powered device
Bluetooth low energy Range .............................................. up to 30 ft.
Wireless Encryption ..........................................AES-128 bit symmetric key
Environment
Operating Temperature ............... ..............32° to 158°F (0° to 70°C)
Storage Temperature .............................. 23° to 176°F (-5° to 80°C)
Relative Humidity .................. ................ 5 to 95% (non condensing)
Other
Compatible Border Router ...........................Wattstopper LMBR-650
BACnet IPv6 capable
Compliance/Regulatory
UL2043 plenum rated, FCC Part 15, RoHS
Bluetooth certified
®
®
