LEGRAND Wattstopper ELCU-200 Installation Instructions

No: 23996 – 10/17 rev. 1
Catalog Number • Numéro de Catalogue • Número de Catálogo: ELCU-200
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
ELCU-200-U is BAA and TAA compliant (Product produced in the U.S.)
Cir.#_______
Circle
CUT-OUT

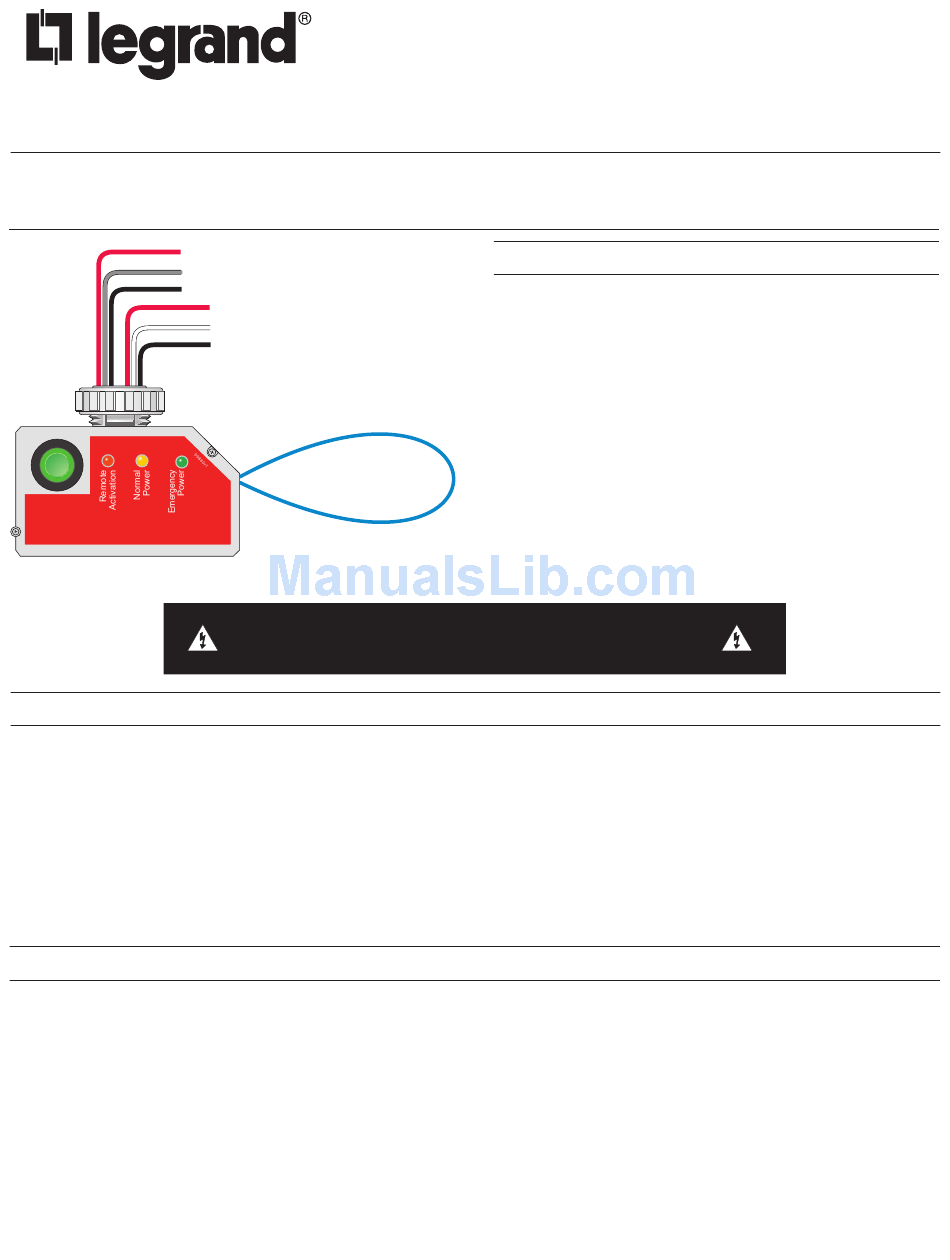

Push to Test
EMERGENCY CIRCUIT
When using electrical equipment always follow basic safety precautions, including:
• READ AND FOLLOW ALL SAFETY INSTRUCTIONS–SAVE THESE INSTRUCTIONS.
• Mount only to an approved electrical enclosure.
• Do not use near gas or electric heaters.
• Equipment should be mounted in locations and at heights where it will not readily be subjected to tampering by unauthorized
personnel.
• Use of accessory equipment not recommended by the manufacturer may cause an unsafe condition.
• Do not use this equipment for other than the intended use.
The ELCU-200 Emergency Lighting Control Unit allows lighting control devices for normal lighting and to also control emergency
lighting installed within the area. The ELCU is designed for lighting control in areas where emergency lighting fixtures are connected
on dedicated emergency lighting circuits that are typically ON 24 hours per day. The ELCU allows ON/OFF control of the emergency
lighting along with the normal room lighting to save energy.
The intended operation of the ELCU is to guarantee that the emergency lighting is ON whenever normal power to the controlled circuit
is interrupted. While normal power is present, the ELCU allows control of the emergency lighting by a device such as an occupancy
sensor, a relay, a dimmer, or a wall switch.
TURN POWER OFF AT CIRCUIT BREAKER BEFORE INSTALLING.
ONLY QUALIFIED ELECTRICIANS SHOULD INSTALL THE ELCU-200.

IMPORTANT SAFEGUARDS

DESCRIPTION
Wattstopper
Emergency Lighting Control Unit
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Voltages ............................................................ 120/277VAC 50/60Hz
Max Load Requirements
Ballast .......................................................... 20A @120/277VAC
Incandescent ....................................................... 10A @120VAC
Motor .................................................................. 1HP @120VAC
Remote Activation ...................... 24VDC sourced, dry contact closure
Integral Control ..........................................Push-to-Test button on unit
Conformance ................. UL924, NEC, OSHA, NFPA life safety codes
Environment ...........................................32º-122ºF (0º-50ºC) Ambient
Dimensions ................................................... 3.0"L x 2.16"H x 1.6W"W
UL 2043 Plenum Rated
WARNING
®

SPECIFICATIONS
