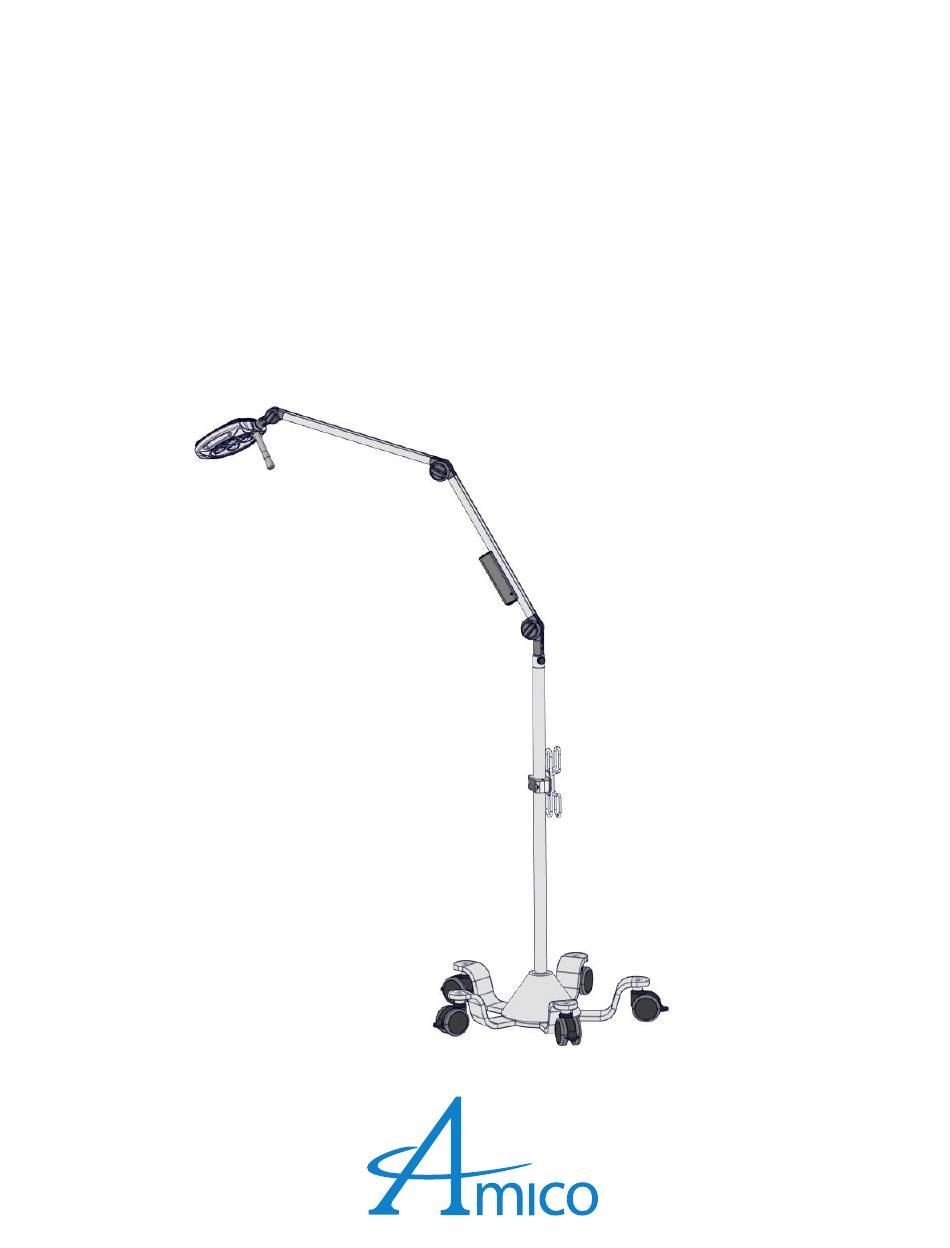

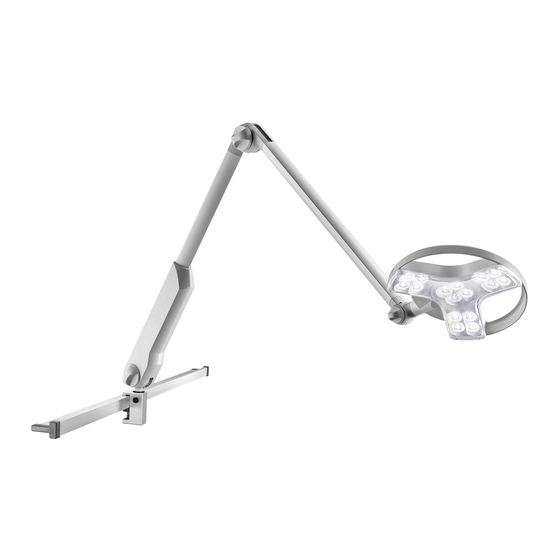

- Page 1 Operating and Maintenance Instructions Gamma LED Exam Light Floorstand w w w . a m i c o . c o m...
-
Page 2: Table Of Contents
Contents Introduction Symbols Used in This Manual Safety Instructions Scope of Delivery Installing the Floorstand 9-10 Operation Disinfecting, Cleaning and Sterilization Maintenance Notes on the Arm Systems Spare Parts Troubleshooting Disassembly Technical Data of the Lighthead Technical Data of the Arm System Warranty... -
Page 3: Introduction
This installation manual gives you instructions on how to install the Gamma LED Light for the floorstand version of your purchase. For instructions on operation, maintenance and further description of the product please refer to the Operation and Maintenance Manual included. Please read the following instructions very carefully and follow the safety instructions and requirements. www.amico.com... -
Page 4: Symbols Used In This Manual
Neutral conductor/return conductor for the electrical current Live conductor Storage humidity Storage temperature Disposal Manufacturer Do not Lean Read Manual Do not Step On Trademarks: All trade names mentioned in these instructions are the exclusive property of the relevant manufacturers. Amico Lighting Solutions... -
Page 5: Safety Instructions
• These instructions are for the Amico Lights Gamma Series LED lights. This includes ceiling mount, rail mount and wall mount equipment. - Page 6 • The screws must be carefully tightened using a torque wrench in accordance with the recommendations of the manufacturer of the fastening anchors. Gamma LED Floorstand • Mounting material not included in delivery. • The necessary technical information can be found in the installation section of this manual. Amico Lighting Solutions...
- Page 7 The above is an explosion hazard warning symbol. Non-compliance with this symbol may result in damages or injuries due to explosion. ELECTRIC SHOCK The above is an electric shock warning symbol. Non-compliance with this symbol may result in damages or injuries due to electric shock. www.amico.com...
-
Page 8: Scope Of Delivery
Scope of Delivery Floorstand Included 1 x Arm with a Lighthead 1 x Post with an Adaptor and a Cable holder 1 x 3" Screw 1 x Counter Weight 1 x Floor Stand Base 6 x Casters Amico Lighting Solutions... -
Page 9: Installing The Floorstand
• The electrical mains must be isolated from the by an external all-pole switch. DANGER Risk of injury from falling parts. • Mounting must be performed by two people. DANGER Use protective equipment in line with tool manufacturer’s instructions. www.amico.com... - Page 10 Insert the floor stand post in to the counter weight, all the way until the bottom, and secure the bottom with a three inch (3) screw. Insert the arm and secure the arm and the post with the knob. Amico Lighting Solutions...
-
Page 11: Operation
• Wind the power cable to the cable retainers when it is not being used. 1. Plug in cable 2. Install the cable to the mains supply. 3. Switch on key pad. Gamma LED Wall mount Switch on the Light from control pad at lighthead. Power (On/Off ) Decrease Brightness Increase Brightness www.amico.com... -
Page 12: Disinfecting, Cleaning And Sterilization
The external components of the light can be disinfected with the following diluted products: • Lysoformin • Dismozon • Hexaquart plus • Sagrotan – fast disinfecting cleaner • Tuffie5 NOTICE: The local government regulations for disinfection must also be observed in addition to these instructions. Amico Lighting Solutions... -
Page 13: Maintenance
• The connector cable must be checked for damage at least once per year. NOTE: Maintenance and repairs must only be carried out by qualified electricians. NOTE: Gamma is not serviceable or repairable by anyone other than the manufacturer. NOTE: Locking mechanism should be provided by contractor as means of isolation. www.amico.com... -
Page 14: Notes On The Arm Systems
• Paint damage • Cracks in plastic parts • Deformation of the support system • Loosening of parts Every two (2) years: • The securing element of the cantilever arm must be checked and greased by a qualified professional. Amico Lighting Solutions... -
Page 15: Spare Parts
Do not dispose of this product with normal refuse. Dispose of the product at a recycling center or return it to a dealer with a disposal service depending on local regulations. Cut off the cable flush with the housing. www.amico.com... -
Page 16: Technical Data Of The Lighthead
Mounting Options Ceiling, Wall, Floorstand, Rail Ceiling, Wall, Floorstand, Rail Ceiling, Wall, Floorstand, Rail NOTE: Essential Performance Parameters: - Delivery of minimum and adequate illumination on the diagnostic field. - Limitation of energy in the diagnostic field. Amico Lighting Solutions... -
Page 17: Technical Data Of The Arm System
Gamma LED Swing Wall Mount 2.7 kg (6 lbs) Operating mode: Continuous Operation Classification: Gamma LED Swing Class II Classification under 93/42 EEC – Annex IX Class II Safety testing according to: CSA C22.2 #60601-1 IEC/EN 60601-1 2nd. UL 60601-1 www.amico.com... -
Page 18: Warranty
Amico Lights Corporation warrants its products against defective materials and workmanship for twelve (12) months from the date of shipment. Within this period, Amico Lights Corporation will repair or replace any part on site or at the factory which is proven to be defective at Amico Lights Corporation’s cost. - Page 19 Notes...
- Page 20 Amico Lighting Solutions | 122-B East Beaver Creek Road, Richmond Hill, ON L4B 1G6, Canada Toll Free Phone: 1.877.462.6426 | Toll Free Fax: 1.866.440.4986 | Tel: 905.764.0800 | Fax: 905.764.0862 Email: info@amico.com | www.amico.com LT-INSTAL-INSTR-GAMMA-FLOORSTAND-LED 07.24.20...
