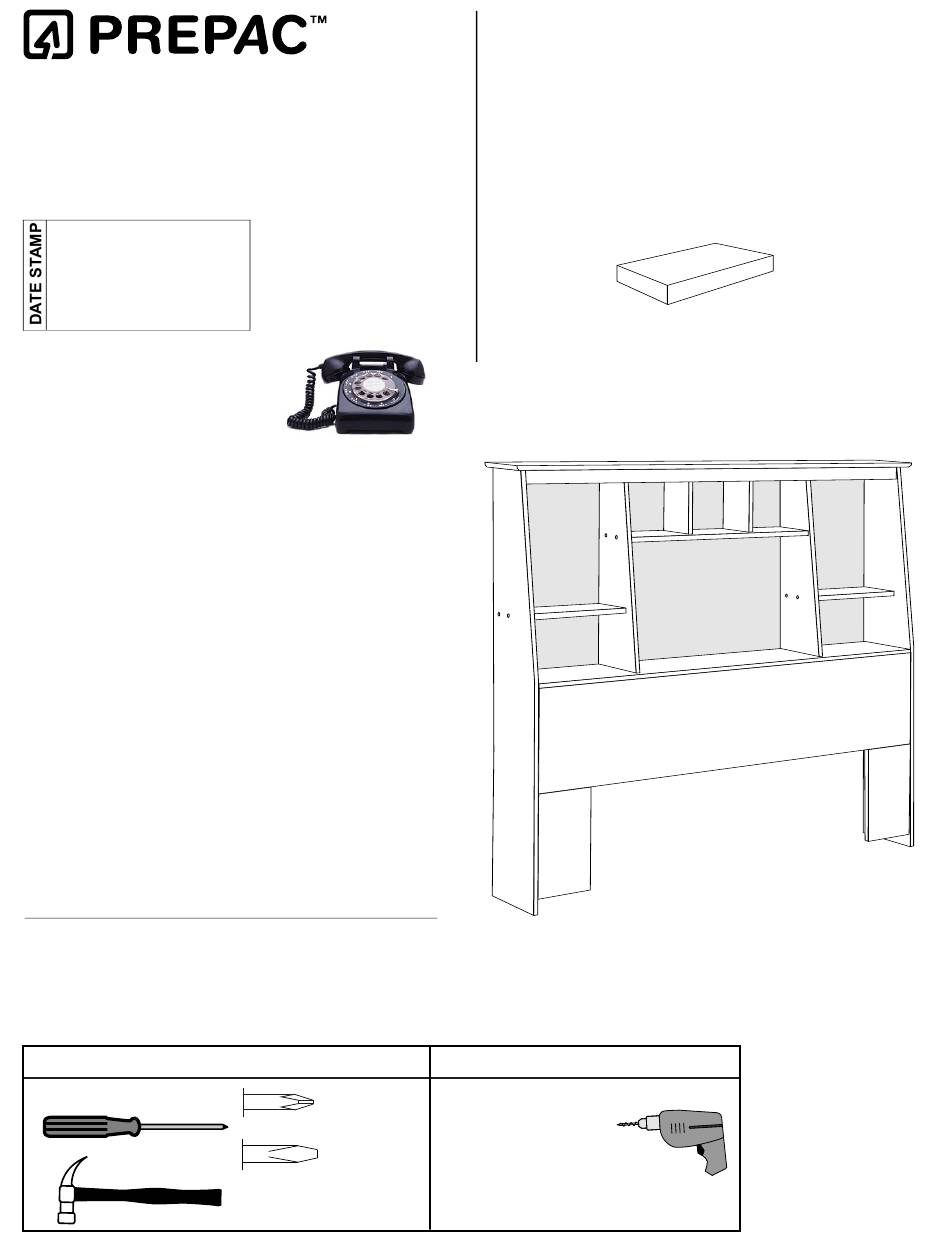

Assembly Instructions
CALL US FIRST
1-877-PREPAC1
1-877-773-7221
Mon - Fri
7am - 4pm PST
10am - 7pm EST
•
For help with assembly
•
If you have received a damaged or defective part or
are missing hardware.
We will process replacement parts
less. Parts are shipped via
Before you call please:
1) Record the following information from the shipping
label on the outside of the box. You will need it for
warranty purposes:
• Ship To Name
• Sales Order Number
2) Note the
product model number.
3) Review the contents of your shipment to determine
what you are missing.
Online Option:
Fill out the Replacement Parts Order form in the Product
Support section of our website: www.prepacmfg.com
Required Tools
Screwdrivers
in 2 business days or
UPS Ground or mail.
Phillips Head
Flat Head
Hammer

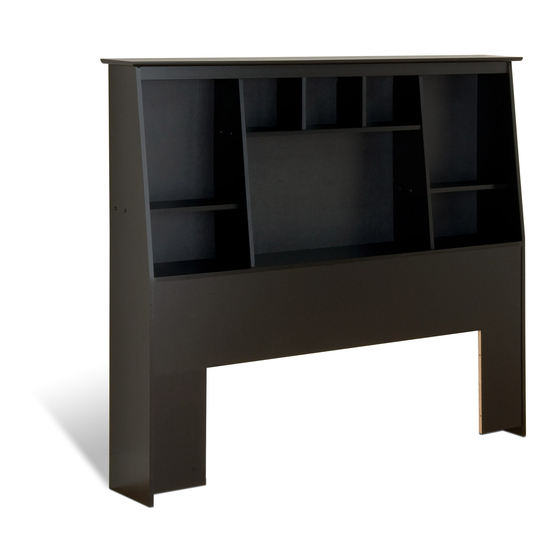

Tall Double / Queen
Headboard
Model # SH-6656
This product is shipped in
Optional Tools
Using a power screwdriver
will speed up assembly.
Caution
Do not over tighten any screw.
The last few turns of each screw
should be done very slowly or by hand.
1 carton
1 of 1
Prepac Manufacturing Ltd.
6705 Dennett Place
Delta, BC V4G 1N4
LB-0634
2010-04-21
Advertisement
Table of Contents
Related Manuals for Prepac SH-6656
Summary of Contents for Prepac SH-6656
- Page 1 Tall Double / Queen Headboard Model # SH-6656 Assembly Instructions This product is shipped in 1 carton 1 of 1 CALL US FIRST 1-877-PREPAC1 1-877-773-7221 Mon - Fri 7am - 4pm PST 10am - 7pm EST • For help with assembly •...
-
Page 2: Table Of Contents
Hardware Identification Screw Cover Caps 2" Confirmat Screws Green Twister Double End 15mm Zinc Cam (14) (20) Dowel (20) Connecting Rod (2) (24) RM-0226 black RM-0001 RM-0501 RM-0567 RM-0103 RM-0620 cherry RM-0304 espresso #8 - 9/16" Washerhead ¾” Nail (40) Levelling Feet (4) Safety Bracket (2) Plastic Dowels (8) -
Page 3: Top
STEP 1 Estimated Time: 5 minutes Lie stabilizers and large fixed shelf on the floor Insert cams into all pieces NOTE: Shaded areas represent the UNFINISHED side of the piece. Large Fixed Shelf Finished Edge (Front) FRONT Large Stabilizer Left Small Stabilizer Right Small Stabilizer... -
Page 4: Inner Gable
STEP 2 Estimated Time: 5 minutes Insert double ended connecting rods into the large stabilizer (C12) and tighten cam. Insert wooden dowels into the large stabilizer (C12). Slide the left small stabilizer (C13) onto the other end of the double ended connecting rod and tighten the cam. Repeat for the right small stabilizer (C14). - Page 5 STEP 3 Estimated Time: 5 minutes Insert cams into holes on the top of the left and right gables and left and right sides Insert green twister dowels into remaining holes on the left and right sides Left Gable Right Gable Right Side Left Side...
-
Page 6: Levelling Feet
STEP 4 Estimated Time: 5 minutes Position the large fixed shelf as shown with the finished edge on the floor. Attach ONE SIDE ONLY to both stabilizers and to the fixed shelf. Tighten cams slightly. Make sure the stabilzers and shelf are positioned squarely with the side. Fully tighten cams using a flathead screwdriver. - Page 7 STEP 5 Estimated Time: 5 minutes Repeat to attach the 2nd side. Make sure the pieces are square Tightening Cams Locked Unlocked Turn 210° Page 7 of 16...
- Page 8 STEP 6 Estimated Time: 5 minutes Attach “L” brackets with Washerhead Screws to secure large stabilizer to fixed shelf #8 - 9/16" Washerhead Screws Fixed Shelf Large Stabilizer Hammer levelling feet to the bottom of each side. Page 8 of 16...
- Page 9 STEP 7 Estimated Time: 10 minutes Assemble Center Shelf Section: Attach the two inner gables to the inner fixed shelf (C6) with Confirmat screws. Add screw cover caps to finish. Make sure all Finished Edges are facing the UP FRONT Attach inner fixed shelf to left (C4) and right (C7) gables with Confirmat screws.
-
Page 10: Plastic Dowels
STEP 8 Estimated Time: 5 minutes Attach the center shelf assembly to the large fixed shelf with Confirmat screws. Page 10 of 16... - Page 11 STEP 9 Estimated Time: 5 minutes Attach outer fixed shelves with Confirmat screws as shown. Finish with screw cover caps. Page 11 of 16...
- Page 12 STEP 10 Estimated Time: 10 minutes GENTLY hammer plastic dowels HALFWAY into the following holes on the underside of the top: • The 4 holes along the front to attach top molding • The 4 holes in the center of the top to attach to inner gables Back Position the front molding in place and press down firmly to secure.
- Page 13 STEP 11 Estimated Time: 5 minutes Lower top and gables onto left and right sides and tighten cams Tightening Cams Locked Unlocked Turn 210° Page 13 of 16...
- Page 14 STEP 12 Estimated Time: 5 minutes Estimated Time: 5 minutes Attach Backer with nails Position nails in the center of the board Page 14 of 16...
- Page 15 STEP 13 Estimated Time: 5 minutes Move headboard into desired location and position either Double / Full or Queen bed against headboard. NOTE: if moving headboard in a carpeted room, lift headboard (with 2 people). Do Not Drag. Page 15 of 16...
-
Page 16: Screw Cover Caps 15Mm Zinc Cam
Furniture Care Q&A How do I clean your products? We recommend that you simply wipe your products with a clean, damp cloth and then dry immediately with another clean cloth to maximize the life span and look of your unit Can I paint or varnish your products? Our products are made from durable composite woods with a laminate finish and therefore should not be painted or varnished.
