Assembly Instructions
For the following collections:
Sonoma, Monterey, Montego,
Broadway, Chelsea, Winslow
CALL US FIRST
1-877-PREPAC1
1-877-773-7221
Mon - Fri
7am - 4pm PST
10am - 7pm EST
•
For help with assembly
•
If you have received a damaged or defective part or
are missing hardware.
We will process replacement parts
less. Parts are shipped via
Before you call please:
1) Record the following information from the shipping
label on the outside of the box. You will need it for
warranty purposes:
• Ship To Name
• Sales Order Number
2) Note the
product model number.
3) Review the contents of your shipment to determine
what you are missing. This unit is shipped in 2
cartons. Make sure you have received both.
Online Option:
Fill out the Parts Order Form on our website.
Go to www.prepacmfg.com and choose
Parts Order from the Support menu
Required Tools
Screwdrivers
in 2 business days or
UPS Ground or mail.
Phillips Head
Flat Head
Hammer
Double / Queen
Headboard

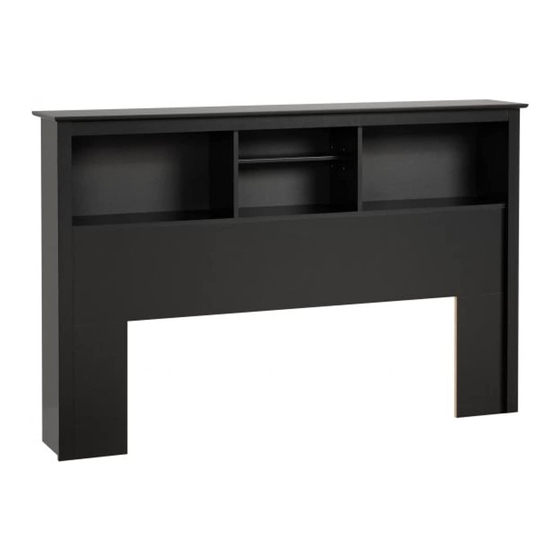

Model # SH-6643
This product is shipped in
Optional Tools
Using a power screwdriver
will speed up assembly.
Caution
Do not over tighten any screw.
The last few turns of each screw
should be done very slowly or by hand.
1 carton
1 of 1
Prepac Manufacturing Ltd.
6705 Dennett Place
Delta, BC V4G 1N4
LB-0532-R
2007-06-20
Advertisement
Related Manuals for Prepac SH-6643
Summary of Contents for Prepac SH-6643

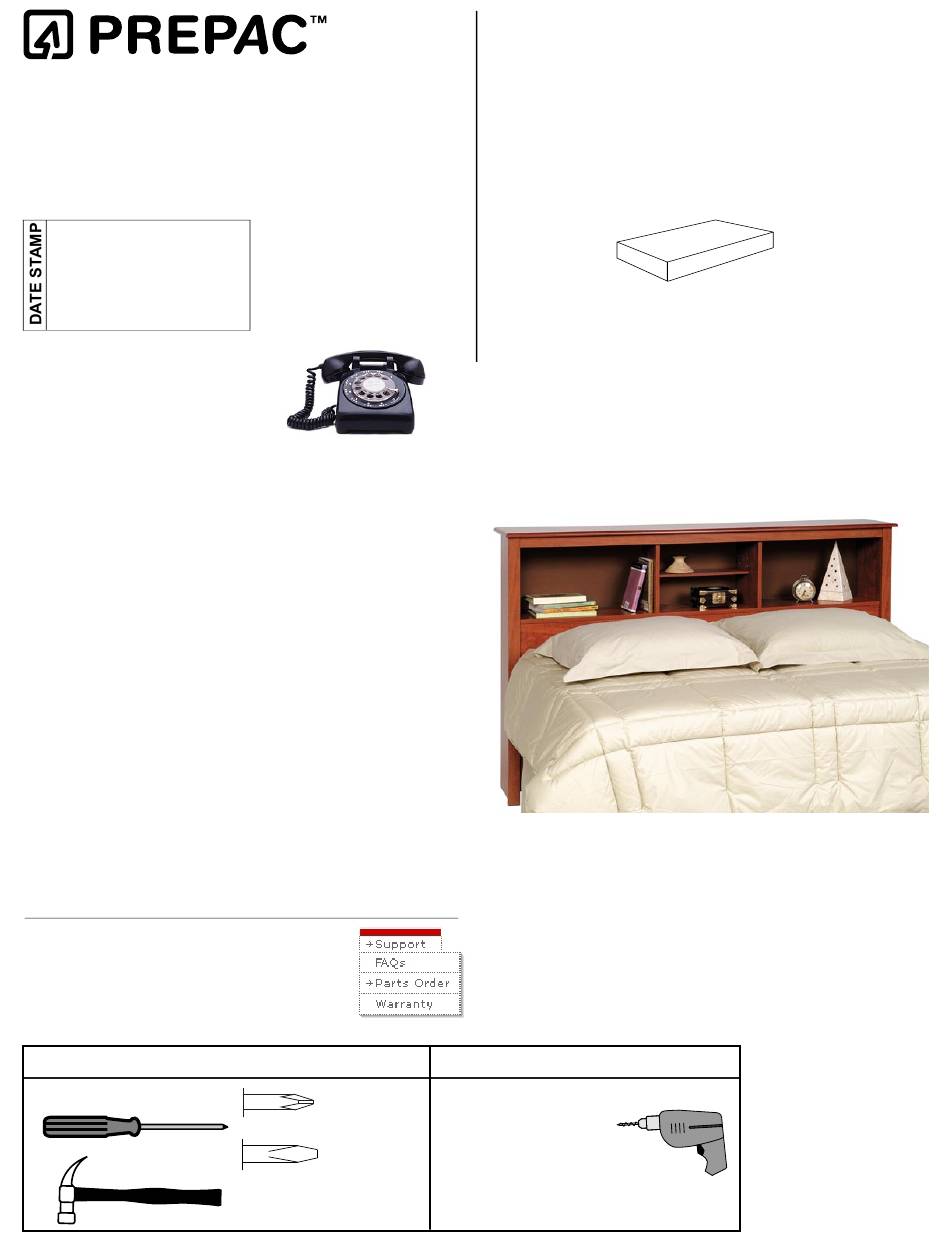

- Page 1 Double / Queen Headboard Assembly Instructions Model # SH-6643 For the following collections: This product is shipped in Sonoma, Monterey, Montego, Broadway, Chelsea, Winslow 1 carton 1 of 1 CALL US FIRST 1-877-PREPAC1 1-877-773-7221 Mon - Fri 7am - 4pm PST 10am - 7pm EST •...
-
Page 2: Hardware Identification
Hardware Identification 2" Confirmat Screws (4) Metal Dowel Pins (4) Plastic Dowels (14) Green Twister Dowel (16) RM-0001 RM-0014 RM-0072 RM-0501 ¾” Nail (24) Levelling Feet (4) #8 - 9/16" Washerhead Safety Bracket (2) 15mm Zinc Cam (16) RM-0022 RM-0139 Screws (4) RM-0515 RM-0103... - Page 3 STEP 1 Estimated Time: 5 minutes Lie stabilizers and fixed shelf on the floor Insert cams into all pieces NOTE: Shaded areas represent the UNFINISHED side of the piece. Fixed Shelf Finished Edge (Front) Stabilizers Page 3 of 16...
- Page 4 STEP 2 Estimated Time: 5 minutes Insert cams into holes on the top of the left and right sides Insert green twister dowels into remaining holes on the left and right sides There are 3 hole on the front edge of the left and right sides. Right Side Left Side There are 3 hole on the front...
- Page 5 STEP 3 Estimated Time: 5 minutes Position the fixed shelf as shown with the finished edge on the floor. Position both stabilizers with the finished side down. Attach ONE SIDE ONLY to both stabilizers and to the fixed shelf. Tighten cams slightly.
- Page 6 STEP 4 Estimated Time: 5 minutes Repeat to attach the 2nd side. Make sure the pieces are square Fixed Shelf Tightening Cams Locked Unlocked Turn 210° Page 6 of 16...
- Page 7 STEP 5 Estimated Time: 5 minutes Attach “L” brackets with Washerhead Screws to secure front panels to fixed shelf #8 - 9/16" Washerhead Screws Fixed Shelf Stabilizers Hammer levelling feet to the bottom of each side. Levelling Feet Page 7 of 16...
- Page 8 STEP 6 Estimated Time: 4 minutes GENTLY hammer plastic dowels HALFWAY into all holes on the underside of the top Position the gables so the finished edge faces the finished edge of the top and the shelf holes face inwards. Then press down firmly until they are attached.
- Page 9 STEP 7 Estimated Time: 5 minutes Position the front molding in place and press down firmly to secure. STEP 8 Estimated Time: 5 minutes Screw in green twister dowels into remaining holes on the top Page 9 of 16...
- Page 10 STEP 9 Estimated Time: 5 minutes Lower top and gables onto left and right Tightening Cams sides and tighten cams Locked Unlocked Turn 210° FRONT Page 10 of 16...
- Page 11 STEP 10 Estimated Time: 5 minutes Attach gables to fixed shelf with Confirmat screws FRONT Confirmat Screws Page 11 of 16...
- Page 12 STEP 11 Estimated Time: 5 minutes Attach Backer with nails Position nails in the center of the board Page 12 of 16...
- Page 13 STEP 12 Estimated Time: 5 minutes Hammer plastic dowels halfway into side moldings Firmly press side molding into place . Page 13 of 16...
- Page 14 STEP 13 Estimated Time: 5 minutes Insert metal dowels into shelf holes and add shelf Insérez les goujons de métal dans les trous des metal dowel tablettes et posez les tablettes. STEP 14 Estimated Time: 10 minutes Bed frame Attach Headboard to your bed frame We recommend you secure the Headboard to your bed frame to increase stability, particulary if your bed is on castors.
- Page 15 THIS PAGE INTENTIONALLY LEFT BLANK Page 15 of 16...
- Page 16 Furniture Care Q&A How do I clean your products? We recommend that you simply wipe your products with a clean, damp cloth and then dry immediately with another clean cloth to maximize the life span and look of your unit Can I paint or varnish your products? Our products are made from durable composite woods with a laminate finish and therefore should not be painted or varnished.
