Assembly Instructions
CALL US FIRST
1-877-PREPAC1
1-877-773-7221
Mon - Fri
7am - 4pm PST
10am - 7pm EST
For help with assembly
If you have received a damaged or defective part or
are missing hardware.
We will process replacement parts
less. Parts are shipped via
Before you call please:
1) Record the following information from the shipping
label on the outside of the box. You will need it for
warranty purposes:
• Ship To Name
• Sales Order Number
2) Note the
product model number.
3) Review the contents of your shipment to determine
what you are missing.
Online Option:
Fill out the Replacement Parts Order form in the Product
Support section of our website: www.prepacmfg.com

Required Tools

Screwdrivers
in 2 business days or
UPS Ground or mail.
Phillips Head
Flat Head
Hammer
Shoe Cubbie
Model #
SS-4824
This product is shipped in

Optional Tools

Using a power screwdriver
will speed up assembly.
Caution
Do not over tighten any screw.
The last few turns of each screw
should be done very slowly or by hand.
1 carton
1 of 1
Prepac Manufacturing Ltd.
6705 Dennett Place
Delta, BC V4G 1N4
LB-0670
2015-01-13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SS-4824 and is the answer not in the manual?

Questions and answers

Coretta
January 25, 2025

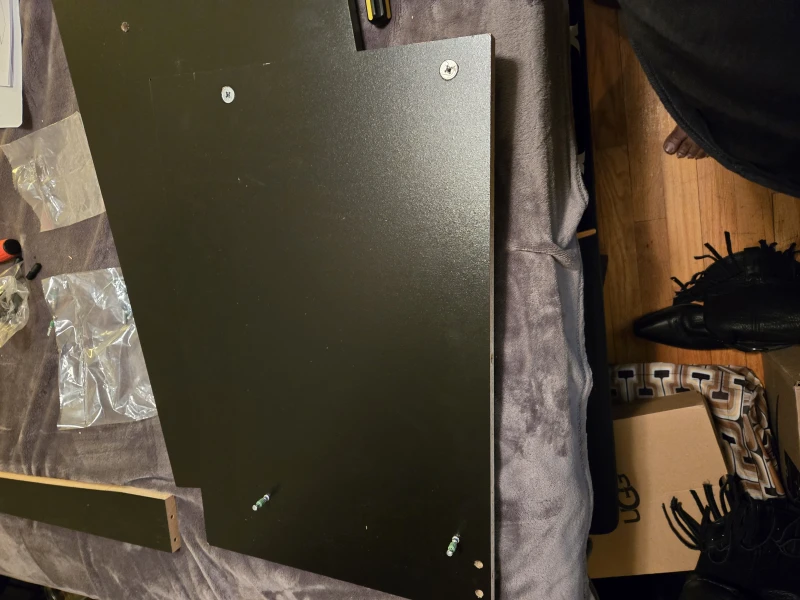

Not sure but it seems like I have two c3 and no c4

User image 6795785eadd24
1 comments:
Mr. Anderson
February 10, 2025

If you have two C3 parts and no C4 part for the Prepac SS-4824, you should request a replacement part. You can do this online by filling out the Replacement Parts Order form in the Product Support section of Prepac's website or contact Prepac Manufacturing Ltd. directly for assistance.

This answer is automatically generated

Subscribe to Our Youtube Channel

Summary of Contents for Prepac SS-4824

  • Page 1 Optional Tools Required Tools Screwdrivers Phillips Head Using a power screwdriver will speed up assembly. Prepac Manufacturing Ltd. Flat Head Caution 6705 Dennett Place Do not over tighten any screw. Delta, BC V4G 1N4 The last few turns of each screw...
  • Page 2 Cabinet Parts Profiled Top (1) Left Side (1) Bottom (1) Top Molding (1) Right Side (1) Front Stabilizer (1) TP-0712 Black SL-4141 Black BT-4141 Black TR-0714 Black SR-4141 Black KR- 4141 Black TP-0762 Espresso SL-4641 Espresso BT-4641 Espresso TR-0764 Espresso SR-4641 Espresso KR-4641 Espresso TP-0702 White...
  • Page 3 Hardware Identification Cabinet Hardware 2" Confirmat Screws 15mm Zinc Cam (8) Screw Cover Caps (6) Green Twister Dowel (8) RM-0103 RM-0226 Black RM-0501 RM-0001 RM-0228 Espresso RM-0008 White ¾” Nail (18) Plastic Dowels (10) RM-0022 RM-0072 STEP 1 Estimated Time: 5 minutes Insert cams into holes on left (C3) and right (C4) sides and the unfinished side of the bottom (C5) Make sure arrow on...
  • Page 4 STEP 2 Estimated Time: 5 minutes Attach the LEFT SIDE (C3) to the bottom (C5) and tighten cams using a FLAT HEAD screwdriver. Repeat for the RIGHT SIDE (C4). FRONT Unlocked Locked Turn 210° To see a video showing how to use cams and ONLINE connectors, visit Product Support on our website: HELP...
  • Page 5 STEP 3 Estimated Time: 10 minutes Attach front stabilizer (C6) to left and right sides (C3 & C4) with Confirmat screws and add screw cover caps. Attach unfinished rear stabilizer (C7) to bottom (C5) with Confirmat screws and insert screw cover caps Page 5 of 12...
  • Page 6 STEP 4 Estimated Time: 5 minutes Screw green twister dowels into the unfinished side of the top (C1) where shown Unlocked Locked Attach top to sides and lock cams Turn 210° using a flat head screwdriver Page 6 of 12...
  • Page 7 STEP 5 Estimated Time: 10 minutes Hammer plastic dowels halfway into side and top moldings Attach top & side moldings. Using your hands, apply even pressure to moldings and press firmly Do not use a hammer NOTE: It may damage The remaining holes on the top will not be used.
  • Page 8 STEP 6 Estimated Time: 2 minutes Assemble the shoe cubbies by interlocking the vertical and horizontal dividers as shown below. Finished Edge Finished FRONT Edge Page 8 of 12...
  • Page 9 STEP 7 Estimated Time: 5 minutes Slide the assembled dividers into the cubbie bench from the back. Make sure the finished edges are facing the front Finished Edges FRONT Page 9 of 12...
  • Page 10 STEP 8 Estimated Time: 2 minutes Nail backer as indicated. You may have more nails than are necessary Page 10 of 12...
  • Page 11 This page intentiionally left blank Page 11 of 12...
  • Page 12 Furniture Care Q&A How do I clean your products? We recommend that you simply wipe your products with a clean, damp cloth and then dry immediately with another clean cloth to maximize the life span and look of your unit Can I paint or varnish your products? Our products are made from durable composite woods with a laminate finish and therefore should not be painted or varnished.
