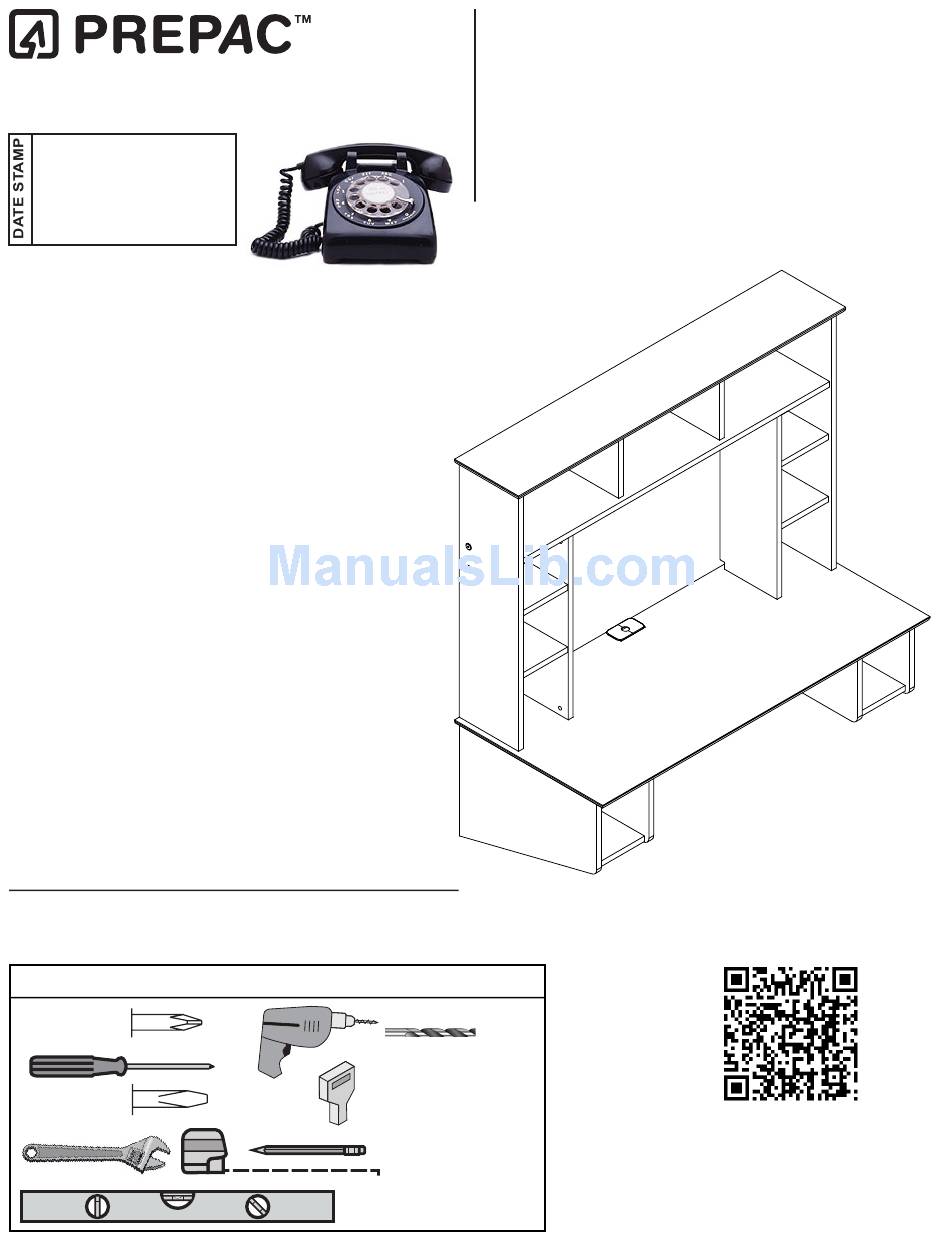

Assembly Instructions
CONTACT US FIRST
parts@prepacmfg.com
1-877-PREPAC1
1-877-773-7221
Mon - Fri
7am - 4pm PST
10am - 7pm EST
•
For help with assembly
•
If you have received a damaged or defective
part or are missing hardware.
We will process replacement parts in 2 business
days or less. Parts are shipped via UPS Ground or
mail.
Before you call please:
1)
Record the following information from the
shipping label on the outside of the box.
You will need it for warranty purposes:
Ship To Name
Sales Order Number
2)
Note the product model number.
3)
Review the contents of your shipment to
determine what you are missing.
Online Option
Fill out the Replacement Parts Order form in the Product
Support section of our website: www.prepacmfg.com
Required Tools

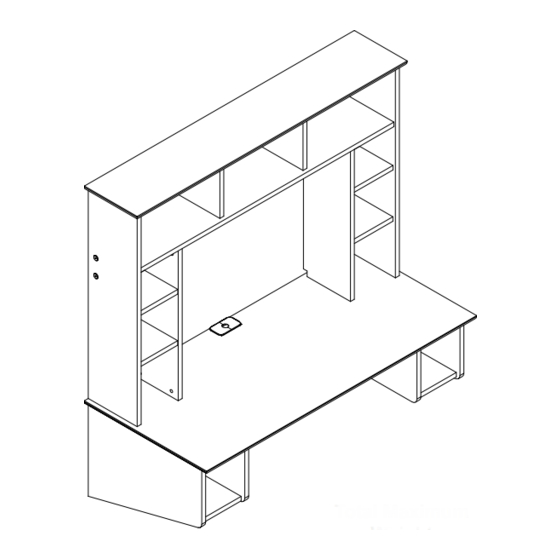

Traditional
Floating Desk
Model # EHW-0800-1
2 Person Installation Required
3/16th inch drill bit
stud
Caution
finder
Do not over
tighten any screw.
The last few turns
of each screw
should be done
very slowly or by
hand.
Scan the
QR code
to view an
installation
video for
this product
Prepac Manufacturing Ltd.
6705 Dennett Place
Delta, BC V4G 1N4
Total Maximum
Weight
100 lbs
LB-0745
2014-06-09
Advertisement
Table of Contents
Related Manuals for Prepac EHW-0800-1
Summary of Contents for Prepac EHW-0800-1
- Page 1 Traditional Floating Desk Assembly Instructions Model # EHW-0800-1 2 Person Installation Required CONTACT US FIRST parts@prepacmfg.com 1-877-PREPAC1 1-877-773-7221 Mon - Fri 7am - 4pm PST 10am - 7pm EST • For help with assembly • If you have received a damaged or defective part or are missing hardware.
- Page 2 Desk Parts Top (1) TP-10059-E espresso Upper Gables (2) GA-10064-E espresso Top Shelf (1) SH-10058-E espresso Small Top Stabilizers (2) ST-10071-E espresso Large Top Stabilizer (1) TR-10036-E espresso Upper Left Side (1) SL-10061-E espresso Small Upper Shelves (2) SH-10059-E espresso Small Lower Shelves (2) SF-10045-E espresso Inner Left Side (1)
- Page 3 Desk Hardware Grommet (1) RM-0838 Metal Wall Mounting Rail (1) RM-0832 3’’ Wood Screw (3) Allen Key Bit (1) Allen Key Rail Hook (4) RM-0835 RM-0923 RM-0313 RM-0834 Confirmat Screw (8) 24mm Green 15mm Zinc Cam (48) Plastic Dowel (3) RM-0001 Twister Dowel (48) RM-0103...
- Page 4 BEFORE YOU BEGIN Layout and identify ALL parts and hardware to ensure everything is included. STEP 1 Estimated Time: 5 minutes Steps 1 - 8 Assemble the Upper Section of the Desk Insert cams and green twister dowels into the Top Shelf (D3) Insert cams in the unlocked position, with the opening facing toward the hole for the twister dowel.
- Page 5 STEP 2 Estimated Time: 10 minutes Insert cams into Upper Gables (D2) Attach Top Shelf (D3) to Upper Gables (D2) with Confirmat Screws Finished Edge at Front Page 5 of 20...
- Page 6 STEP 3 Estimated Time: 10 minutes Insert cams and green twister dowels into the Left (D6) and Right (D11) Sides. Attach Rail Hooks to the inside of the Left (D6) and Right (D11) Sides. Nylon Lock Nut Rail Hook Spacers 35mm JCB Bolt Page 6 of 20...
- Page 7 STEP 4 Estimated Time: 10 minutes Connect the Left (D6) and Right (D11) Sides to the Top Shelf (D3) and tighten cams Tightening Cams Front Insert cams into Small Upper Shelves (D7) Page 7 of 20...
- Page 8 STEP 5 Estimated Time: 10 minutes Connect both Small Upper Shelves (D7) to the Left (D6) and Right (D11) Sides and tighten cams Front Insert cams and green twister dowels into the Inner Left (D9) and Right (D10) Sides. Attach Rail Hooks to the inside of the Inner Left (D9) and Right (D10) Sides.
- Page 9 STEP 6 Estimated Time: 10 minutes Connect the Inner Left (D9) and Right (D10) Sides to the Top Shelf (D3) and Small Upper Shelves (D7) and tighten cams Front Insert green twister dowels into the Top (D1) Page 9 of 20...
- Page 10 STEP 7 Estimated Time: 10 minutes Attach the Top (D1) to the Left (D6) and Right (D11) Sides and Upper Gables (D2) and tighten cams Insert green twister dow- els into the Desktop (D13) where shown Page 10 of 20...
- Page 11 STEP 8 Estimated Time: 10 minutes Attach the Desktop (D13) Use Confirmat Screws to attach to the Left (D6) and Right (D11) Sides Use JRN Nuts and 50mm JCB Bolts to attach to the Inner Left (D9) and Right (D10) Sides using the supplied Allen Key JCB Bolt JRN Nut JRN Nut...
- Page 12 STEP 9 Estimated Time: 10 minutes Steps 9 - 11 Assemble the Lower Section of the Desk Insert cams and green twister dowels into the LOWER Left (D12) and Right (D13) Sides Insert cams into Bottom Stabilizer (D16) Page 12 of 20...
- Page 13 STEP 10 Estimated Time: 10 minutes Insert cams into Bottom Shelf (D15) Connect both Lower Left (D12) and Right (D13) Sides to the Bottom Shelf (D15) and Bottom Stabilizer (D16) and tighten cams Page 13 of 20...
- Page 14 STEP 11 Estimated Time: 10 minutes Insert cams into Small Bottom Shelves (D19) Insert cams and Green Twister Dowels into Bottom Left (D17) and Right (D18) Gables Position parts as shown below Attach the Small Bottom Shelves (D19) to: the Lower Left (D12) and Lower Right (D14) Sides the Bottom Left (D17) and Bottom Right (D18) Gables.
- Page 15 STEP 12 Estimated Time: 10 minutes Attach the Lower Section of the desk to the Upper Section and tighten all cams Carefully turn the desk on its side to tighten the 2 cams at the back Page 15 of 20...
- Page 16 2 people required Read through all installation To see a how-to installation video, click on steps before beginning “How to Install products with Prepac’s Metal Wall Hanging System” on the Assembly page in the Support section of our website: www.prepacmfg.com/content/assembly...
- Page 17 Measure 46.5 inches from the floor and make 3 to 4 marks along the wall 16” Find the center of the wall studs and mark the location of each stud along the line. Studs are typically 16 inches apart center to center.
- Page 18 Set the rail aside and pre-drill holes 3 inches deep at the locations you had marked. Use a 3/16th inch drill bit 3/16th inch drill bit Attach the metal rail and screw the 3 inch wood screws into the pre drilled holes with the Allen Key provided For faster installation, use the hexagonal bit with a drill...
- Page 19 Carefully hang the desk onto the Metal Track until it locks into place. 2 PEOPLE REQUIRED Page 19 of 20...
- Page 20 STEP 14 Estimated Time: 10 minutes Insert Black Plastic Dowels into the the Large Top Stabilizer (D5) and attach to the Top Shelf (D3) by applying firm pressure Push Small Top Stabilizers (D4) towards the back of the desk until it touches the Metal Rail Insert grommit into the hole at the back of the Desktop (D13) Insert shelf supports and add...
