MuxLab 500763-TX Quick Installation Manual

Specifications
Specifications
Environment HDMI 1.4
Devices Blu-Ray, Set Top Boxes, Media Players/Streamers, projectors, monitors, TVs, PCs,
supporting HDMI.
Signal Protocal/Standard HDMI 1.4 and HDCP 1.4
Video Bandwidth 300MHz
Network Bandwidth 40Mbps (max)
Latency <200ms (in low latency mode with H.265)
Protocols Supports Multicast, RTSP, RTMP (H.264), HLS, FLV (H.264) & TS
Connectors One (1) HDMI connector for AV input.
One (1) RJ45S for Ethernet connection.
One (1) 3.5mm connector for audio embedding.
One (1) 3.5mm connector for directional IR (direction controllable via software).
One (1) RS232 DB9 connector for controlling end devices.
One (1) Mini USB connector for firmware updates (can also update firmware via 500811
controller).
One (1) 2.1mm locking power connector.
Maximum Distance Cat5e/6: 330ft (100m) from Ethernet Switch. Unlimited over the Internet
Note: When installed in an electrically noisy environment, an STP cable must be used.
Also, cross-connection reduces the effective distance depending on the grade of twisted
cable used.
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity Sensitive.
Pin 3 (R) Pin 6 (T)
Use EIA/TIA 568A or 586B
Pin 4 (R) Pin 5 (T)
straight-through wiring.
Pin 7 (R) Pin 8 (T)
Power Source This device supports PoE (PD), an external power supply is not included. It is intended to
be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply
(500993) may be purchased separately.
PoE IEEE 802.3af
Power Consumption 4.5W
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
4.4" x 4.4" x 1.0" (111mm x 111mm x 25mm)
Dimensions
Weight 0.9lbs (0.4kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 3 years
Order Information 500763-TX HDMI over IP H.264/H.265 PoE Transmitter, 4K/30
Accessories 500920 16-Port Rackmount Transceiver Chassis
(These items are sold 500917 Wall Mount Transceiver Bracket Kit
separately) 500990 IR Emitter
500994 IR Sensor
500993 Univ. Locking Power Supply 5VDC/2.6A US/UK/EU Blade
2321 Rue Cohen, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc.
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000894-A SE-000894-A

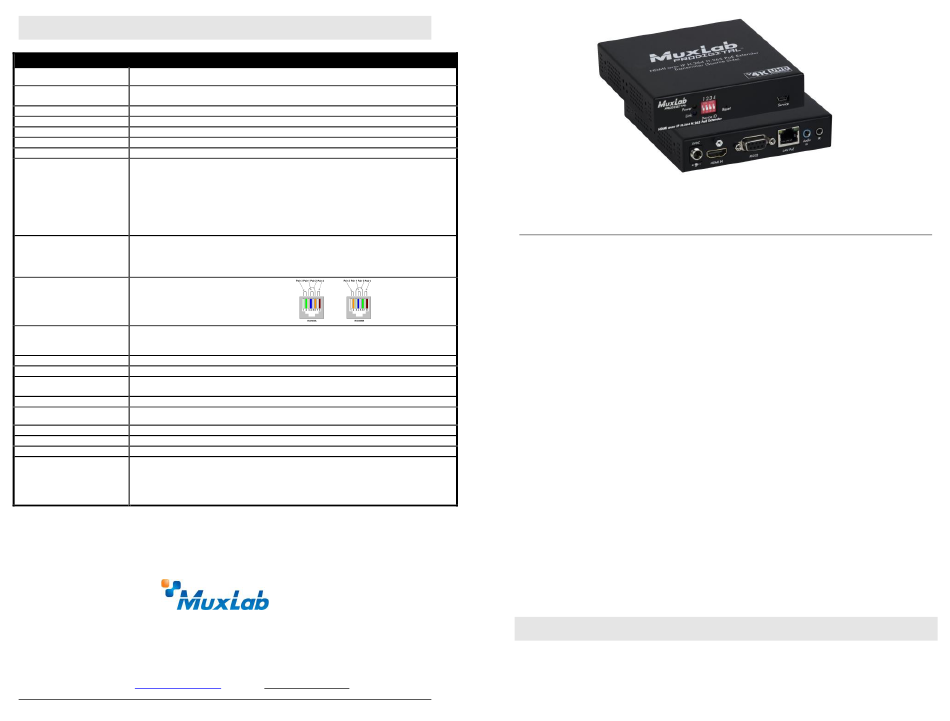

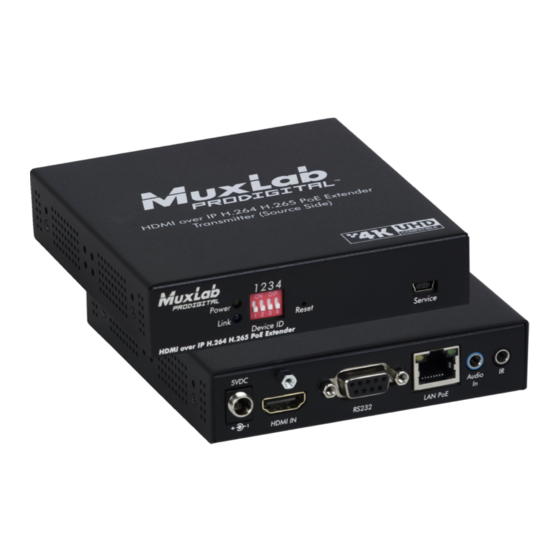

HDMI over IP H.264/H.265 PoE Transmitter, 4K/30
Quick Installation Guide
Overview
The HDMI over IP H.264/H.265 PoE Transmitter, 4K/30 allows HDMI source equipment to be
extended locally up to 330ft (100m) at up to 4K @ 30Hz resolution via Cat5e/6 cable and is
compatible with the Muxlab 500762-RX Receiver to support point-to-point, point-to-multipoint and
multipoint-to-multipoint configurations, Video Wall and Multiview capabilities in a low bandwidth
expandable and cost effective manner, without the need to install dedicated cabling systems. The
exceptionally low bandwidth requirements of this device combination allows for streaming
audio/video content over a local network, over WiFi, and over the Internet for distributed
installations spread throughout the globe. The transmitter accepts a 4K video @ 30Hz and streams
the content to an H.264/H.265 Receiver, such as the MuxLab 500762-RX, to be displayed on a 4K
monitor. The Transmitter may also send H.264/H.265 video streams to other H.264/H.265
compatible Receiving devices. The device supports PoE (PD) and may be powered by a PoE (PSE)
Ethernet Switch.
The Transmitter (500763-TX) and Receiver (500762-RX) are sold separately. IR Emitter and IR
Sensor, if required, may be purchased separately for IR based remote control applications.
For the point-to-multipoint and multipoint-to-multipoint configurations the Ethernet Switch must
have Gigabit ports, DHCP Server capability and additionally support the IGMP communication
protocol for the multipoint-to-multipoint case. MuxLab recommends using the Cisco SG350 Series
Managed Switches.
The MuxLab ProDigital Network Controller (500811) and MuxControl Smartphone & Tablet App
is available to simplify the configuration and utilization of the 500763-TX and other MuxLab Av
over IP products.
Applications
Applications include Audio/Video streaming over LAN/WiFi/Internet, commercial and residential
AV systems, classroom projector systems, digital signage, boardroom systems, and medical
information systems.
Installation
Note: The following instructions are for the 500763-TX Transmitter and a compatible
Receiver such as the MuxLab 500762-RX Receiver.
1.
Identify the connectors on the Transmitter and Receiver as indicated on the product labels, see the
500763-TX
