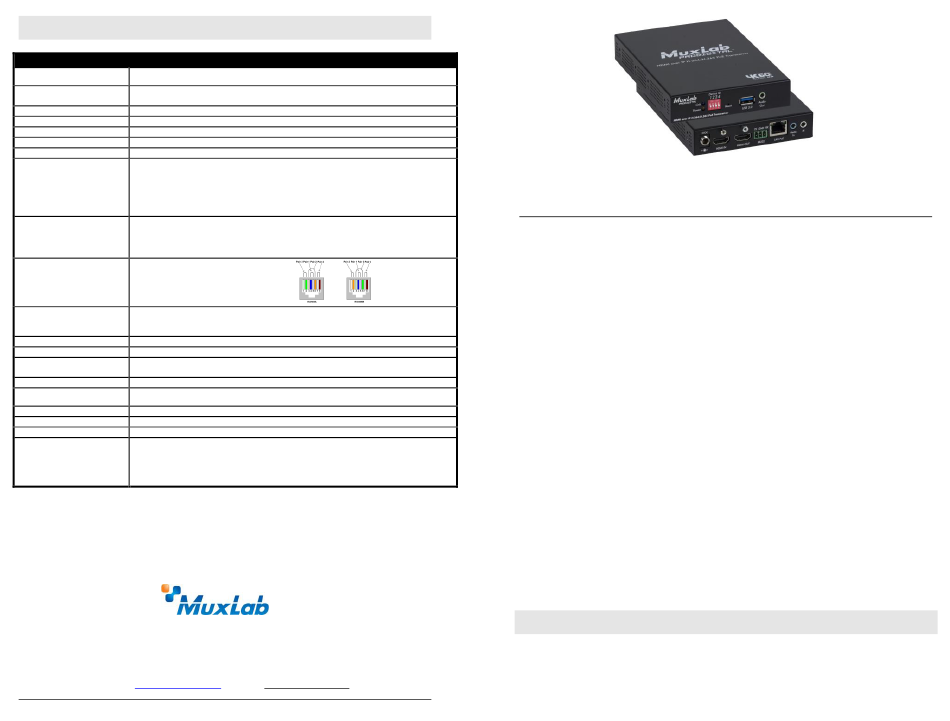

MuxLab 500764-TX Quick Installation Manual

Specifications

Specifications
Environment HDMI 2.0, resolution of up to 4K/60 (4:4:4)
Devices Blu-Ray, Set Top Boxes, Media Players/Streamers, projectors, monitors, TVs, PCs,
supporting HDMI.
Signal Protocol/Standard HDMI 2.0 and HDCP 2.2
Video Bandwidth 594MHz
Network Bitrate (BW) 32Kbps to 60Mbps for H.264/H.265, and 32Kbps to 200Mbps for MJPG
Latency 200ms (in low latency mode with H.265)
Protocols Supports Multicast, RTSP, RTMP (H.264), HLS, FLV (H.264), and TS
Connectors Two (2) HDMI connectors for AV input and AV Loop-out.
One (1) RJ45S for Ethernet connection.
Two (2) 3.5mm connectors for 2CH audio embedding and loop-out.
One (1) 3.5mm connector for directional IR (direction controllable via software).
One (1) RS232 3-Pin Phoenix connector for controlling end devices.
One (1) 2.1mm locking power connector.
Maximum Distance Cat5e/6: 330ft (100m) from Ethernet Switch. Unlimited over the Internet
Note: When installed in an electrically noisy environment, an STP cable must be used.
Also, cross-connection reduces the effective distance depending on the grade of twisted
cable used.
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity Sensitive.
Pin 3 (R) Pin 6 (T)
Use EIA/TIA 568A or 586B
Pin 4 (R) Pin 5 (T)
straight-through wiring.
Pin 7 (R) Pin 8 (T)
Power Source This device supports PoE (PD), an external power supply is not included. It is intended to
be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply
(500993) may be purchased separately.
PoE IEEE 802.3af
Power Consumption 7.8W
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
6.1" x 4.4" x 1.0" (154mm x 111mm x 25mm)
Unit Dimensions
Shipping Weight 1.1lbs (0.5kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 3 years
Order Information 500764-TX HDMI over IP H.264/H.265 PoE Transmitter, 4K/60
Accessories 500920 16-Port Rackmount Transceiver Chassis
(These items are sold 500917 Wall Mount Transceiver Bracket Kit
separately) 500990 IR Emitter
500994 IR Sensor
500993 Univ. Locking Power Supply 5VDC/2.6A US/UK/EU Blade
2321 Rue Cohen, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc.
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000921-A SE-000921-A

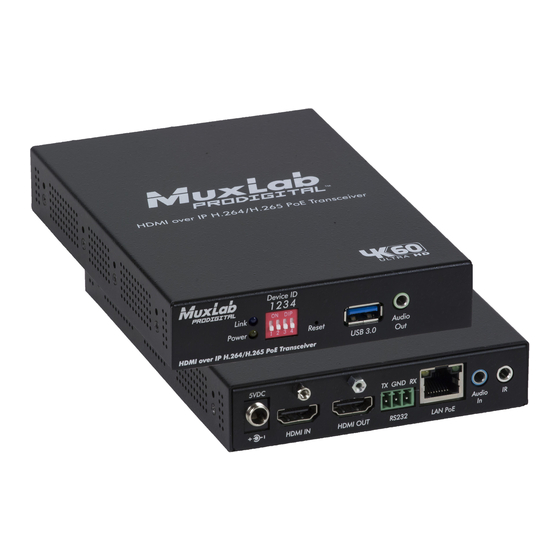

HDMI over IP H.264/H.265 PoE Transmitter, 4K/60
Quick Installation Guide

Overview

The HDMI over IP H.264/H.265 PoE Transmitter, 4K/60 allows HDMI source equipment to be
extended locally up to 330ft (100m) at up to 4K @ 60Hz resolution via Cat5e/6 cable and is
compatible with the Muxlab 500762-RX Receiver to support point-to-point, point-to-multipoint and
multipoint-to-multipoint configurations, Video Wall and Multiview capabilities in a low bandwidth
expandable and cost effective manner, without the need to install dedicated cabling systems. The
exceptionally low bandwidth requirements of this device in the H.264/H.265 video codec setting
allows for streaming audio/video content over a local network, and over the Internet for distributed
installations spread throughout the globe. The unit also supports a MotionJPG (MJPG) video codec
setting for low latency applications. The transmitter accepts a 4K video @ 60Hz and streams the
content to an H.264/H.265 Receiver, such as the MuxLab 500762-RX, to be displayed on a 4K
monitor. The Transmitter may also send H.264/H.265 video streams to other H.264/H.265
compatible Receiving devices. The device supports HDMI and 2CH Audio loop-out ports, and PoE
(PD) and may be powered by a PoE (PSE) Ethernet Switch.
The Transmitter (500764-TX) and Receiver (500762-RX) are sold separately. IR Emitter and IR
Sensor, if required, may be purchased separately for IR based remote control applications.
For the point-to-multipoint and multipoint-to-multipoint configurations the Ethernet Switch must
have Gigabit ports, DHCP Server capability and additionally support the IGMP communication
protocol for the multipoint-to-multipoint case. MuxLab recommends using the Cisco SG350 Series
Managed Switches.
The MuxLab ProDigital Network Controller (500811 or 500812) and MuxControl iOS and Android
App is available to simplify the configuration and utilization of the 500764-TX and other MuxLab
Av over IP products.

Applications

Applications include Audio/Video streaming over LAN/Internet, commercial and residential AV
systems, classroom projector systems, digital signage, boardroom systems, and medical information
systems.

Installation

Note: The following instructions are for the 500764-TX Transmitter and a compatible
Receiver such as the MuxLab 500762-RX Receiver.
1.
Identify the connectors on the Transmitter and Receiver as indicated on the product labels, see the
above front and rear product views for further details on the 500764-TX. Reference the 500762-
RX Install Guides for further details on this device.
500764-TX
