MuxLab 500773-TX Quick Installation Manual

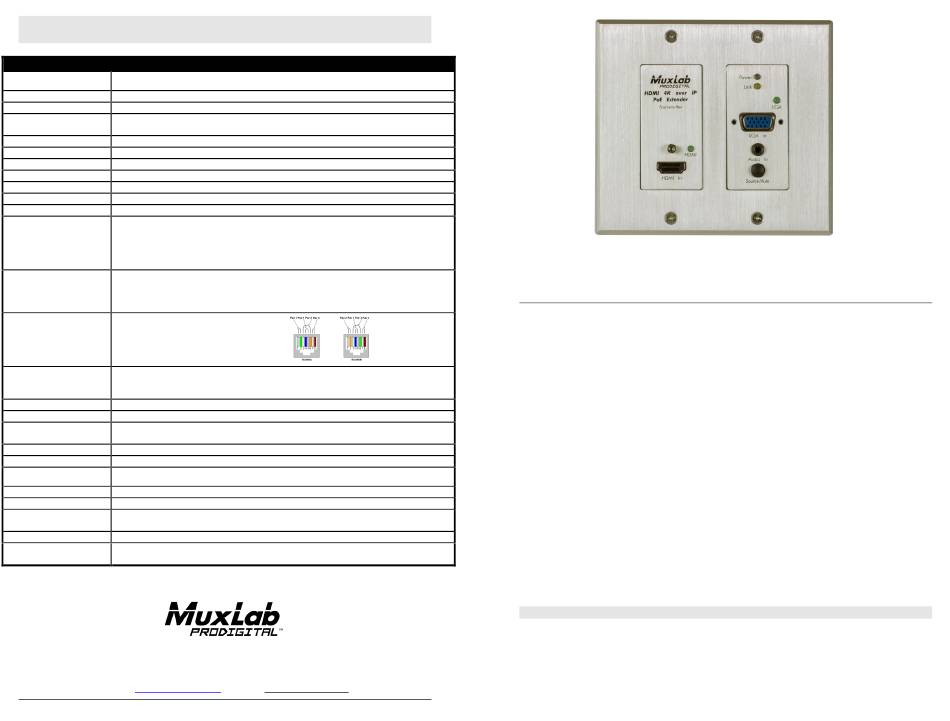

Specifications

Specifications
Environment HDMI 2.0b
Devices TVs, monitors, projectors supporting HDMI.
HDMI 2.0b and HDCP 2.2.
Signal Protocal/Standard
Video Resolution HDMI: Up to 4K @ 30Hz (4:4:4) and 4K @ 60Hz (4:2:0)
VGA: Up to 1920 x 1200 @ 60Hz
Video Bandwidth 300MHz
Audio Bandwidth 20Hz to 20KHz (2 CH)
Network Bandwidth 500Mbps (Typ), up to 800Mbps (Max).
1G Network via PoE Ethernet Switch supporting IGMP and Jumbo Frames.
Network Requirement
Network Protocol Multicast
JPEG2000
Compression
Latency 16.7ms typ. (1 Frame), up to 33.4ms max. (2 frames ).
One (1) HDMI input connector for Audio/Video
Connectors
One (1) VGA input 15-Pin DSUB connector for Video
One (1) 3.5mm input jack for 2CH Audio
One (1) RJ45S for Ethernet connection
One (1) 2.1mm locking power connector, for optional use since this device supports PoE (PD)
Maximum Distance Cat5e/6: 330ft (100m) from Ethernet Switch.
Note: When installed in an electrically noisy environment, an STP cable must be used. Also,
cross-connection reduces the effective distance depending on the grade of twisted cable used.
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity Sensitive.
Pin 3 (R) Pin 6 (T)
Use EIA/TIA 568A or 586B
Pin 4 (R) Pin 5 (T)
straight-through wiring.
Pin 7 (R) Pin 8 (T)
Power Source This device supports PoE (PD), an external power supply is not included. It is intended to be
powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may
be purchased separately.
IEEE 802.3af
PoE
Power Consumption 3W
Operating: 0° to 40°C
Temperature
Humidity: Up to 95% non-condensing
2 Gang
Wall Plate Size
5.00" x 4.53" x 1.65" (127 x 115 x 42 mm)
Dimensions
1.17 lb (0.53 kg)
Weight
Compliance Regulatory: FCC, CE, RoHS
Warranty 3 years
Order Information 500773-TX HDMI/VGA over IP PoE Wall Plate Transmitter, UHD-4K
500773-TX-WH HDMI/VGA over IP PoE Wall Plate Transmitter, UHD-4K (White)
Compatible Receivers 500758-RX, and 500759-RX
Accessories 500993 Universal Locking Power Supply 5VDC/2.6A US/UK/EU Blade
(Item is sold separately)
2321 Rue Cohen, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc.
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000885-A SE-000885-A

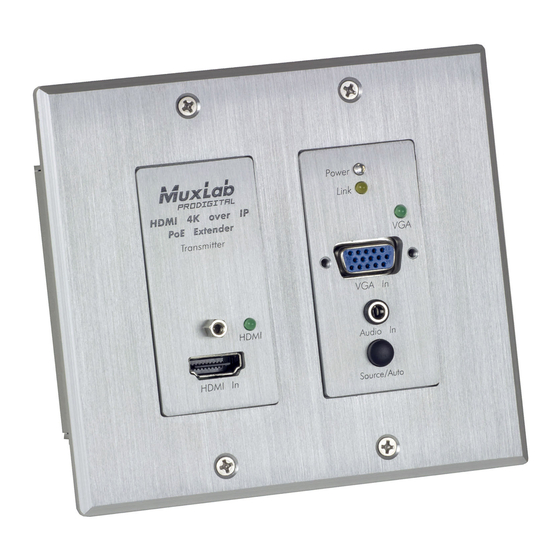

HDMI/VGA over IP PoE Wall Plate Transmitter
Quick Installation Guide

Overview

The HDMI/VGA over IP PoE Wall Plate Transmitter allows HDMI and VGA equipment to be
connected up to 330ft (100m) at up to 4K (3840x2160) resolution @ 30Hz via one (1) Cat5e/6
unshielded twisted pair cable in a point-to-point configuration. Point-to-multipoint and multipoint-
to-multipoint configurations are also possible by connecting several Transmitters and Receivers to
the same local Ethernet IP network via an Ethernet Switch. The HDMI/VGA over IP PoE Wall
Plate Transmitter also supports PoE (PD) if used with a PoE (PSE) Ethernet Switch. Additional
Transmitters may be purchased separately depending on the intended application and number of
units required.
For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet Switch must
have Gigabit ports, Jumbo Frame capability, DHCP Server capability, PoE, and additionally
support the IGMP communication protocol for the multipoint-to-multipoint case.
recommends using the Cisco SG300 or SG500 Series Managed Switches.
The MuxLab ProDigital Network Controller (500811) is available to simplify the configuration and
utilization of the 500773-TX and other MuxLab IP based products via an Ethernet web interface.
The MuxLab Control Android and iOS Application may also be used for connectivity
management, in combination with the 500811 Network Controller.

Applications

Applications include commercial and residential AV systems, classroom systems, digital signage,
boardroom systems, collaborative PC systems, and medical information systems.

Installation

1. Identify the connectors on the Transmitter and Receiver as indicated on the product labels, see the
above front and rear product views for further details.
2. Verify that the distance between the HDMI/VGA over IP PoE Wall Plate Transmitter and
other MuxLab Receiver is within the specifications (see Specifications table for more details).
500773-TX
MuxLab
