MuxLab 500010 Quick Installation Manual

Specifications
VGA. VESA VP&D 1.0, VIP ver 2.0
Environment
Devices VGA monitors, laptops, LCD projection screens, PCs
Transmission Transparent to the user
Bandwidth DC to 60 MHz
Input Signals Video: 1.1 Vp-p. Horiz & Vert Sync: TTL standard. 300kHz max.
bandwidth
Insertion Loss Less than 3 dB per pair over the frequency range
Common Mode Rejection Ratio 15 kHz
(CMRR) 100 kHz to 10 MHz
100 MHz
Video Signal Return Loss -15 dB max from DC to 60 MHz
Video Differential Gain ±2%
Video Differential Phase ±2%
Connectors RJ45 shielded
500010: DB15 HD Plug & 6" lead (connects to VGA output of PC)
500011: DB15 HD Receptacle (connects to VGA input of monitor)
500014: DB15 HD Plug & 6" lead (connects to VGA input of monitor)
640x480 pixels (15 MHz):
Max. Distance via
Cat 5E/6 UTP/STP Cable 800x600 pixels (30 MHz):
1024x768 pixels (60 MHz): 250 ft (76 m)
1280x1024 pixels (100 MHz): 200 ft (61 m)
R Video (Red)
RJ45 Pin Configuration
Reverse Polarity Sensitive G Video (Green)
B Video (Blue)
Horiz Sync
Vert Sync
Horiz. & Vert Sync Return: STP cable: Shield. UTP cable: NC
+5 VDC
ID0
SDA
SCL
Cable In order to ensure a common signal ground between the VGA Baluns,
shielded Cat 5E/6 twisted pair (STP) cable terminated on shielded RJ45
plugs at both ends is highly recommended.
Impedance Input: RGB 75 ohms (DB15 HD) unbalanced
Output: RGB 100 ohms (RJ45 shielded) balanced
Operating: 0° to 55°C
Temperature
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
ABS fire retardant plastic
Enclosure
2.40" x 2.25 x 1.00" (6.10 x 5.72 x 2.54 cm)
Dimensions
Mounting Freestanding. Separate Velcro mounting pad included
Warranty Lifetime
Order Information 500010
500011
500014
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
-60 dB max.
-40 dB max.
-20 dB max.
450 ft (137 m)
350 ft (107 m)
Pin 1 (+) Pin 2 (-) balanced
Pin 4 (+) Pin 5 (-) balanced
Pin 7 (+) Pin 8 (-) balanced
Pin 3
Pin 6
Not connected
Not connected
Not connected
Not connected

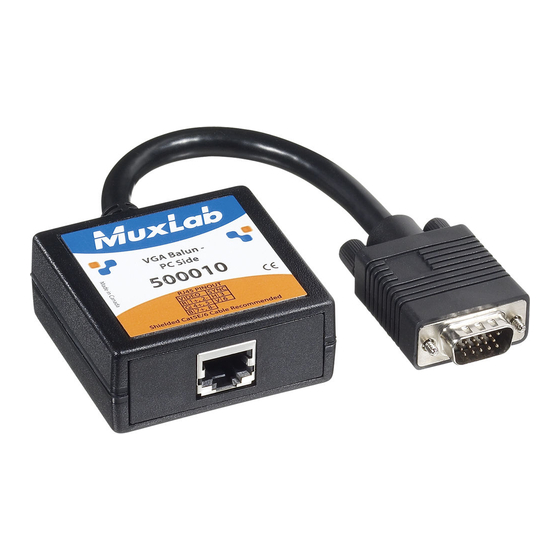

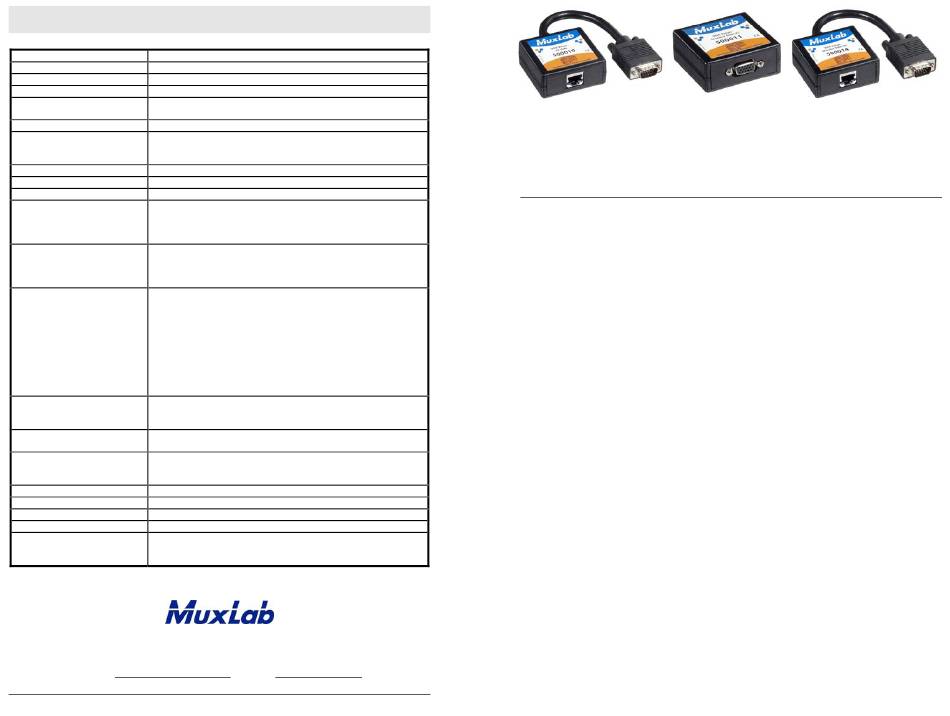

VGA Balun, PC Side, DB15 HD Plug
VGA Balun, Monitor Side, DB15 HD Receptacle
VGA Balun, Monitor Side, DB15 HD Plug
Fax: (514) 905-0589
URL: www.muxlab.com
94-000281-F SE-000201-F
VGA Balun
500010, 500011 & 500014
Quick Installation Guide
Overview
The VGA Balun allows VGA video signals to be transmitted up to 450 ft (137 m) via a 4-pair Cat
5E/6 twisted pair cable for more cost-effective and versatile cabling. Used in pairs, the VGA Balun
eliminates costly and bulky VGA cables, enabling VGA monitors to be connected at extended
distances from the PC via standard Cat 5E/6 twisted pair cable. Used in pairs, one VGA Balun
(500010) connects to the VGA source (i.e. output) and one VGA Balun (500011 or 500014)
connects to the VGA destination (i.e. monitor input). The VGA Balun transmits the RGB video,
horizontal and vertical synchronization pulses. Since the VGA Balun is a passive device and uses
only 8 wires, it does not support VGA handshaking/control signals.
In order to ensure reliable signal continuity between the equipment, it is recommended to use
shielded twisted pair (STP) cable terminated with shielded RJ45 connectors.
Applications
The VGA Balun allows pre-existing twisted pair cable to be used in such applications as classroom
video distribution, overhead projector systems, PC-training systems, and tradeshow PC-demo
systems.
