MuxLab 500777-TX-DECO Quick Installation Manual

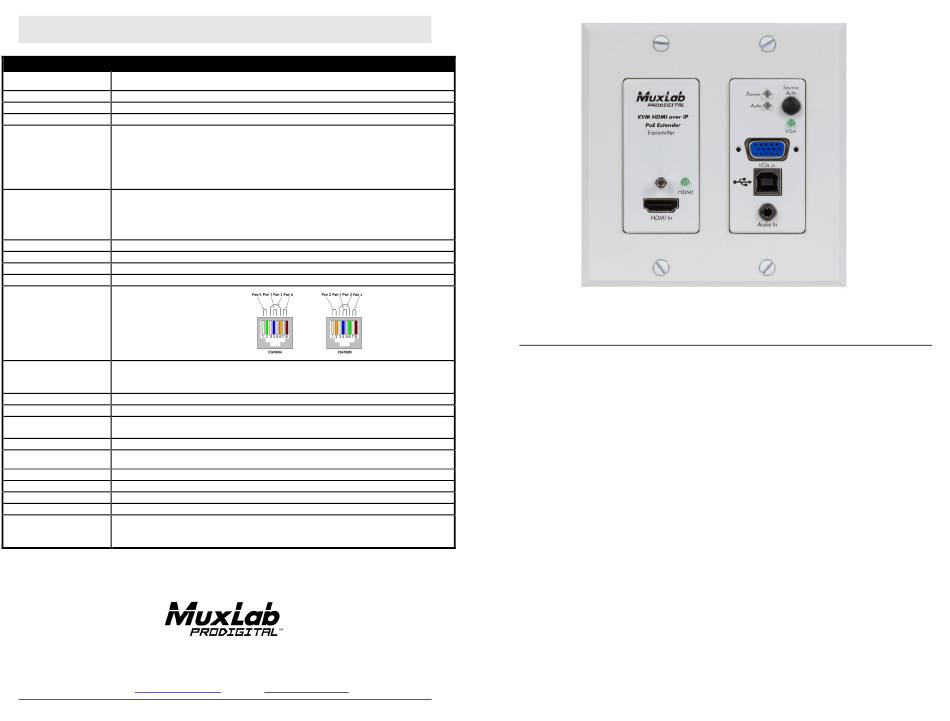

Specifications

Specifications
Environment HDMI, VGA and USB connectivity.
Devices Blu-Ray, projectors, monitors, TV, PC, laptops, servers, and Smart White Boards.
300MHz
Bandwidth
Signals HDMI 2.0b (4K/30 4:4:4 & 4K/60 4:2:0), VGA (1920x1200), USB 2.0 and HDCP 2.2.
One (1) HDMI receptacle.
Connectors
One (1) Female DB15 connector for VGA.
One (1) USB Type B connector.
One (1) RJ45S for Ethernet connectivity.
Note: Cables not included.
One (1) 3.5mm jack for Audio-In.
One (1) 2.1mm jack for power.
Maximum Distance Cat5e/6: 330ft (100m)
Note: When installed in an electrically noisy environment, an STP cable must be used. Also,
Based on a maximum
cross-connection reduces the effective distance depending on the grade of twisted cable used.
length of 6.6ft (2m) of
HDMI cable per end.
Latency Typical one (1) frame (16ms)
Compression JPG2000
Bandwidth Up to 500Mbps
Network Requirement 1 Gig Ethernet with IGMP, Jumbo Frames and PoE
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity Sensitive.
Pin 3 (R) Pin 6 (T)
Use EIA/TIA 568A or 586B
Pin 4 (R) Pin 5 (T)
straight-through wiring.
Pin 7 (R) Pin 8 (T)
Power Source This device supports PoE (PD), an external power supply is not included. It is intended to be
powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may
be purchased separately.
PoE IEEE 802.3af
Power Consumption 3W
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
4.53" x 4.53" x 2.05" (115mm x 115mm x 52mm)
Dimensions
Weight 1.35lb (0.61kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 3 years
Order Information 500777-TX-DECO HDMI/VGA/USB over IP PoE Wall Plate Transmitter, 4K/30, DECO
Compatible Receivers 500759-RX, 500770-RX, 500771-RX, and 500777-RX
Accessories 500993 Universal Locking Power Supply 5VDC/2.6A US/UK/EU Blade
(This item is sold
separately)
2321 Rue Cohen, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc.
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000929-A SE-000929-A

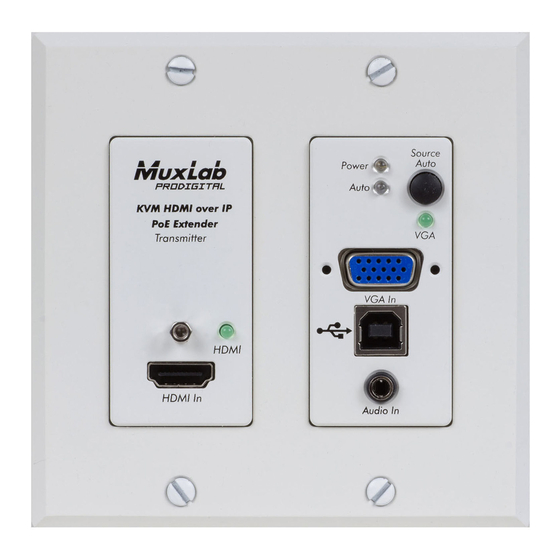

HDMI/VGA/USB over IP PoE Wall Plate Transmitter, 4K/30, DECO
500777-TX-DECO
Quick Installation Guide

Overview

The HDMI/VGA over IP PoE Wall Plate Transmitter, 4K/30, DECO fits a standard 2-gang Decora
size electrical box and allows HDMI, VGA and USB equipment to be connected up to 330ft
(100m), with video supported at up to 4K (3840x2160) resolution @ 30Hz via one (1) Cat5e/6
unshielded twisted pair cable in a point-to-point configuration. The USB port may be used for
extending various USB devices including Smart Boards. Point-to-multipoint and multipoint-to-
multipoint configurations are also possible by connecting several Transmitters and Receivers to the
same local Ethernet IP network via an Ethernet Switch. The HDMI/VGA/USB over IP PoE Wall
Plate Transmitter, 4K/30, DECO also supports PoE (PD) if used with a PoE (PSE) Ethernet
Switch. Additional Transmitters may be purchased separately depending on the intended
application and number of units required.
For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet Switch must
have Gigabit ports, Jumbo Frame capability, DHCP Server capability, PoE, and additionally
support the IGMP communication protocol for the multipoint-to-multipoint case.
recommends using the Cisco SG350 or SG550 Series Managed Switches.
The MuxLab ProDigital Network Controller is available to simplify the configuration and
utilization of the 500777-TX-DECO and other MuxLab IP based products via an Ethernet web
interface. The MuxControl Android and iOS Application may also be used for connectivity
management, in combination with the Network Controller.

Applications

Applications include commercial and residential AV systems, classroom systems, digital signage,
boardroom systems, conference rooms, and collaborative PC systems.
MuxLab
