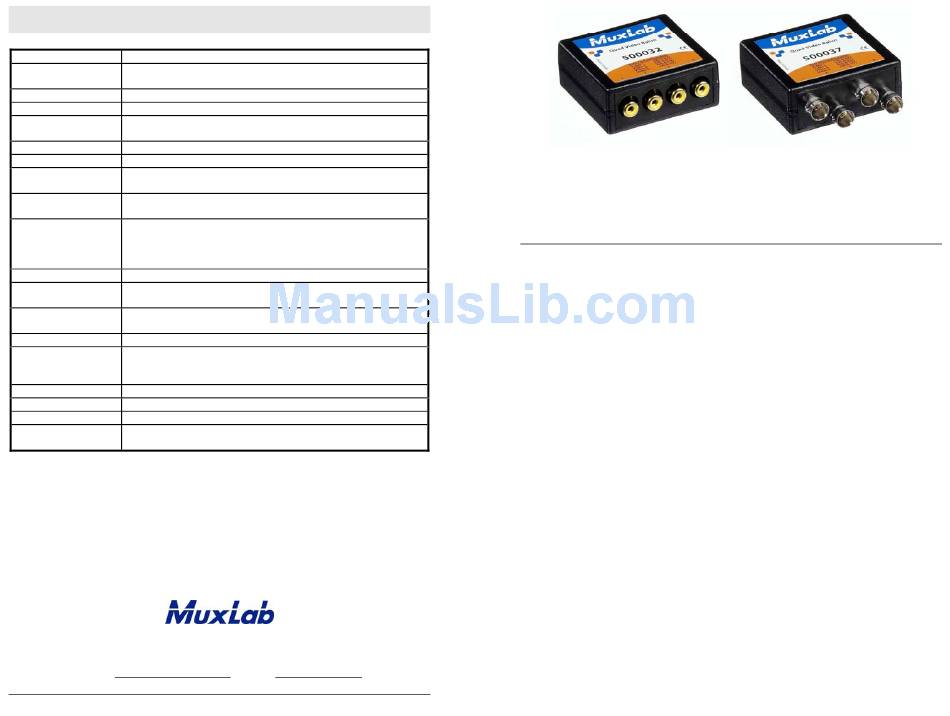

MuxLab 500032 Quick Installation Manual

Specifications

Environment Composite video. NTSC, PAL, SECAM. Component video (480i/p).
Devices DVD players, cable boxes, video distribution amplifiers, security video
cameras, digital video recorders and other composite video equipment.
Transmission Transparent to the user
Bandwidth Video: DC to 8 MHz
Maximum Video 1.1 Vp-p
Input
Insertion Loss Less than 2 dB per pair over the frequency range from DC to 8 MHz
Return Loss Greater than 15 dB over the frequency range from DC to 8 MHz
Greater than 40 dB at 8 MHz
Common Mode
Rejection Ratio
Max. Distance: Composite video: 2,200 ft (less distance may result with DVR equip.)
Component video (YPbPr): 500 ft (152 m) (480i/p only)
Cat 5E/6 UTP/STP
Cable: 24 AWG or lower solid copper twisted pair wire
Cat 5E/6 UTP/STP Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Cable: Coax 75-ohm coaxial cable.
Connectors Option 1: Four (4) RCA-receptacles for video, one (1) RJ45 jack
Option 2: Four (4) BNC-receptacles for video, one (1) RJ45 jack
Pin Configuration Video 1: Pins 7(R) & 8(T)
Video 3: Pins 4(R) & 5(T)
Impedance Video: 75 ohms (RCA) unbalanced
Operating: 0° to 55°C
Temperature
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Fire retardant plastic
Enclosure
Dimensions 2.40" x 2.25" x 1.00" (6.10 x 5.72 x 2.54 cm)
Warranty Lifetime
Order Information 500032 Quad Video Balun – RCA
500037 Quad Video Balun – BNC
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Video 2. Pins 3(R) & 6(T)
Video 4: Pins 1(R) & 2(T)
Fax: (514) 905-0589
URL: www.muxlab.com
94-000308-C SE-000411-C

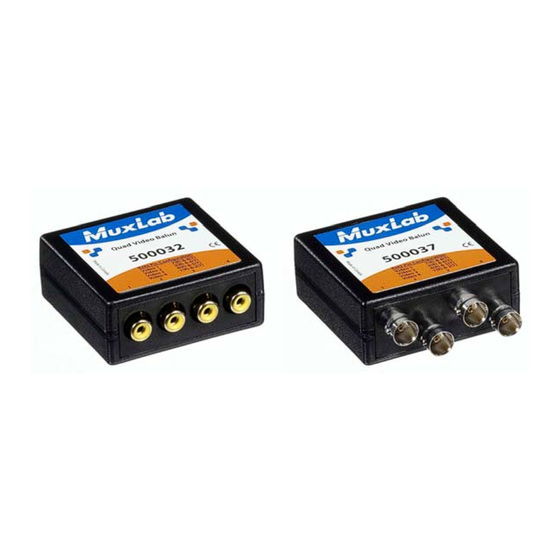

Quad Video Balun – RCA (500032)
Quad Video Balun – BNC (500037)
Quick Installation Guide
Overview
The Quad Video Balun allows up to four (4) composite video signals to be transmitted
via an unshielded twisted pair (UTP) cable in a point-to-point connection. Used in pairs,
the Quad Video Balun eliminates up to four (4) coaxial cables, allowing audio-video
equipment to be connected via a space-efficient and cost-effective Category 5E/6
twisted pair cable. The Quad Video Balun also works in conjunction with other MuxLab
composite video baluns such as the 500000, 500009 and 500021.
