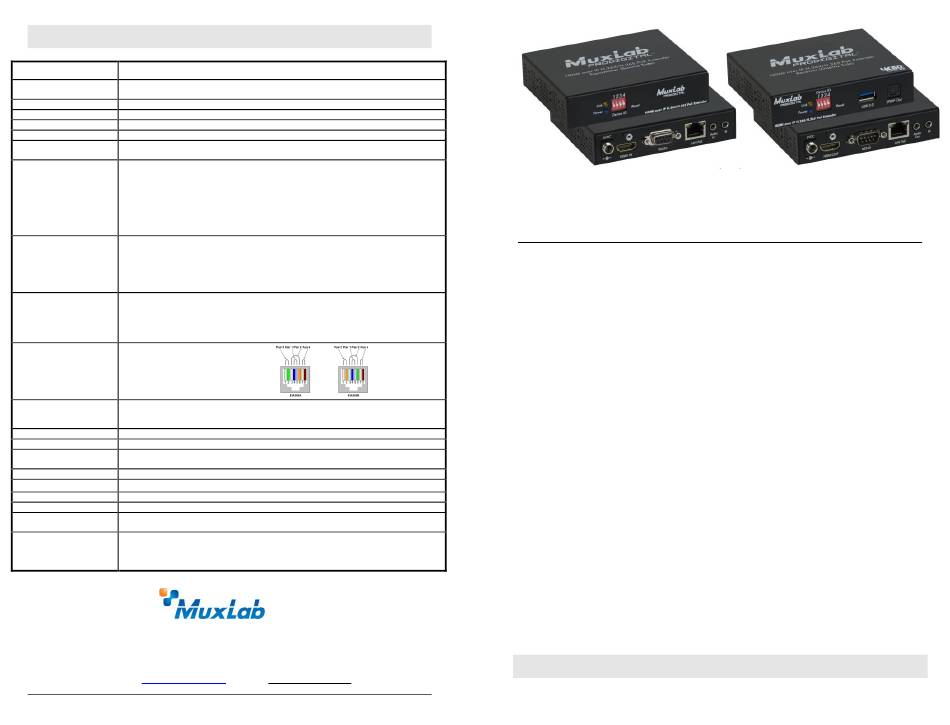

MuxLab SE-000857-C Quick Installation Manual

Specifications

Environment HDMI 2.0 (RX) and HDMI 1.3a (TX)
Devices Blu-Ray, Set Top Boxes, Media Players/Streamers, projectors, monitors, TVs, PCs,
supporting HDMI.
Signal Protocal/Standard HDMI 2.0 and HDCP 2.2 (RX) / HDMI 1.3a and HDCP 1.4 (TX)
Video Bandwidth 148.5MHz (TX), and 594MHz (RX)
Network Bandwidth 32Mbps (max)
Latency <200ms (in low latency mode with H.265)
Protocols TX: Supports Multicast, RTSP, RTMP (H.264), HLS, FLV (H.264) & TS
RX: Supports Multicast, RTSP, RTMP, HLS, FLV & TS
Connectors One (1) HDMI connector for AV (input on TX & output on RX).
One (1) RJ45S for Ethernet connection (on TX & RX).
One (1) USB 3.0 connector for future capabilities (on RX).
One (1) TosLink optical connector for digital audio extraction (on RX).
One (1) 3.5mm connector for audio embedding/extraction (input on TX & output on RX).
One (1) 3.5mm connector for directional IR (on TX & RX, direction controlled via software).
One (1) RS232 DB9 connector for controlling end devices (on TX and RX).
One (1) 2.1mm locking power connector (on TX and RX).
Cables One (1) Cat 5e/6 or better twisted pair cables required for Ethernet (on TX and RX).
One (1) HDMI cable for connecting to source (on TX) or sink (on RX) devices.
Note: Cables not included. Optional:
One (1) 3,5mm 2CH audio cable for embedding (on TX) / extracting (on RX) audio
One (1) RS232 cable for end device control (on TX and RX).
One (1) optical cable for digital audio extraction (on RX).
Maximum Distance Cat5e/6: 330ft (100m) from Ethernet Switch.
The unit can extend over the Internet for unlimited distance.
Note: When installed in an electrically noisy environment, an STP cable must be used. Also,
cross-connection reduces the effective distance depending on the grade of twisted cable
used.
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity Sensitive.
Pin 3 (R) Pin 6 (T)
Use EIA/TIA 568A or 586B
Pin 4 (R) Pin 5 (T)
straight-through wiring.
Pin 7 (R) Pin 8 (T)
Power Source This device supports PoE (PD), an external power supply is not included. It is intended to be
powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993)
may be purchased separately.
PoE IEEE 802.3af
Power Consumption 4.5W
Temperature Operating: 0° to 40°C
Humidity: Up to 95% non-condensing
4.4" x 3.6" x 1.0" (111mm x 92mm x 25mm)
Dimensions
Weight 0.9lbs (0.4kg)
Compliance Regulatory: FCC, CE, RoHS
Warranty 3 years
Order Information 500762-TX HDMI over IP H.264/H.265 PoE Transmitter
500762-RX HDMI over IP H.264/H.265 PoE Receiver, 4K/60
Accessories 500920 16-Port Rackmount Transceiver Chassis
500917 Wall Mount Transceiver Bracket Kit
(These items are sold 500990 IR Emitter, and 500994 IR Sensor
separately) 500993 Univ. Locking Power Supply 5VDC/2.6A US/UK/EU Blade
2321 Rue Cohen, Montreal, Quebec, Canada. H4R 2N7
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: info@muxlab.com
© MuxLab Inc.
Storage: -20° to 85°C
Flammability: 94V0
Fax: (514) 905-0589
URL: www.muxlab.com
94-000857-C SE-000857-C
HDMI over IP H.264/H.265 PoE Transmitter (500762-TX)
HDMI over IP H.264/H.265 PoE Receiver, 4K/60 (500762-RX)
Quick Installation Guide

Overview

The HDMI over IP H.264/H.265 PoE Transmitter (500762-TX), and the HDMI over IP
H.264/H.265 PoE Receiver, 4K/60 (500762-RX) combination allows HDMI source and display
equipment to be extended locally up to 330ft. (100m) at up to 4K @ 60Hz resolution via one (1)
Cat5e/6 unshielded twisted pair cable in a point-to-point configuration. Point-to-multipoint and
multipoint-to-multipoint is possible by connecting several Transmitters and Receivers to the same
local Ethernet network, and the device support Video Wall and Multiview capabilities. The
exceptionally low bandwidth requirements of this device combination allows for streaming
audio/video content over a local network, over WiFi, and over the Internet for distributed
installations spread-out throughout the globe. The transmitter accepts a 1080p @ 60Hz video and
streams the content to the Receiver, where the signal is up-scaled up to 4K @ 60Hz to be displayed
on a 4K monitor. The Receiver also accepts H.264/H.265 video streams from other transmitting
devices of up to 4K @ 60Hz (4:4:4).
The Transmitter (500762-TX) and Receiver (500762-RX) are sold separately, and support PoE
(PD) if used with a PoE (PSE) Ethernet Switch. The 500762-TX comes with one (1) Transmitter,
while the 500762-RX comes with one (1) Receiver. IR Emitter and IR Sensor, if required, may be
purchased separately for IR based remote control applications.
For the point-to-multipoint and multipoint-to-multipoint configurations the Ethernet Switch must
have Gigabit ports, DHCP Server capability and additionally support the IGMP communication
protocol for the multipoint-to-multipoint case. MuxLab recommends using the Cisco SG300 Series
Managed Switches.
The MuxLab ProDigital Network Controller (500811) and MuxLab Control Smartphone & Tablet
App is available to simplify the configuration and utilization of the 500762 and other MuxLab Av
over IP products.

Applications

Applications include Audio/Video streaming over LAN/WiFi/Internet, commercial and residential
AV systems, classroom projector systems, digital signage, boardroom systems, and medical
information systems.

Installation

1.
Identify the connectors on the Transmitter and Receiver as indicated on the product labels, see
