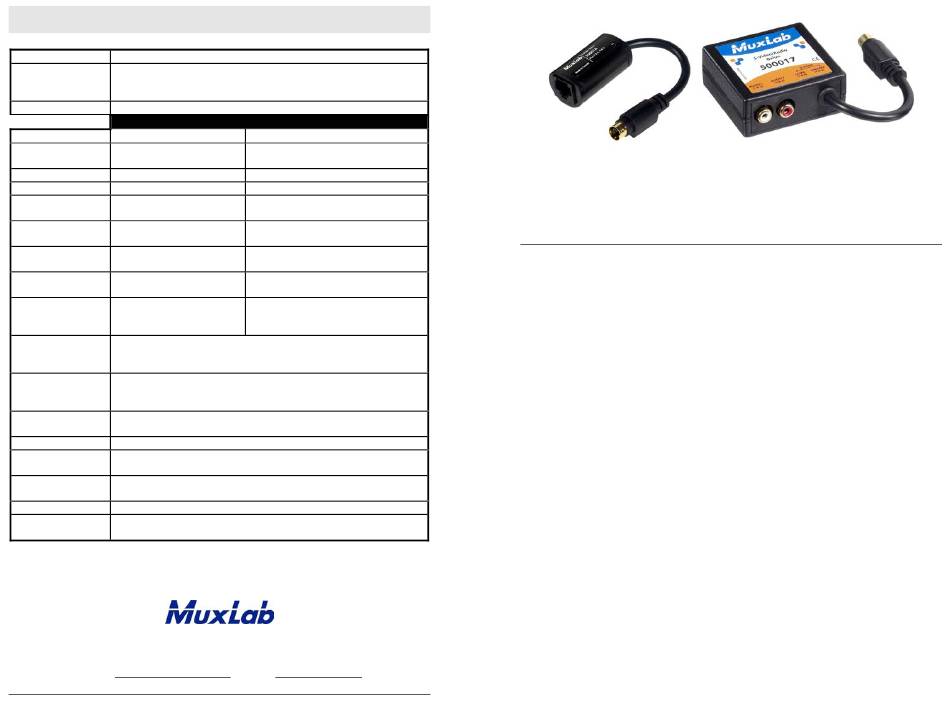

MuxLab 500016 Quick Installation Manual

Specifications
Environment S-Video equipment
Devices DVD players, satellite receivers, laptops, notebooks, monitors, LCD
projectors, CCD cameras, video switchers, S-Video splitters, S-Video
converters and other S-Video equipment.
Transmission Transparent to the user
S-Video
Bandwidth DC to 6 MHz
Peripherals' 75 ohms
Impedance
Max. Input 1.1 Vp-p
NA
THD
Insertion Loss Less than 2 dB per pair from
DC to 6 MHz
Better than 15 dB over the
Return Loss
frequency range
Common Mode Greater than 40 dB over the
Rejection Ratio frequency range
1,000 ft (305 m)
Max. Distance:
Cat5e/6 UTP/STP
Pin Configuration Luma: Pins 7(R) & 8(T)
Chroma: Pins 4(R) & 5(T)
(RJ45)
Reverse Polarity Sensitive
Cable: 24 AWG or lower solid copper twisted pair wire
Cat5e/6 UTP/STP Impedance: 100 ohms at 1 MHz Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Connectors 500016: One (1) 4-pin Mini DIN and one (1) RJ45
500017: One (1) 4-pin Mini DIN, two (2) RCA jacks and one (1) RJ45
The 500017 comes with one (1) 6" dual-RCA stereo audio cable
Temperature Operating: 0° to 55°C Storage: -20° to 85°C
Humidity: Up to 95% non-condensing.
Enclosure Fire retardant plastic
Dimensions 500016: 1.875" x 1.0" diameter plus 5" S-Video lead
500017: 2.40" x 2.25" x 1.00" plus 5" S-Video lead
Weight 500016: 1.0 oz (28 g)
500017: 4.1 oz (118 g)
Warranty Lifetime
Order Information 500016 S-Video Balun
500017 S-Video/Audio Balun
8495 Dalton Road, Montreal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Audio (500017 only)
20 Hz ~ 20 kHz
Source 100 Ω Mx, Receiver 10 kΩ min.
1.1 Vp-p
Less then 0.007% @ 1 kHz
Less than 2 dB per pair
N/A
N/A
3250 ft (1 km)
Audio 1: Pins 1(R) & 2(T)
Audio 2: Pins 3(R) & 6(T)
Fax: (514) 905-0589
URL: www.muxlab.com
94-000306-G SE-000268-G
S-Video Balun – 500016

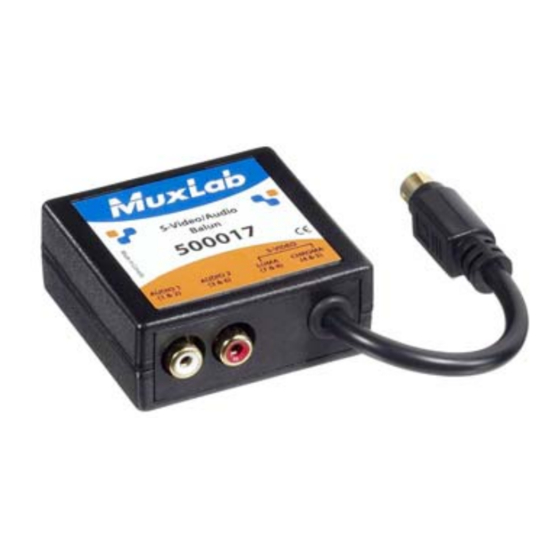

S-Video/Audio Balun – 500017
Quick Installation Guide
Overview
The S-Video Balun allows a single S-Video signal to be transmitted via an unshielded twisted pair
(UTP) cable in a point-to-point connection for more versatile cabling.
The product is available in two models: The S-Video Balun (500016) and the S-Video/Audio Balun
(500017). Used in pairs, the S-Video Balun eliminates costly and bulky S-Video cables, allowing S-
Video equipment to be connected or moved to any convenient modular outlet. The S-Video Balun
works in conjunction with MuxLab's CCTV-Audio/Video Distribution Hub (500200), allowing S-
Video programming to be distributed via UTP. The 500017 has a 20 Hz- 20 kHz bandwidth for Hi-
Fidelity applications.
Applications
The S-Video Balun allows pre-existing twisted pair cables to be used in such applications as
classroom video distribution, overhead projector systems, PC-training systems and tradeshow
PC-demo systems in the S-Video environment.
