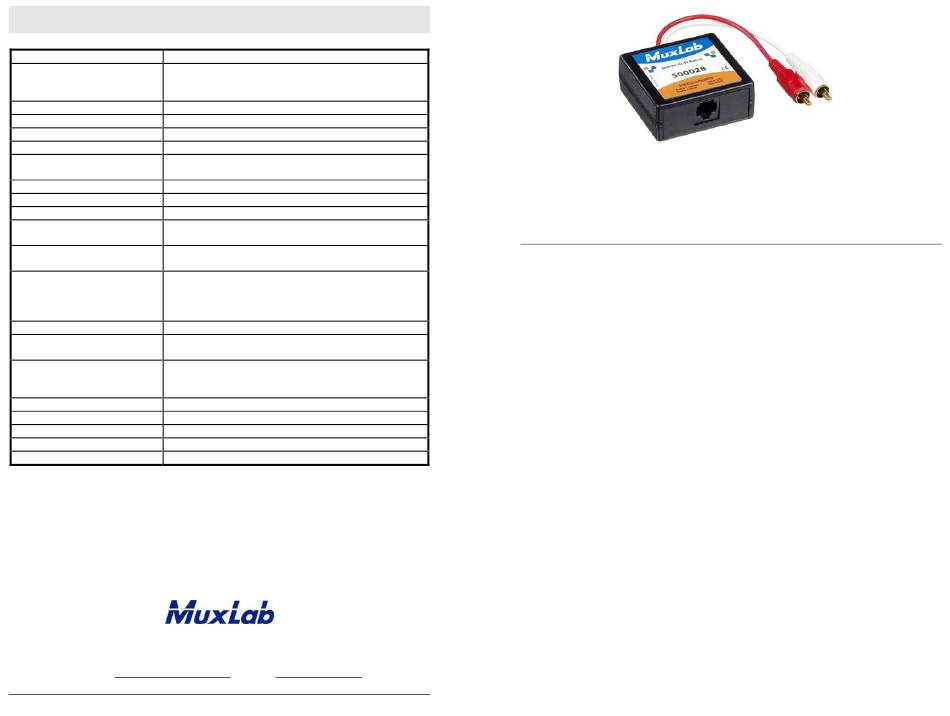

MuxLab Stereo Hi-Fi Balun Quick Installation Manual

Specifications
Environment Line level unbalanced analogue audio
Devices DVD players, satellite receivers, MPEG players, laptops, hi-
fidelity stereo audio amplifiers, audio switchers, AV
monitors and other line level audio equipment.
Transmission Transparent to the user
3 dB Bandwidth 20 Hz to 20 kHz over the distance range
Maximum Input 1.1 Vp-p
Insertion Loss per Balun Pair Less than 2 dB over the frequency range
Common Mode Rejection Ratio Greater than 60 dB at 1 kHz
Greater than 40 dB over the frequency range
(CMRR)
THD Less than 0.007% at 1 kHz
Audio Source Impedance 100 ohm maximum
10 kohm minimum
Audio Receiver Impedance
Max. Distance via 3,250 ft (1 km)
Cat 5E/6 UTP/STP Cable
Pin Configuration (RJ45) Audio 1 (White): Pins 1(R) & 2(T)
Audio 2 (Red): Pins 3(R) & 6()
Cable: 24 AWG or lower solid copper twisted pair wire
Cat 5E/6 UTP/STP Impedance: 100 ohm at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Cable: Coax Shielded audio cable
Connectors Two (2) RCA-M 6" cable leads
One (1) RJ45
Temperature Operating: 0º to 55ºC
Storage: -20º to 85ºC
Humidity: Up to 95% non-condensing
Enclosure ABS. Fire retardant plastic
Dimensions 2.40" x 2.25" x 1.00" plus 6" audio lead
Weight 3.1 oz (89 g)
Warranty Lifetime
Order Information 500028
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc.
Stereo Hi-Fi Balun
Fax: (514) 905-0589
URL: www.muxlab.com
94-000556-B SE-000589-B

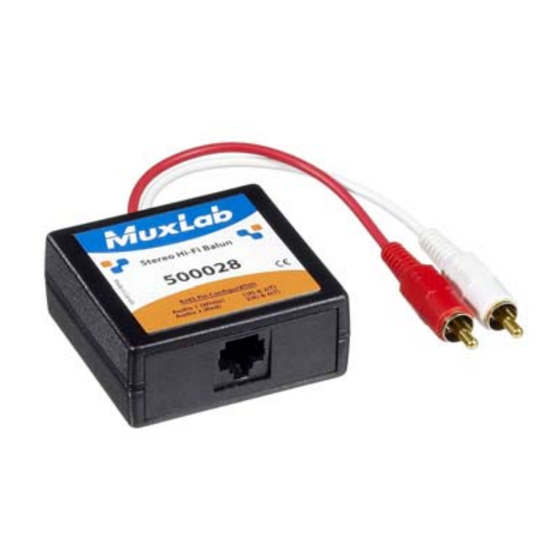

Stereo Hi-Fi Balun
500028
Quick Installation Guide
Overview
The Stereo Hi-Fi Balun (500028) allows unbalanced line level stereo audio to be
transmitted up to 5,000 ft (1.5 km) via an unshielded copper twisted pair (UTP) cable in
a point-to-point connection. Used in pairs, the product is designed for high fidelity
applications where full audio bandwidth (20 Hz to 20 kHz) is required. Used in pairs,
the Stereo Hi-Fi Balun eliminates costly and bulky audio cables, allowing audio
equipment to be connected or moved within a structured cabling environment.
Applications include: Audio distribution, high-fidelity sound systems, and custom
residential audio systems.
