MuxLab 500038-WP-US Quick Installation Manual

Specifications
Environment S-Video equipment
Devices DVD players, VCR, satellite receivers, MPEG players, laptops,
notebooks, monitors, LCD projectors, CCD cameras, video switchers,
sequencers, digital video servers, video multiplexers, S-Video
splitters, S-Video converters and other S-Video equipment.
Transmission Transparent to the user
S-Video
Bandwidth DC to 6 MHz
Impedance 75 ohms
Maximum Input 1.1 Vp-p
Less than 2 dB per pair over the
Insertion Loss
frequency range from DC to 6 MHz
Return Loss Better than 15 dB over the
frequency range
Common Mode Rejection Greater than 40 dB over the
Ratio (CMRR) frequency range
Max. Distance via 1,000 ft (305 m)
Cat 5E/6 UTP/STP Cable
S-Video Luma: Pins 7(R) & 8(T)
Pin Configuration (RJ45)
EIA 568 A or B S-Video Chroma: Pins 4(R) & 5(T)
Reverse Polarity Sensitive
24 AWG or lower solid copper twisted pair wire
Cable:
Cat 5E/6 UTP/STP Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Connectors One (1) 4-pin Mini DIN jack for S-Video
Two (2) RCA audio jacks for stereo audio
One (1) RJ45 for Cat 5E/6
Temperature Operating: 0º to 55ºC
Storage: -20º to 85ºC
Humidity: Up to 95% non-condensing
Enclosure ABS fire retardant plastic, Color white, Finish glossy.
Dimensions 4.1" (104 mm) x 1.8" (45.7 mm) x 1.44" (36.6 mm). Choose 1.6"
(40 mm) deep back box to allow for Cat 5E/6 wiring connection.
Weight 4.1 oz (115 g)
Compliance FCC, CE, Decora® faceplate.
Lifetime
Warranty
Order Information 500038-WP-US
UPC: 6-27699-92038-1
8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com
© MuxLab Inc. 2010
Audio
20 Hz to 20 kHz
600 ohms min.
1.1 Vp-p
Less than 2 dB per pair over
the frequency range
N/A
Greater than 60 dB at 1 kHz
Greater than 40 dB over the
frequency and distance range
3,250 ft (990 m)
Audio 1: Pins 1(R) & 2(T)
Audio 2: Pins 3(R) & 6(T)
S-Video/Hi-Fi Wall Balun
Fax: (514) 905-0589
URL: www.muxlab.com
94-000674-A SE-000674-A

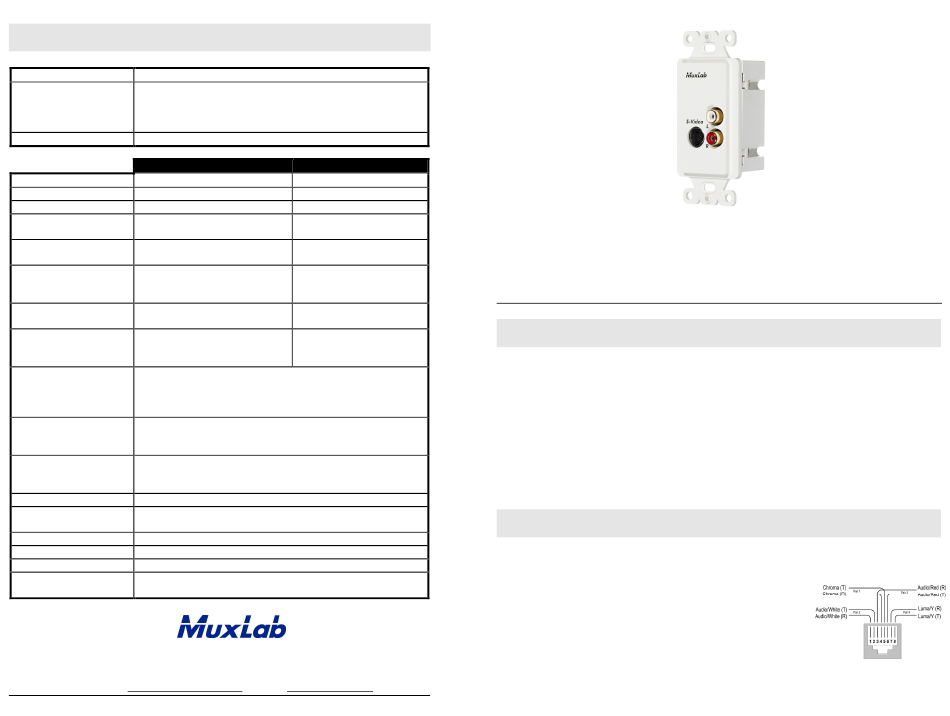

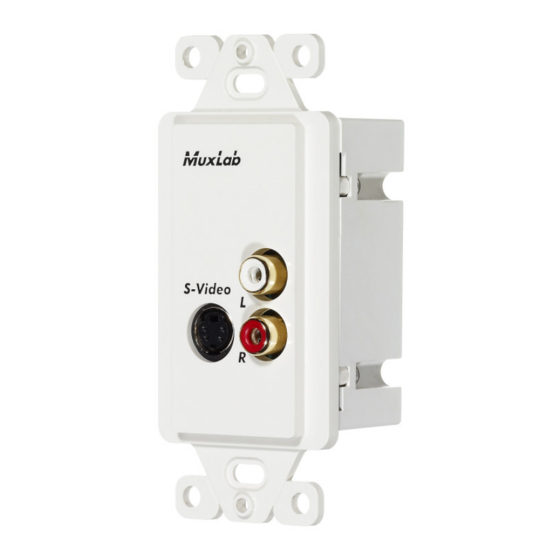

S-Video / Hi-Fi Wall Balun
500038-WP-US
Quick Installation Guide
Overview
The S-Video/Hi-Fi Wall Balun allows one S-Video signal and one hi-fidelity stereo
audio channel to be transmitted via an unshielded twisted pair (UTP) cable in a point-to-
point connection for more versatile cabling. Used in pairs, or in conjunction with the
500038, the S-Video/Hi-Fi Wall Balun eliminates costly and bulky S-Video and audio
cable, allowing S-Video equipment to be connected or moved to any convenient
modular outlet. The S-Video/Hi-Fi Balun also works in conjunction with MuxLab's
Audio/Video Distribution Hub (500200) to allow S-Video programming to be
distributed via UTP. Applications include: Classroom video distribution, commercial
and home audio/video systems, hospital video training, video conferencing, and video
kiosks.
Installation
One (1) pair of baluns is needed to complete one composite stereo audio-video
connection via Cat 5E/6 twisted pair. To install the baluns, perform the following steps:
1. Identify the pin configuration of the baluns. Two (2) twisted
pairs are required for S-Video and two (2) twisted pairs are
required for stereo analog audio. The pin configuration
follows the EIA/TIA 568A/B standard. The Stereo Hi-Fi
Video Wall Balun is reverse polarity sensitive. Please ensure
that wiring is straight through (Ring to Ring, Tip to Tip).
