MuxLab 500755-AMP-TX Quick Installation Manual

Specifications

2CH analog audio distribution over multiple zones via an IP network
Environment
Devices 2CH audio source equipment, microphone systems, speakers, PA systems.
Input Level -10 dBu for line level RCA and 3.5mm connectors,
-50 to -10 dBu for microphone,
Microphone: Ceramic, Dynamic, Electret with combined or separate bias.
Bias: 6V (for consumer Electret).
20 – 20,000 Hz (+/- 1 dB)
Frequency response
LCD Display 2 line x 20 character backlit LCD display
Control Local control from front push/turn knob and LCD display, and remote control via web
interface and 500811 controller. Supports a recessed front soft reset button.
LCD DISPLAY 2 x 20 character
Front Display
2 LEDs: IP status and Power
Connectors Two (2) RCA receptacles for L+R source input.
One (1) 3.5mm stereo audio jack for source input.
One (1) 3.5mm IR for IR Sensor or IR Emitter (port is directional).
One (1) RJ45 connector for Ethernet connection to a 1Gig Ethernet Switch.
One (1) locking power coaxial jack, 2.0x5mm.
One (1) three pin terminal block connector for Mic In.
One (1) male DB9 for RS232.
IR Frequency Directional IR: 38KHz to 56KHz
Cable One (1) Cat 5e/6 or better twisted pair cables required.
Maximum Distance Cat5e/6: 330ft (100m)
Note: When installed in an electrically noisy environment, an STP cable must be used.
Also, cross-connections in the signal path reduce the effective distance depending on the
grade of cable used.
RJ45 Pin Configuration RJ45 Link
Pin 1 (R) Pin 2 (T)
Reverse Polarity Sensitive.
Pin 3 (R) Pin 6 (T)
Use EIA/TIA 568A or 586B
Pin 4 (R) Pin 5 (T)
straight-through wiring.
Pin 7 (R) Pin 8 (T)
Power requirement 3W via PoE or external 5V, 1A adapter (PS not included).
Temperature Operating : 32° to 90°F (0° to 40°C)
Storage: -4° to 185°F (-20° to 85°C)
Humidity Maximum 90% (non-condensing)
Enclosure Steel, painted black.
4.33" x 4.76" x 1.97" (11 x 12.1 x 5 cm)
Dimensions
Weight 1.20 lb. (0.55 kg)
Warranty 3 Years
500755-AMP-US

Ordering Information

500755-AMP-UK Audio/AMP over IP Extender Kit, with Mic & AMP 50W/CH, UK
500755-AMP-EU
500755-AMP-TX
500755-AMP-RX-US Audio/AMP over IP Receiver, with AMP 50W/CH, US
500755-AMP-RX-UK Audio/AMP over IP Receiver, with AMP 50W/CH, UK
500755-AMP-RX-EU Audio/AMP over IP Receiver, with AMP 50W/CH, EU

Compatible Products

500755, 500755-AMP-RX, 500755-70V, and other MuxLab AV over IP devices.

Accessories

500755-70V 70V Audio Converter
500917 Wall Mount Transceiver Bracket Kit
500920 16-Port Rackmount Transceiver Chassis
500993 Univ. Locking Power Supply 5VDC/2.6A US/UK/EU Blade
500994 IR Sensor
500998 IR Emitter
© MuxLab Inc.
Audio/AMP over IP Extender Kit, with Mic & AMP 50W/CH, US
Audio/AMP over IP Extender Kit, with Mic & AMP 50W/CH, EU
Audio/AMP over IP Transmitter, with Mic, US
94-000844-A
Audio/AMP over IP Transmitter, with Mic
500755-AMP-TX
Quick Installation Guide

Overview

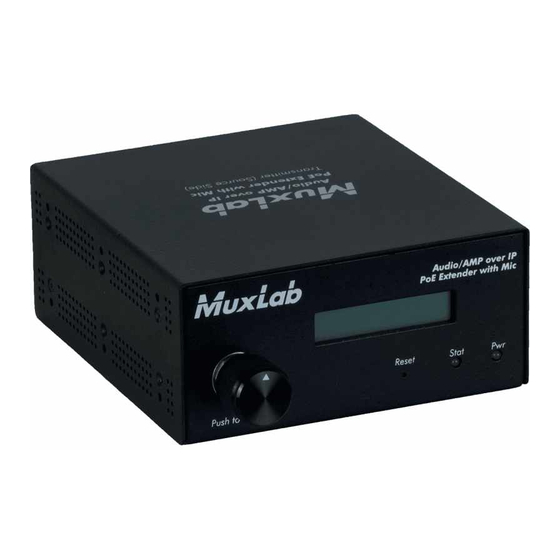

The AUDIO/AMP over IP Transmitter, with Mic allows 2CH audio signals to be extended up
to 330ft (100m) via one (1) Cat5e/6 UTP cable in a point-to-point configuration. Point-to-
multipoint and multipoint-to-multipoint is possible by connecting several Transmitters and/or
Receivers to the same local Ethernet network. The Transmitter supports PoE (PD) if used
with a PoE (PSE) Ethernet Switch. These units support RS232 and IR transmission for
remote control of end devices. IR emitters and sensors are not included, but may be
purchased separately if required.
For the point-to-multipoint and multipoint-to-multipoint configuration the Ethernet Switch
must have Gigabit ports and DHCP Server capability and additionally support the IGMP
communication protocol for the multipoint-to-multipoint case. MuxLab recommends using
the Cisco SG300 Series Managed Switches. The MuxLab ProDigital Network Controller
(500811) is available to simplify the configuration and utilization of the 500755-AMP and
other MuxLab IP based products via an Ethernet web interface.

Main Application

Audio Distribution Systems
