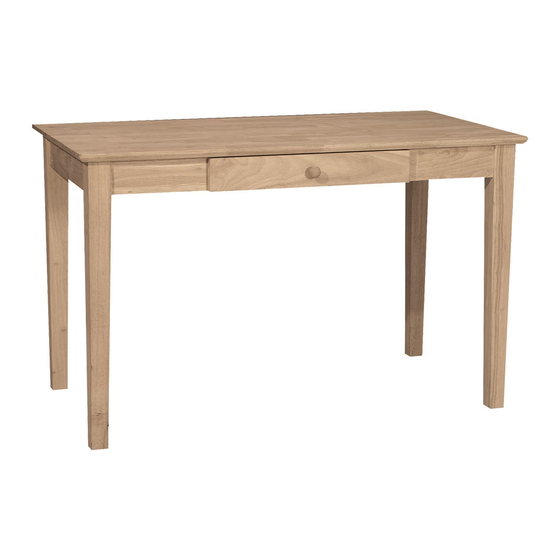

- Page 1 ASSEMBLY INSTRUCTIONS Description : STUDENT DESK Item No. : OF-41 ITEM NO.: OF-41 Printed in Vietnam REVISED FEB 29, 2016 - 1 -...
- Page 2 Protect the surface of the table with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: OF-41 Printed in Vietnam REVISED FEB 29, 2016 - 2 -...
- Page 3 (M13mm) Flat Washer Wooden knob (ɸ8.5x19mm) (ɸ35x30mm) Pan head screw Lock Washer *Metal knob: (M4x22mm) (ɸ8.5x13mm) *Wooden knob: (M4x25mm) METAL KNOB (30x30mm) GOES WITH FINISHED ITEM ONLY. ITEM NO.: OF-41 Printed in Vietnam REVISED FEB 29, 2016 - 3 -...
- Page 4 Tighten with the wrench (4). STEP 2 Attach the knob (5) to the front of drawer with the screw (6) as shown below. Tighten with a screwdriver. ITEM NO.: OF-41 Printed in Vietnam REVISED FEB 29, 2016 - 4 -...
