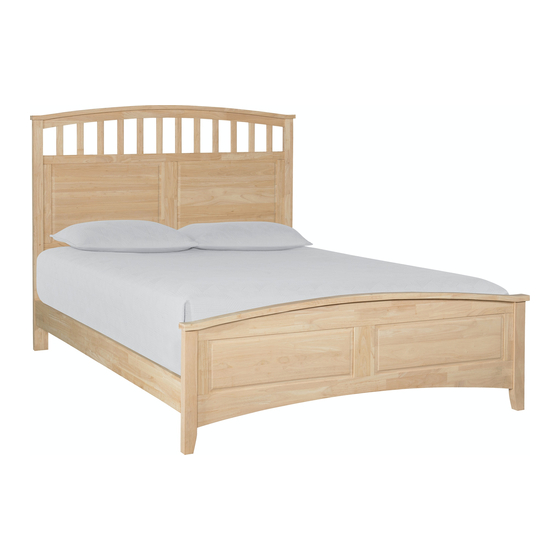

- Page 1 ASSEMBLY INSTRUCTIONS BD-504FR AND BD-504FH AND BD-504FF BD-504FR AND BD-702FH AND BD-702FF BD-504FR AND BD-201FH AND BD-201FF BD-504FR AND BD-703FH AND BD-703FF Description FULL RAILS Item No : BD-504FR ITEM NO. : BD-504FR Printed in Vietnam REVISED JUN 30, 2016...
- Page 2 Remove all wrapping material, including staples & packing straps before you start to assemble. DO NOT tighten all screws and bolts until completely assembled. Keep all hardware parts out of reach of children. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO. : BD-504FR Printed in Vietnam REVISED JUN 30, 2016 - 2 -...
- Page 3 When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch BD-201FH BD-201FF (packed in (packed in separate separate carton) carton) ITEM NO. : BD-504FR Printed in Vietnam REVISED JUN 30, 2016 - 3 -...
- Page 4 Description Sketch Description Sketch Wood screw Allen key (M4x35mm) (M4 x30mm x 120mm) NOTE: HARDWARE IS PACKED IN CARTON BD-504FR ITEM NO. : BD-504FR Printed in Vietnam REVISED JUN 30, 2016 - 4 -...
- Page 5 STEP 2 Attach side rails (C) to headboard (A) and footboard (B) with bolts and washers (from step 1) as shown below. Tighten with Allen key (2). ITEM NO. : BD-504FR Printed in Vietnam REVISED JUN 30, 2016 - 5 -...
- Page 6 Attach support legs (E) to slats (D) with screws (1), as shown below. Tighten with a screwdriver. Attach slats (D) to side rails (C) with screws (1), as shown below. Tighten with a screwdriver. ITEM NO. : BD-504FR Printed in Vietnam...
