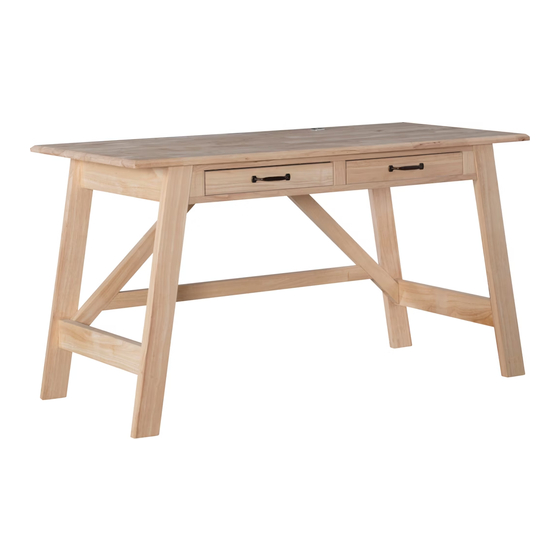

- Page 1 ASSEMBLY INSTRUCTIONS Description SERENDIPITY DESK Item No. : OF-69 ITEM NO.: OF-69 Printed in Vietnam REVISED MAR 15, 2021 - 1 -...
-
Page 2: Before Assembly
Protect the surface of the table with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: OF-69 Printed in Vietnam REVISED MAR 15, 2021 - 2 -... -
Page 3: Part List
Long Bolt Pan head screw (M8 x 45mm) (M4 x 20mm) Large Lock Washer USB charger (ɸ8.5 x 13mm) Large Flat Washer Power Adapter (ɸ8.5 x 19mm) ITEM NO.: OF-69 Printed in Vietnam REVISED MAR 15, 2021 - 3 -... - Page 4 Attach support bars (C) to top (A) and side frames (B) with bolts (4), and washers (5) and (6) as shown below. Tighten with Allen key (7). Insert crossbar (D) into support bars (C) as shown below and attach with screws (8). Tighten with a screwdriver. ITEM NO.: OF-69 Printed in Vietnam REVISED MAR 15, 2021 - 4 -...
- Page 5 Attach handles (9) to front of drawers with pan head screws (10) as shown below. Tighten with a screwdriver. STEP 4 Insert USB charger (11) into the top (A), as shown below. ITEM NO.: OF-69 Printed in Vietnam REVISED MAR 15, 2021 - 5 -...
- Page 6 STEP 5 Plug the power adapter (12) into cable of the USB charger (11) inside the top, as shown below. ITEM NO.: OF-69 Printed in Vietnam REVISED MAR 15, 2021 - 6 -...
