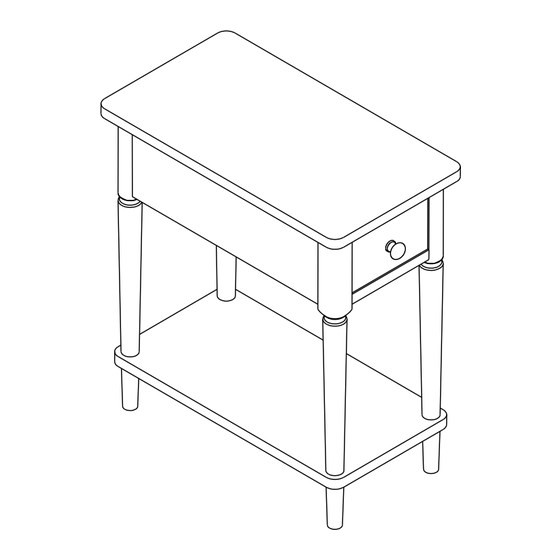

- Page 1 ASSEMBLY INSTRUCTIONS : NARROW SIDE TABLE Description : OT-1222 Item No. ITEM NO.: OT-1222 Printed in Vietnam ISSUED DEC 04, 2023 - 1 -...
-
Page 2: Before Assembly
Protect the surface of the table with cloth if you are using any product with rubber feet or base. ASSEMBLY TOOLS REQUIRED NOT INCLUDED ITEM NO.: OT-1222 Printed in Vietnam ISSUED DEC 04, 2023 - 2 -... -
Page 3: Part List
(35 x 35mm) (M4 x 25mm) Bolt Flat Washer (M6 x 50mm) (6.5 x 19mm) Lock Washer Allen Key (6.5 x 13mm) (M4 x 30mm x 110mm) ITEM NO.: OT-1222 Printed in Vietnam ISSUED DEC 04, 2023 - 3 -... - Page 4 Loosen the bolt under the top (A) and take out the drawer as shown below. STEP 2 Attach legs (B) to top (A) with bolts (3), and washers (4) and (5) as shown below. Tighten with Allen key (6). ITEM NO.: OT-1222 Printed in Vietnam ISSUED DEC 04, 2023 - 4 -...
- Page 5 Install the drawer into top (A) and tighten the bolt (from step1) as shown below. STEP 4 Put bottom shelf (C) on legs (B) as shown below and attach legs (D) by screwing them into legs (B). ITEM NO.: OT-1222 Printed in Vietnam ISSUED DEC 04, 2023...
- Page 6 STEP 5 Attach knob (1) to front of drawer with pan head screw (2) as shown below. Tighten with a screwdriver. ITEM NO.: OT-1222 Printed in Vietnam ISSUED DEC 04, 2023 - 6 -...
